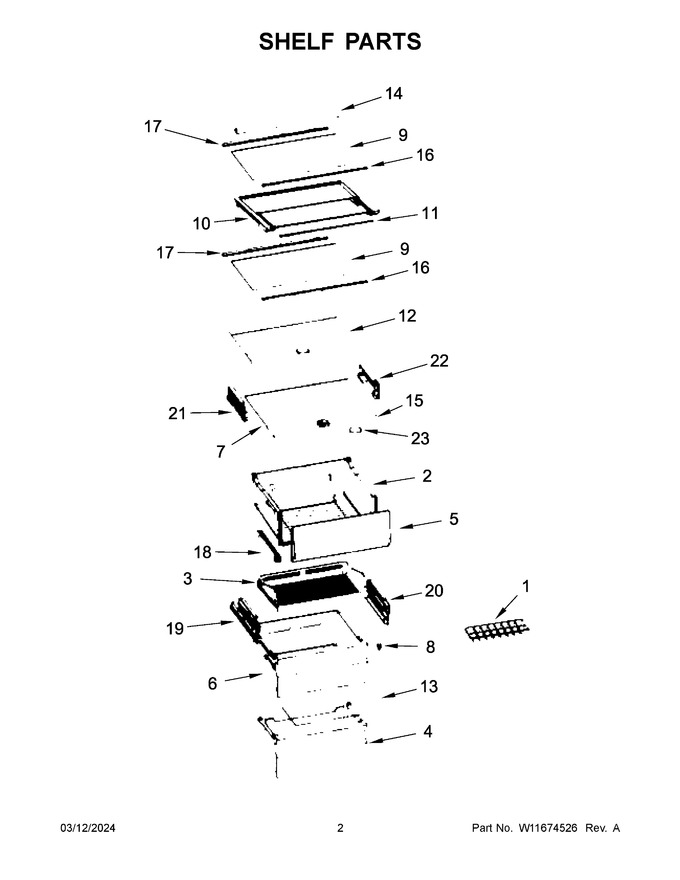

Shelf Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11676128		Tray, Ice   (Replaces: W11641634)		Appelez-nous	-
2	W11676131		Pan, Crisper   (Replaces: W11481060)				$ 109.74
3	W11676135		Tray, Freezer   (Replaces: W11425557)		Appelez-nous	-
4	W11675847		Bin, Freezer   (Replaces: W11579252)		Appelez-nous	-
5	W11675853		Front, Drawer   (Replaces: W11579259)		Appelez-nous	-
6	W11675854		Drawer, Freezer   (Replaces: W11579248)		Appelez-nous	-
7	W11675855		Shelf Assembly, Glass   (Replaces: W11399049)		Appelez-nous	-
8	W11683459		Bumper   (Replaces: W11418435)		Appelez-nous	-
9	W11675860		Assembly, Shelf   (Replaces: W11399136)		Appelez-nous	-
10	W11676149		Assembly, Tuck Shelf   (Replaces: W11443009)		Appelez-nous	-
11	W11676140		Trim, Shelf   (Replaces: W11432131)		Appelez-nous	-
12	W11399066		Assembly, Glass Shelf		Appelez-nous	-
13	W11676141		Glass Shelf, Freezer   (Replaces: W11361905)		Appelez-nous	-
14	W11676359		Holder, Bottle   (Replaces: W11288004)				$ 300.17
15	W11676361		Panel, Humidity Control   (Replaces: W11568965)		Appelez-nous	-
16	W11676446		Trim, Shelf   (Replaces: W11331458)		Appelez-nous	-
17	W11676447		Rear, Trim Shelf   (Replaces: W11351049)				$ 81.48
18	W11682526		Metal, Rail   (Replaces: W11384906)		Appelez-nous	-
19	W11678795		Slider, Drawer (left Hand)   (Replaces: W11381134)		Appelez-nous	-
20	W11678796		Slider, Drawer (right Hand)   (Replaces: W11378141)		Appelez-nous	-
21	W11683456		Slider, Drawer (left Hand)   (Replaces: W11385159)		Appelez-nous	-
22	W11683457		Slider, Drawer (right Hand)   (Replaces: W11385158)		Appelez-nous	-
23	W11683458		Knob, Humidity   (Replaces: W11488298)		Appelez-nous	-
