View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Shelf Parts
03 - Cabinet And Unit Parts
04 - Door Parts

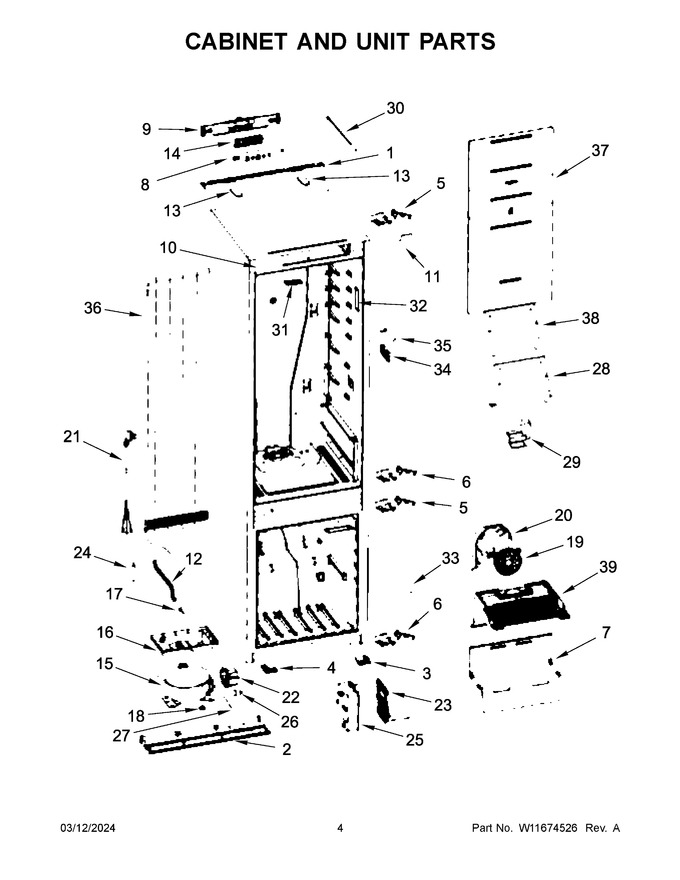

Cabinet And Unit Parts
Door Parts
Shelf Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11683460 | Trim (Replaces: W10788628) |
|
Immediately | $ 55.57 | ||||
| 2 | W11361031 | Mounting Plate, Compressor |
|
- | |||||
| 3 | W10642999 | Foot, Left Hand |
|
$ 29.15 | |||||
| 4 | W10642997 | Food, Right Hand |
|
$ 28.95 | |||||
| 5 | W11443325 | Hinge, Top |
|
$ 114.65 | |||||
| 6 | W11720847 | Hinge, Bottom (Replaces: W11443328) |
|
$ 120.20 | |||||
| 7 | W11720840 | Diffuser, Air (Replaces: W11332618) |
|
- | |||||
| 8 | W11676507 | Overlay (Replaces: W11584092) |
|
Immediately | $ 71.46 | ||||
| 9 | W11676509 | Support, Control (Replaces: W11554777) |
|
$ 149.81 | |||||
| 10 | W11676517 | Cover, Ui (Replaces: W11378677) |
|
$ 20.30 | |||||
| 11 | W11676518 | Plug, Control Panel (right Hand) (Replaces: W11378679) |
|
- | |||||
| 12 | W11676844 | Tube, Drainage (Replaces: W11357111) |
|
- | |||||
| 13 | W11726267 | Cover, Upper (Replaces: W11604558) |
|
- | |||||
| 14 | W11681904 | Control, Electronic |
|
Immediately | $ 459.27 | ||||
| 15 | W11676523 | Compressor (Replaces: W11439576) |
|
Immediately | $ 454.91 | ||||
| 16 | W11676545 | Tray, Evaporator (Replaces: W11430825) |
|
$ 54.17 | |||||
| 17 | W11676549 | Cap, Drain (Replaces: W10851213) |
|
- | |||||
| 18 | W11726269 | Grommet (Replaces: W11677422) |
|
- | |||||
| 19 | W11676558 | Assembly, Fan (Replaces: W11226404) |
|
Immediately | $ 271.37 | ||||
| 20 | W11342724 | Cover, Fan |
|
- | |||||
| 21 | W11676561 | Cord, Power (Replaces: W11565946) |
|
$ 129.91 | |||||
| 22 | W11676562 | Cover (Replaces: W11476092) |
|
- | |||||
| 23 | W11681906 | Control, Electronic |
|
Immediately | $ 345.92 | ||||
| 24 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 25 | W11676784 | Cover, Electronic Control (Replaces: W11531335) |
|
- | |||||
| 26 | W11676785 | Protector, Overload (Replaces: W11566075) |
|
$ 52.90 | |||||
| 27 | W11676786 | Relief, Cord (Replaces: W11476322) |
|
- | |||||
| 28 | W11676787 | Damper (Replaces: W10957431) |
|
$ 76.66 | |||||
| 29 | W11676789 | Gasket, Damper (Replaces: W11391854) |
|
$ 23.74 | |||||
| 30 | W11676793 | Cover, Switch (Replaces: W10711701) |
|
$ 52.68 | |||||
| 31 | W11676831 | Assembly, Led (Replaces: W11500501) |
|
$ 158.15 | |||||
| 32 | W11676836 | Assembly, Led (Replaces: W11113966) |
|
$ 66.37 | |||||
| 33 | W11684992 | Support, Sensor (Replaces: W11677716) |
|
Immediately | $ 20.43 | ||||
| 34 | W11676838 | Cover, Sensor (Replaces: W10556073) |
|
- | |||||
| 35 | W11747507 | Sensor, Ambient (Replaces: W11677717) |
|
$ 88.63 | |||||
| 36 | W11675693 | Condenser (Replaces: W11135268) |
|
- | |||||
| 37 | W11676839 | Assembly, Muliflow (Replaces: W11579279) |
|
- | |||||
| 38 | W11676840 | Cover, Multiflow (Replaces: W11341920) |
|
Immediately | $ 109.27 | ||||
| 39 | W11726271 | Assembly, Evaporator (Replaces: W11579287) |
|
Immediately | $ 495.70 | ||||
| 11A | W11676520 | Plug, Control Panel (left Hand) (Replaces: W11378678) |
|
- | |||||
| NI | ARI325FF23E6A67BFCE250E698D70674E0F | Refrigerant Charge 34 Grams (r600a) |
|
- |
