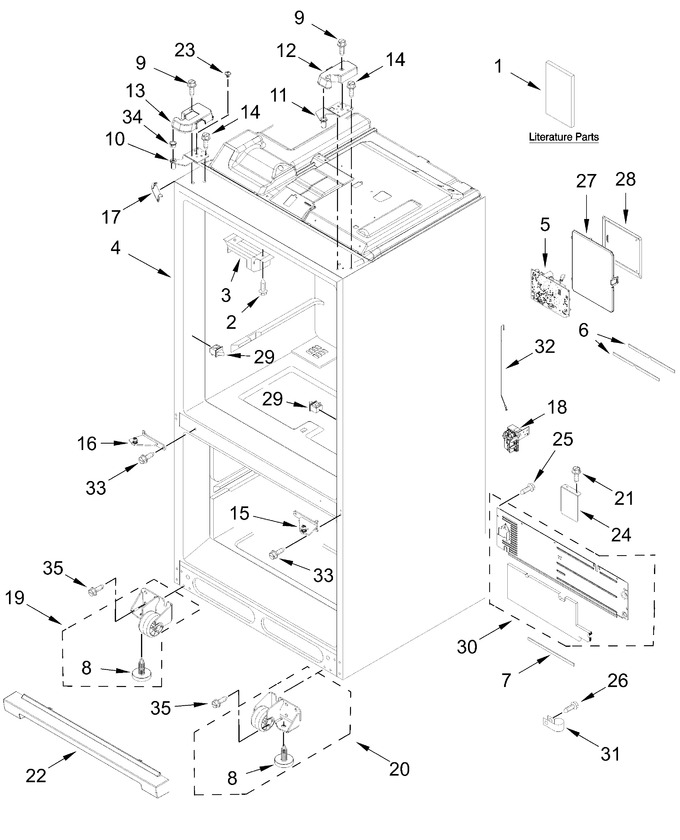

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
ARI4741983F61CAC445F12C0C1FD1B613C1 |
|
Literature Parts |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10854958 |
|
Screw (Replaces: 12990302) |
|
|
|
$ 7.11 |
|
|
| 3 |
WPW10344432 |
|
Block, Pivot (Replaces: W10344432) |
|
|
Immediately |
$ 17.24 |
|
|
| 4 |
ARI2948F547D7C4C1B6CA0878B04EDFC4EF |
|
Cabinet (not A Servicable Part) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W11756839 |
|
Board, Control (Replaces: W11724451) |
|
|
Immediately |
$ 381.70 |
|
|
| 6 |
W10415341 |
|
Gasket, Hv Box |
|
|
|
$ 33.30 |
|
|
| 7 |
W11534848 |
|
Gasket, Unit Cover |
|
|
Immediately |
$ 20.11 |
|
|
| 8 |
WPW10141622 |
 |
Brake, Roller (Replaces: W10141622) |
|
|
Immediately |
$ 7.42 |
|
|
| 9 |
WP8281196 |
 |
Screw (Replaces: 12992602) |
|
|
Immediately |
$ 6.80 |
|
|
| 10 |
W11592405 |
|
Hinge, Top (left Hand) (Replaces: W11456644) |
|
|
|
$ 29.08 |
|
|
| 11 |
W11592404 |
|
Hinge, Top (right Hand) (Replaces: W11456643) |
|
|
|
$ 23.31 |
|
|
| 12 |
WPW10407158 |
|
Cover, Top Hinge (grey, Right Hand) (Replaces: W10407158) |
|
|
|
$ 20.68 |
|
|
| 13 |
WPW10471618 |
|
Cover, Top Hinge (grey, Left Hand) (Replaces: W10471618) |
|
|
|
$ 22.74 |
|
|
| 14 |
W11126052 |
|
Screw (Replaces: W10731474) |
|
|
Immediately |
$ 13.26 |
|
|
| 15 |
W11240748 |
|
Hinge, Center (grey, Right Hand) (Replaces: W10248703) |
|
|
|
$ 70.84 |
|
|
| 16 |
W10878115 |
|
Hinge, Center (grey, Left Hand) (Replaces: W10248706) |
|
|
Immediately |
$ 69.17 |
|
|
| 17 |
WP12587703AP |
|
Cover, Corner (grey) (Replaces: 12587703AP) |
|
|
|
$ 7.26 |
|
|
| 18 |
W11482025 |
|
Valve, Water (Replaces: W11460084) |
|
|
Immediately |
$ 271.67 |
|
|
| 19 |
W11820444 |
|
Roller Assembly (left Hand) (Replaces: W10515763) |
|
|
Immediately |
$ 33.62 |
|
|
| 20 |
W11820445 |
|
Roller Assembly (right Hand) (Replaces: W10515762) |
|
|
Immediately |
$ 33.62 |
|
|
| 21 |
W11686675 |
|
Screw (Replaces: 12990702) |
|
|
|
$ 12.84 |
|
|
| 22 |
WPW10637671 |
 |
Grille, Toe (grey) (Replaces: W10637671) |
|
|
Immediately |
$ 129.11 |
|
|
| 23 |
W11214483 |
 |
Screw (Replaces: 12992601) |
|
|
Immediately |
$ 13.25 |
|
|
| 24 |
W10336736 |
|
Cover, Roller (Replaces: W11578005) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
WPW10141645 |
|
Screw (Replaces: W10141645) |
|
|
|
$ 7.25 |
|
|
| 26 |
67006425 |
 |
Screw (Replaces: 12990511) |
|
|
Immediately |
$ 6.57 |
|
|
| 27 |
W10768379 |
|
Lid, Hv |
|
|
|
$ 75.24 |
|
|
| 28 |
W10754144 |
|
Cover, Control Box |
|
|
|
$ 77.54 |
|
|
| 29 |
W11396033 |
 |
Switch, Light (Replaces: W10847849) |
|
|
Immediately |
$ 33.57 |
|
|
| 30 |
W11482027 |
|
Cover, Unit (Replaces: W11364644) |
|
|
Immediately |
$ 109.22 |
|
|
| 31 |
W11456069 |
|
Clamp, Tube (Replaces: M0108107) |
|
|
Immediately |
$ 20.16 |
|
|
| 32 |
W11482381 |
 |
Tube, Water (Replaces: W11296599) |
|
|
Immediately |
$ 101.12 |
|
|
| 33 |
W11573362 |
|
Screw (stainless) (Replaces: W10673840) |
|
|
|
$ 13.25 |
|
|
| 34 |
W10212137 |
|
Retainer, Door |
|
|
|
$ 12.32 |
|
|
| 35 |
67006564 |
 |
Screw (Replaces: W10709365) |
|
|
Immediately |
$ 7.34 |
|
|
|
ARIB76A2A7BC8719117191163EF8A421B21 |
|
(includes Foil) |
|
Appelez-nous
|
- |
|
|
|
|
W11502338 |
|
Owners Manual |
|
Appelez-nous
|
- |
|
|
|
|
W11756451 |
|
Tech Sheet |
|
Appelez-nous
|
- |
|
|
|
|
W11647506 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
View Diagram in Separate Window
Print Part List
