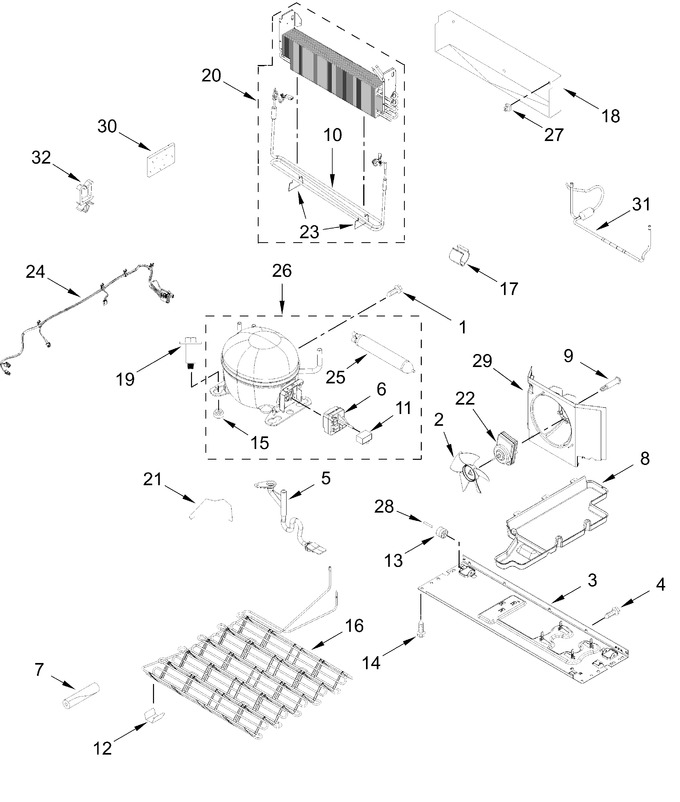

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WPW10141625 |
|
Screw (Replaces: W10141625) |
|
|
|
$ 22.22 |
|
|
| 2 |
WP2188935 |
 |
Blade, Fan (Replaces: 2188935) |
|
|
Immediately |
$ 97.29 |
|
|
| 3 |
W11411853 |
|
Baseplate, Compressor |
|
Appelez-nous
|
- |
|
|
|
| 4 |
67006425 |
 |
Screw (Replaces: 12990511) |
|
|
Immediately |
$ 7.30 |
|
|
| 5 |
W11712703 |
|
Extension, Drain (Replaces: W11497478) |
|
|
|
$ 44.85 |
|
|
| 6 |
WPW10197428 |
 |
Device, Combination Start (start Relay And Overload) (Replaces: W10197428) |
|
|
Immediately |
$ 89.21 |
|
|
| 7 |
W11751592 |
|
Sleeve (Replaces: W10303521) |
|
|
Immediately |
$ 21.32 |
|
|
| 8 |
W11225840 |
|
Tray, Evaporator (Replaces: W10660727) |
|
|
Immediately |
$ 158.27 |
|
|
| 9 |
W10829281 |
|
Screw (Replaces: W10622701) |
|
|
|
$ 13.28 |
|
|
| 10 |
W11575359 |
|
Heater, Defrost (Replaces: W11553968) |
|
|
|
$ 119.70 |
|
|
| 11 |
WPW10350564 |
 |
Capacitor (Replaces: W10350564) |
|
|
Immediately |
$ 99.49 |
|
|
| 12 |
W10683556 |
 |
Clip, Condenser (Replaces: W10248621) |
|
|
|
$ 19.38 |
|
|
| 13 |
12477102 |
|
Roller, Rear |
|
|
Immediately |
$ 7.38 |
|
|
| 14 |
12992101 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 15 |
WPW10169124 |
|
Grommet, Compressor (Replaces: 10835903) |
|
|
|
$ 7.55 |
|
|
| 16 |
W11411956 |
|
Condenser |
|
|
|
$ 228.72 |
|
|
| 17 |
W10281329 |
|
Clip, Drier |
|
|
|
$ 13.73 |
|
|
| 18 |
W11408656 |
|
Tray, Drip |
|
|
|
$ 45.58 |
|
|
| 19 |
W11417341 |
|
Screw |
|
|
|
$ 14.07 |
|
|
| 20 |
W11598434 |
|
Evaporator And Heater Assembly (Replaces: W11394387) |
|
|
|
$ 335.66 |
|
|
| 21 |
W11661170 |
 |
Strap, Bale (Replaces: W10174384) |
|
|
Immediately |
$ 11.87 |
|
|
| 22 |
W11127829 |
 |
Motor, Condenser Fan (Replaces: W11505535) |
|
|
Immediately |
$ 226.58 |
|
|
| 23 |
W11380964 |
|
Clip, Heater |
|
|
|
$ 18.53 |
|
|
| 24 |
W11614808 |
|
Harness, Unit (includes Power Cord) (Replaces: W11306948) |
|
|
Immediately |
$ 117.66 |
|
|
| 25 |
W11109499 |
 |
Drier (service Drier Without Dye) (Replaces: W10805035) |
|
|
Immediately |
$ 39.12 |
|
|
| 26 |
W11727250 |
|
Compressor (Replaces: W11682292) |
|
|
Immediately |
$ 1,043.72 |
|
|
| 27 |
10623002 |
|
Clip, Evaporator |
|
|
|
$ 12.11 |
|
|
| 28 |
67006434 |
 |
Axle, Roller (Replaces: 12477202) |
|
|
Immediately |
$ 7.90 |
|
|
| 29 |
WPW10406719 |
|
Shroud, Condenser Fan (Replaces: W10406719) |
|
|
|
$ 82.24 |
|
|
| 30 |
W11553819 |
 |
Insulation, Sound Deadening (Replaces: 2169104) |
|
|
Immediately |
$ 14.77 |
|
|
| 31 |
W11578047 |
|
Tube, Suction (Replaces: W11323444) |
|
|
|
$ 57.99 |
|
|
| 32 |
W11233642 |
|
Clip (Replaces: 2223913) |
|
Appelez-nous
|
- |
|
|
|
|
ARI4B5A5A3E5B4FFC53324A9CF202B1EBC5 |
|
56 Grams (r600a) |
|
Appelez-nous
|
- |
|
|
|
|
ARIA203FEA88A0C0545C484B4E1C20B771B |
|
Refrigerant Charge |
|
Appelez-nous
|
- |
|
|
|
|
ARI9B437A9AB478C7E2DEB1C4CC29D600EE |
|
(capillary Tube To Evaporator) |
|
Appelez-nous
|
- |
|
|
|
|
W11504450 |
|
4/1.8 Nr Ms 00 |
|
|
Immediately |
$ 46.52 |
|
|
|
ARI01A2781A3F964B0DAEAA0FEA5F13BC43 |
|
(suction Line To Evaporator) |
|
Appelez-nous
|
- |
|
|
|
|
W11506620 |
|
8 Nk Al 00 |
|
|
Immediately |
$ 32.10 |
|
|
|
ARIFE05854D4243D957FF7DF90F52C3AE38 |
|
(compressor To Condenser) |
|
Appelez-nous
|
- |
|
|
|
|
W11504431 |
 |
7/5 Nr Ms 00 |
|
|
Immediately |
$ 27.13 |
|
|
|
ARI7EAC8134DAB8FF5AAAE27020D6EE8424 |
|
(heat Loop To Condenser) |
|
Appelez-nous
|
- |
|
|
|
|
W11504445 |
 |
5/4 Nr Ms 00 |
|
|
Immediately |
$ 28.92 |
|
|
|
ARI500F2B538D318C1E3390E0716ECE69B7 |
|
(also Order The Following Lokring⢠Parts) |
|
Appelez-nous
|
- |
|
|
|
|
W11506635 |
 |
Tube, Charging (1/4 In, Includes Schrader Valve) |
|
|
Immediately |
$ 37.03 |
|
|
|
ARI169C38591D7F4AD8FB3D43FAEA44FC75 |
|
(charging Tube To Compressor) |
|
Appelez-nous
|
- |
|
|
|
|
W11506621 |
 |
6 Nk Ms 00 |
|
|
Immediately |
$ 22.00 |
|
|
|
ARI169E995E2DAC0D79856EDDCD3C362715 |
|
(suction Tube To Compressor) |
|
Appelez-nous
|
- |
|
|
|
|
W11504415 |
 |
8.5/8 Nr Ms 00 |
|
|
Immediately |
$ 25.89 |
|
|
|
ARI5DD2AEE280966FBC792DC043E4E4B750 |
|
(capillary Tube To Drier) |
|
Appelez-nous
|
- |
|
|
|
|
W11504447 |
 |
5/1.8 Nr Ms 00 |
|
|
Immediately |
$ 43.90 |
|
|
|
ARI365422773BD6741F2B56A197441A318E |
|
(heat Loop To Drier) |
|
Appelez-nous
|
- |
|
|
|
