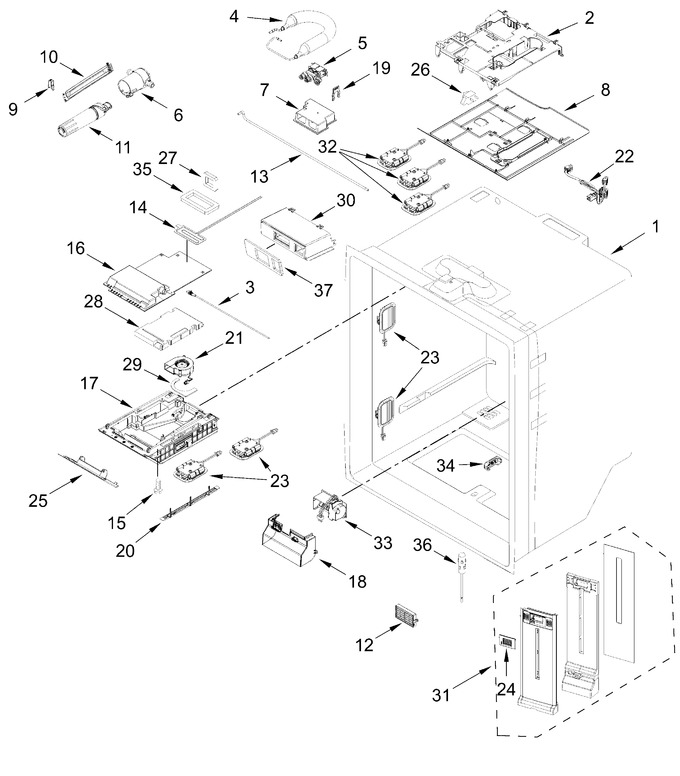

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
ARI1BA464D72C84DA7297AB1B09D16F5BB3 |
|
Liner (not A Serviceable Part) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11482035 |
|
Housing, Water System (Replaces: W11281629) |
|
|
|
$ 103.37 |
|
|
| 3 |
W11686799 |
|
Tube, Fill (Replaces: W11613057) |
|
|
Immediately |
$ 118.24 |
|
|
| 4 |
W11482382 |
 |
Reservoir, Water (also Order Wire Tie Part 8567668) (Replaces: W11296598) |
|
|
Immediately |
$ 154.12 |
|
|
| 5 |
W11803379 |
|
Valve, Dual Water (Replaces: W11255718) |
|
|
Immediately |
$ 172.38 |
|
|
| 6 |
W11482384 |
|
Housing, Water Filter (Replaces: W11293954) |
|
|
Immediately |
$ 108.97 |
|
|
| 7 |
W11391457 |
|
Enclosure, Water Valve |
|
|
|
$ 54.77 |
|
|
| 8 |
W11190820 |
|
Cover, Waterbox (Replaces: W10669663) |
|
|
|
$ 115.73 |
|
|
| 9 |
WP2223877 |
 |
Latch, Push (Replaces: 2223877) |
|
|
|
$ 120.84 |
|
|
| 10 |
WPW10277949 |
 |
Door, Filter Access (Replaces: W10277949) |
|
|
|
$ 100.91 |
|
|
| 11 |
EDR2RXD1B |
 |
Filter, Water (Replaces: W10680605) |
|
|
Immediately |
$ 49.99 |
|
|
| 12 |
W10311524 |
 |
Filter, Air (Replaces: W10315189) |
|
|
Immediately |
$ 14.34 |
|
|
| 13 |
W11686800 |
|
Waterline, Valve To Hinge (Replaces: W11658811) |
|
|
|
$ 88.45 |
|
|
| 14 |
W11087201 |
 |
Heater, Fill Tube (Replaces: W10706850) |
|
|
Immediately |
$ 141.36 |
|
|
| 15 |
WP67006908 |
 |
Screw (Replaces: 12990518) |
|
|
Immediately |
$ 8.78 |
|
|
| 16 |
WPW10598013 |
 |
Cover, Icebox (Replaces: W10598013) |
|
|
Immediately |
$ 157.86 |
|
|
| 17 |
W11605504 |
|
Icebox Assembly, Foamed (Replaces: W11547436) |
|
|
|
$ 309.07 |
|
|
| 18 |
W11695756 |
|
Cover, Damper (Replaces: W10530312) |
|
|
Immediately |
$ 55.21 |
|
|
| 19 |
W11678575 |
|
Locking Ring (5/16) (Replaces: W11175631) |
|
|
|
$ 14.90 |
|
|
| 20 |
W10505516 |
|
Trim, Icebox |
|
|
|
$ 35.20 |
|
|
| 21 |
W10846539 |
 |
Fan, Icebox (Replaces: W10833801) |
|
|
Immediately |
$ 328.41 |
|
|
| 22 |
W11369503 |
|
Wire Assembly, Jumper |
|
|
|
$ 72.29 |
|
|
| 23 |
W11483116 |
 |
Light Module, Led (Replaces: W11228040) |
|
|
Immediately |
$ 21.81 |
|
|
| 24 |
W11228023 |
|
Cover, Air Diffuser (Replaces: W11125218) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
W11637688 |
 |
Fascia And Heater Assembly, Icebox (Replaces: W11504346) |
|
|
Immediately |
$ 113.56 |
|
|
| 26 |
W11384469 |
 |
Switch, Rocker (Replaces: W10847853) |
|
|
Immediately |
$ 39.09 |
|
|
| 27 |
WPW10320706 |
 |
Gasket, Rear Return (Replaces: W10320706) |
|
|
Immediately |
$ 27.86 |
|
|
| 28 |
WPW10280983 |
|
Insulation (Replaces: W10280983) |
|
|
Immediately |
$ 94.25 |
|
|
| 29 |
WPW10392172 |
 |
Gasket, Fan (Replaces: W10392172) |
|
|
Immediately |
$ 27.77 |
|
|
| 30 |
WPW10635022 |
 |
Adapter, Icebox (Replaces: W10635022) |
|
|
Immediately |
$ 107.57 |
|
|
| 31 |
W11673289 |
|
Tower Assembly, Air (Replaces: W11373777) |
|
|
Immediately |
$ 220.53 |
|
|
| 32 |
W11484840 |
|
Harness, Led Wire (includes Led Lights) (Replaces: W11234027) |
|
|
Immediately |
$ 123.57 |
|
|
| 33 |
WPW10479155 |
 |
Damper, Control (Replaces: W10479155) |
|
|
Immediately |
$ 124.44 |
|
|
| 34 |
W11238397 |
|
Cover, Thermistor (Replaces: W10438957) |
|
|
Immediately |
$ 23.33 |
|
|
| 35 |
WPW10280988 |
 |
Gasket, Rear Supply (Replaces: W10280988) |
|
|
Immediately |
$ 8.17 |
|
|
| 36 |
W11724692 |
|
Thermistor (Replaces: W10280385) |
|
|
Immediately |
$ 33.60 |
|
|
| 37 |
W11747986 |
|
Gasket, Adapter (Replaces: W11672619) |
|
Appelez-nous
|
- |
|
|
|
|
W11298842 |
|
Wire Assembly, Ice Box |
|
|
Immediately |
$ 137.06 |
|
|
|
W11483123 |
|
Harness, Dual Valve (Replaces: W11306925) |
|
Appelez-nous
|
- |
|
|
|
|
ARI7C4B781E09F4C135E8A56A812FBF5A4D |
|
Following Parts Not Illustrated |
|
Appelez-nous
|
- |
|
|
|
