01 - Cover Sheet

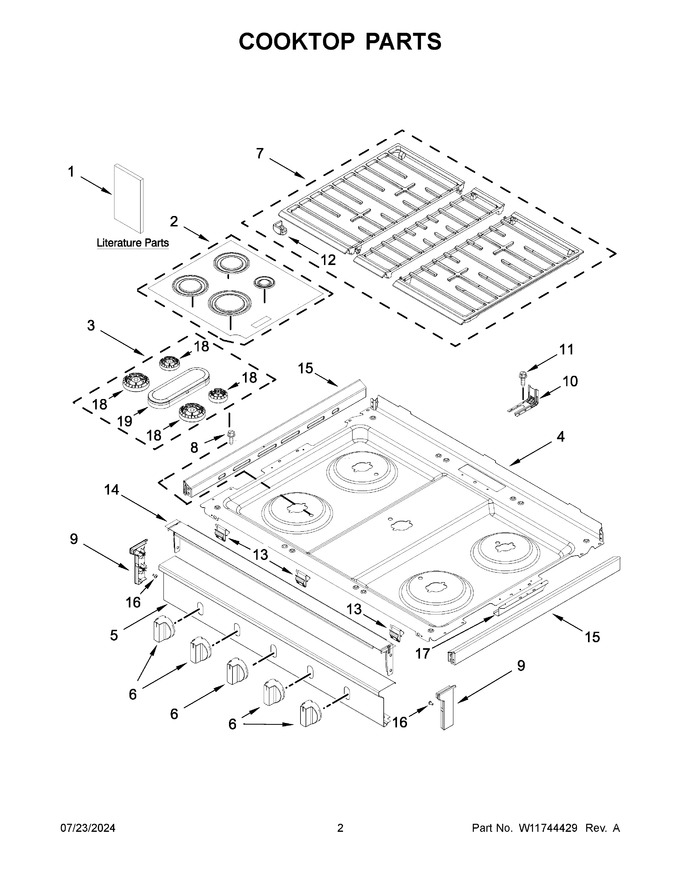

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11642080		Owners Manual		Appelez-nous	-
2	W11455147		Burner Cap Kit (black (set Of 4))   (Replaces: W11395131)			Immediately	$ 99.73
3	W11662402		Burner Kit   (Replaces: W11367107)			Immediately	$ 130.11
4	W11730436		Cooktop (black)   (Replaces: W11279788)				$ 386.03
5	W11730316		Panel, Manifold (black)   (Replaces: W11393099)		Appelez-nous	-
6	W11730315		Knob, Control (black)   (Replaces: W11632042)		Appelez-nous	-
7	W11730082		Grate Kit (black (set Of 3))   (Replaces: W11368270)				$ 364.47
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	W11730317		Panel, Manifold End Cap (black (left))   (Replaces: W11361195)		Appelez-nous	-
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11729100		Grate, Bumper   (Replaces: W11672010)				$ 13.71
13	W11728827		Spring, Clip   (Replaces: W11637551)		Appelez-nous	-
14	W11750421		Cooktop, Front Bracket   (Replaces: W11736687)		Appelez-nous	-
15	W11729931		Cooktop Frame (black)   (Replaces: W11736695)				$ 171.56
16	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
17	W11728390		Spark, Module Bracket   (Replaces: W11366598)		Appelez-nous	-
18	W11435630		Spreader, Flame (right Front)   (Replaces: W11352018)			Immediately	$ 82.12
19	W11475513		Oval Burner Assembly   (Replaces: W11357363)				$ 109.81
18A	W11435659		Spreader, Flame (right Rear)   (Replaces: W11352020)				$ 84.85
18B	W11435657		Spreader, Flame (left Rear)   (Replaces: W11352021)				$ 84.43
1A	W11639169		Tech Sheet		Appelez-nous	-
1B	W11641568		Quick Start Guide		Appelez-nous	-
5A	W11728636		Panel, Manifold (white)   (Replaces: W11393098)		Appelez-nous	-
6A	W11814018		Knob, Control (white)   (Replaces: W11632041)		Appelez-nous	-
9A	W11730319		Panel, Manifold End Cap (black (right))   (Replaces: W11361200)			Immediately	$ 80.58
9B	W11728826		Panel, Manifold End Cap (white (left))   (Replaces: W11361204)				$ 80.58
9C	W11728824		Panel, Manifold End Cap (white (right))   (Replaces: W11361202)		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11707251		Harness, Bake And Broil   (Replaces: W11448086)				$ 79.95
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11730299		Harness, Main   (Replaces: W11374168)		Appelez-nous	-
NI	WPW10182767		Tie, Manifold Wire   (Replaces: W10182767)				$ 7.30
