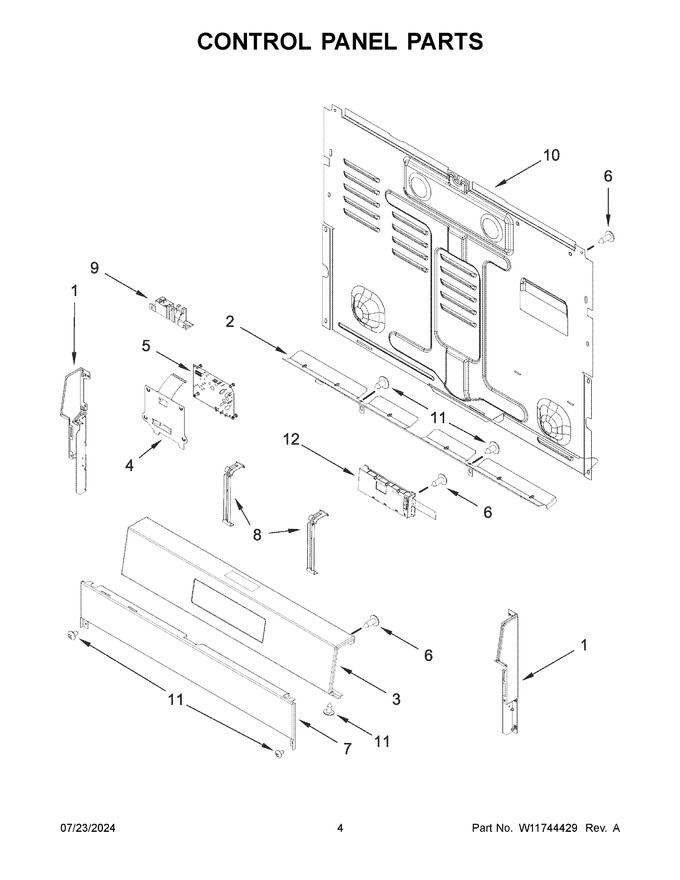

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11730342		Endcap (black (left))   (Replaces: W11327041)				$ 117.41
2	W11747326		Shield, Heat   (Replaces: W11736649)		Appelez-nous	-
3	W11730341		Panel, Control (black)   (Replaces: W11299306)		Appelez-nous	-
4	W11750420		Bracket, Mounting (dsi)   (Replaces: W11736648)		Appelez-nous	-
5	W10898291		Module, Spark Dsi   (Replaces: W10818365)			Immediately	$ 365.64
6	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
7	W11730081		Panel, Lower (black)   (Replaces: W11625443)		Appelez-nous	-
8	W11713812		Bracket, Control   (Replaces: W11290750)				$ 30.37
9	W11703692		Spark Module   (Replaces: W11350452)			Immediately	$ 96.65
10	W11730305		Cover, Back   (Replaces: W11393670)		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	W11764619		Control, Electronic (lcx) (black)   (Replaces: W11639407)				$ 419.29
1A	W11730343		Endcap (black (right))   (Replaces: W11327043)				$ 117.41
1B	W11730528		Endcap (white (left))   (Replaces: W11327042)				$ 116.03
1C	W11730533		Endcap (white(right))   (Replaces: W11327044)				$ 116.03
3A	W11730278		Panel, Control (white)   (Replaces: W11299307)		Appelez-nous	-
7A	W11726990		Panel, Lower (white)   (Replaces: W11625439)				$ 78.74
