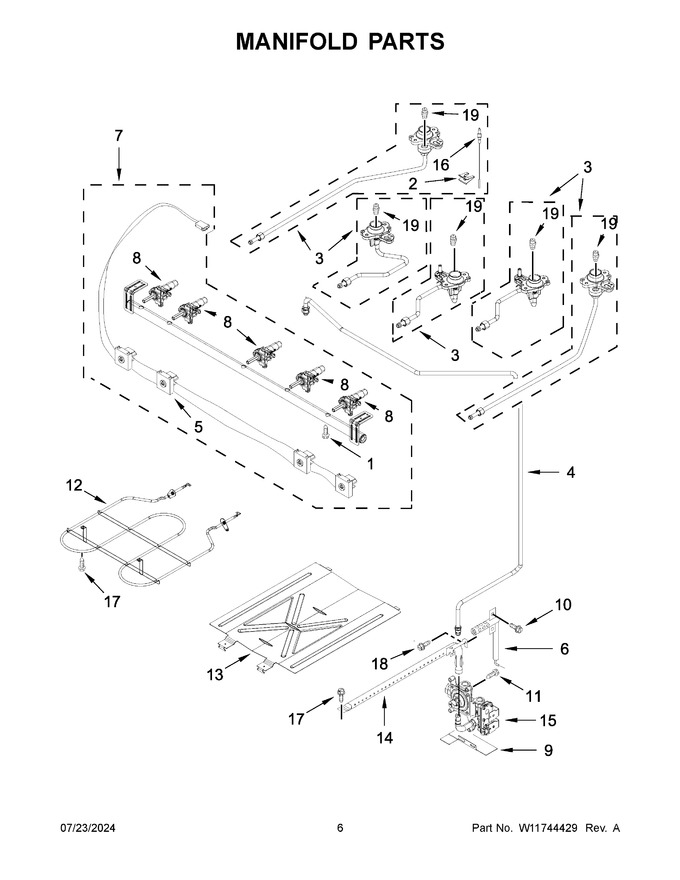

04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11727164		Screw   (Replaces: W11402213)		Appelez-nous	-
2	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
3	W11730321		Orifice Holder Assembly (15k) (left Front)   (Replaces: W11300869)		Appelez-nous	-
4	W11796249		Tubing (manifold To Regulator)   (Replaces: W11384792)				$ 131.31
5	W11727166		Harness, Igniter (includes Switches)   (Replaces: W11637977)				$ 143.34
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
7	W11730298		Manifold Assembly   (Replaces: W11279819)		Appelez-nous	-
8	W11728579		Valve, Single (left Rear)   (Replaces: W11279838)		Appelez-nous	-
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 117.89
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W10898290		Regulator   (Replaces: W10818355)				$ 393.66
16	W11453940		Electrode (left Front And Left Rear)   (Replaces: W11428831)				$ 64.46
17	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
18	3196265		Screw		Appelez-nous	-
19	W10849722		Orifice (18k) (right Front)		Appelez-nous	-
16A	W11453920		Electrode (right Front, Right Rear, And Center)   (Replaces: W11428858)				$ 64.35
19A	W10907868		Orifice (center)				$ 90.69
19B	W11677633		Orifice (5k) (right Rear)   (Replaces: W10849719)				$ 99.15
19C	W11730297		Orifice (12k) (left Front And Left Rear)   (Replaces: W10849716)		Appelez-nous	-
19D	W10849717		Orifice (15k) (left Front)			Immediately	$ 93.46
3A	W11727171		Orifice Holder Assembly (10k) (left Rear)   (Replaces: W11300871)		Appelez-nous	-
3B	W11728388		Orifice Holder Assembly (18k) (right Front)   (Replaces: W11300879)			Immediately	$ 80.68
3C	W11727169		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11300867)		Appelez-nous	-
3D	W11730322		Orifice Holder Assembly (12k) (center)   (Replaces: W11341174)		Appelez-nous	-
8A	W11728580		Valve, Single (right Front And Center)   (Replaces: W11279839)			Immediately	$ 94.28
8B	W11728578		Valve, Single (right Rear)   (Replaces: W11279837)		Appelez-nous	-
NI	W11730274		Lp 5 Orifice Conversion Kit   (Replaces: W11368273)				$ 63.32
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 52.11
