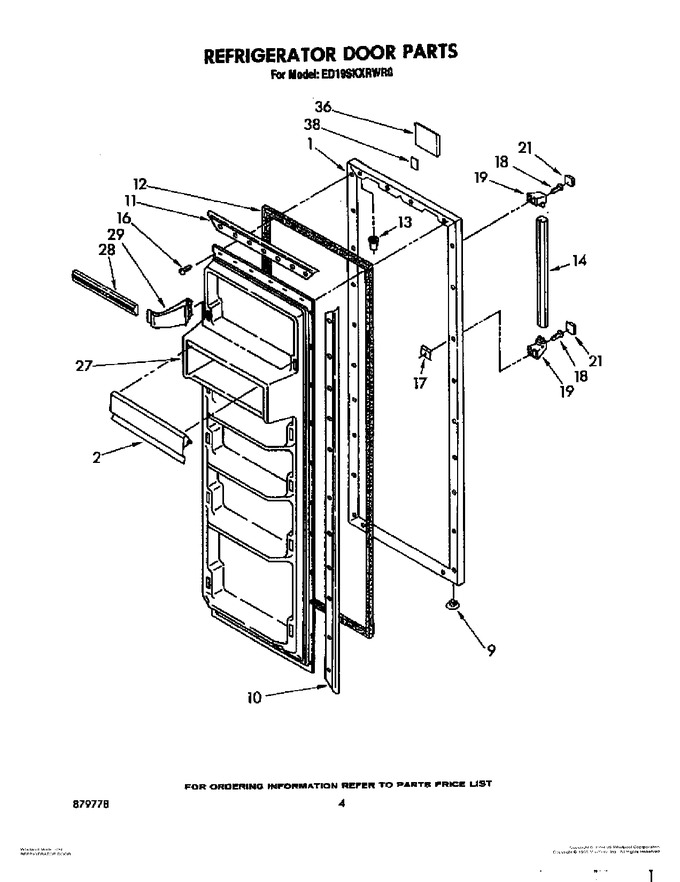

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110111		Refrigerator, Door Panel (white)		Appelez-nous	-
2	1116310		Compartment, Door Utility		Appelez-nous	-
9	534927		Hole Plug		Appelez-nous	-
10	836120		Retainer, Side		Appelez-nous	-
11	836121		Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 939565)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	1110069		Handle		Appelez-nous	-
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
17	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
18	488987		Screw, 8-15 X 1-5/8 (2)		Appelez-nous	-
19	1106767		End, Door Handle (2)		Appelez-nous	-
21	1110070		Cover, End Door Handle (2)		Appelez-nous	-
27	981428		Interior Door Panel		Appelez-nous	-
28	935304		Trim, Door Shelf (5)		Appelez-nous	-
29	WP986540		Retainer, Door Trim (10)   (Replaces: 986540)				$ 8.07
36	945114		Nameplate		Appelez-nous	-
38	991259		Tape Strip		Appelez-nous	-
