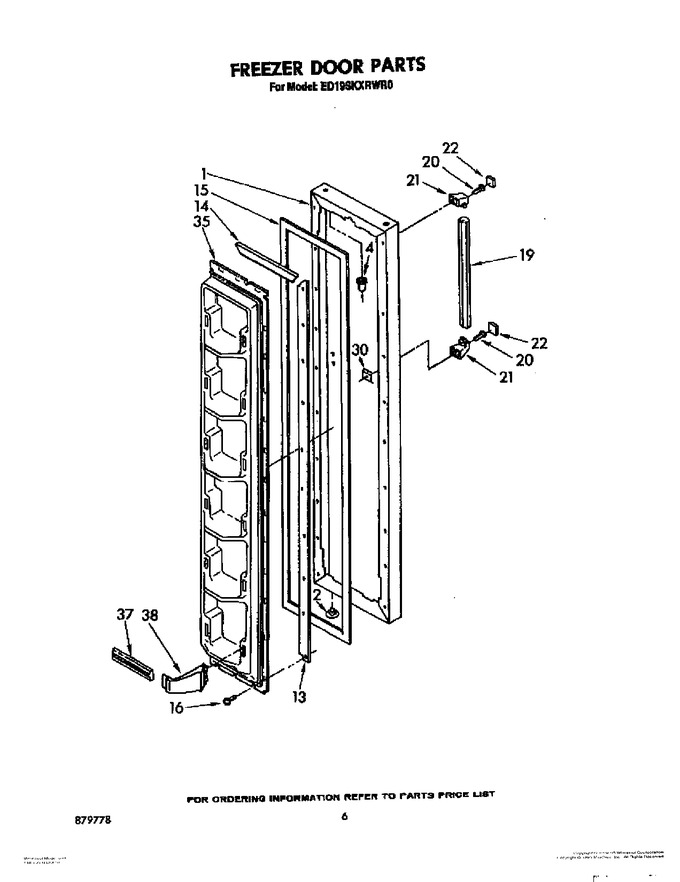

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110116		Freezer, Door Panel (white)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
13	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
14	836122		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
15	2188405A		Door, Gasket Magnetic   (Replaces: 939566)				$ 368.63
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
19	1110069		Handle		Appelez-nous	-
20	488987		Screw, 8-15 X 1-5/8 (2)		Appelez-nous	-
21	1106767		End, Door Handle (2)		Appelez-nous	-
22	1110070		Cover, End Door Handle (2)		Appelez-nous	-
30	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
35	937457		Interior, Door Panel		Appelez-nous	-
37	935307		Trim, Door Shelf (5)		Appelez-nous	-
38	WP986540		Support Trim End (10)   (Replaces: 986540)				$ 8.07
