Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 488474 Screw, Ground Appelez-nous -
2 1105219 Grommet, Compressor Bracket Appelez-nous -
3 943480 Condenser Appelez-nous -
4 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

5 510716 Clamp (2) Appelez-nous -
6 548744 Clip (2) Appelez-nous -
7 1105212 Running Capacitor Appelez-nous -
8 1105220 Bracket, Mounting Appelez-nous -
9 1105190 Capacitor, Wiring Appelez-nous -
10 549947 Box, Junction Appelez-nous -
11 514357 Grommet Appelez-nous -
12 W11693756 Screw, 8 X 5/8   (Replaces: 488687) In-Stock Immediately $ 14.76

13 WP488729 Screw, 8 X 1/2   (Replaces: 486993) In-Stock Immediately $ 8.28

15 509812 Screw Grommet Appelez-nous -
16 489139 Screw (4) Appelez-nous -
17 819194 Compressor (includes Items 51, 52, 53, 54) (also Order 876765 Tube Kit) Appelez-nous -
18 1105200 Grommet (4) Appelez-nous -
19 303776 Screw   (Replaces: 488879) Appelez-nous -
20 851095 Strap Appelez-nous -
21 WPW10141625 Screw, 8-32 X 1/2 (2)   (Replaces: 488197) Special Order $ 22.22

22 510769 Dampener (2) Appelez-nous -
23 1105201 Heat, Exchanger Appelez-nous -
25 548738 Clamp (4) Appelez-nous -
26 943447 Grommet Appelez-nous -
27 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

29 WP486692 Nut, Speed   (Replaces: 486692) Special Order $ 8.43

30 850156 Guard, Fan Appelez-nous -
31 945577 Evaporator Appelez-nous -
32 513584 Clamp Appelez-nous -
33 WP4387489 Defrost, Bimetal   (Replaces: 934424) Special Order $ 108.99

34 WP549433 Heater, Defrost   (Replaces: 934445) Special Order $ 175.73

35 227991 Wire Connector Appelez-nous -
36 850626 Cord, Service Appelez-nous -
37 989524 Blade, Fan Appelez-nous -
40 681390 Screw, 8-32 X 3/8   (Replaces: 489019) Special Order $ 13.71

42 1105198 Frame Appelez-nous -
44 833697 Motor, Fan   (Replaces: 946538) In-Stock Immediately $ 88.15

45 941697 Rail, Front Appelez-nous -
46 489340 Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683) Appelez-nous -
47 488624 Screw, 8 X 3/8 Appelez-nous -
48 548695 Bracket, Fan Motor Appelez-nous -
49 850764 Baffle, Air Appelez-nous -
50 548745 Clip, Wire (2) Appelez-nous -
51 1105209 Start Relay Appelez-nous -
52 1105210 Overload Appelez-nous -
53 1105221 Terminal Cover Appelez-nous -
54 1105222 Terminal Strap Appelez-nous -
56 488454 Screw, 1/4-28 X 1/2 (2) Appelez-nous -
58 652985 Baffle, Air Evaporator (2) Appelez-nous -
60 W10843121 Dryer   (Replaces: 945424) In-Stock Immediately $ 57.13

65 549193 Clamp Special Order $ 14.06

68 842041 Tray, Evaporating Special Order $ 64.92

78 842436 Support, Evaporator Appelez-nous -
79 WP681414 Screw, 10-12 X 3/8   (Replaces: 489049) In-Stock Immediately $ 8.47

81 489050 Screw, 8-32 X 1/2 Special Order $ 692.56

83 548508 Clamp, Drier Appelez-nous -
94 945572 Pan, Drip Appelez-nous -
95 549435 Shield, Heat (2) Appelez-nous -
96 515393 Transformer (115-230 Volt) Appelez-nous -
96 876370 Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 243.14

96 WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 182.65

96 WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 123.84

96 WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.78

96 542639 Cement, Alumilastic 1-1/4 Oz.) Appelez-nous -
96 549419 Clamp (4) Appelez-nous -
96 978026 Valve, Access (5/16``) In-Stock Immediately $ 134.49

96 SF5538 Valve, Access (3/8``)   (Replaces: 978027) Special Order $ 21.64

96 978028 Valve, Access (1/2) Appelez-nous -
96 978029 Valve Access (5/8``) Special Order $ 93.85

96 978030 Valve, Access (3/4``) Special Order $ 137.25

96 876764 Valve, Access(3/16``) In-Stock Immediately $ 95.92

96 WP978025 Valve, Access (1/4``)   (Replaces: 978025) In-Stock Immediately $ 110.51

96 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

96 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

96 876370 Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305) Special Order $ 243.14

96 799340 Enamel, Black (1 Qt. Uncut) Appelez-nous -
96 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

96 212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

96 479502 Tape, Vinyl 3/4 X 108``) Special Order $ 66.77

96 876370 Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) Special Order $ 243.14

96 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
96 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 51.75

96 606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 82.37

96 799908 Silicone (spray) Appelez-nous -
96 799833 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
96 799832 Kit. Porcelain Repair (white) Appelez-nous -
96 833938 Kit, Terminal Connector Special Order $ 8.47

350942 Primer White (13 Oz. Spray Can) Special Order $ 94.14

LIT879778 Parts List Appelez-nous -
LIT1116314 Energy Label Appelez-nous -
LIT1114013 Care & Use Guide Appelez-nous -
LIT1115484 Service & Wiring Sheet Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 40.12

285006 Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939) Special Order $ 59.89

350941 Xleveler, Enamel (13 Oz. Spray Can) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

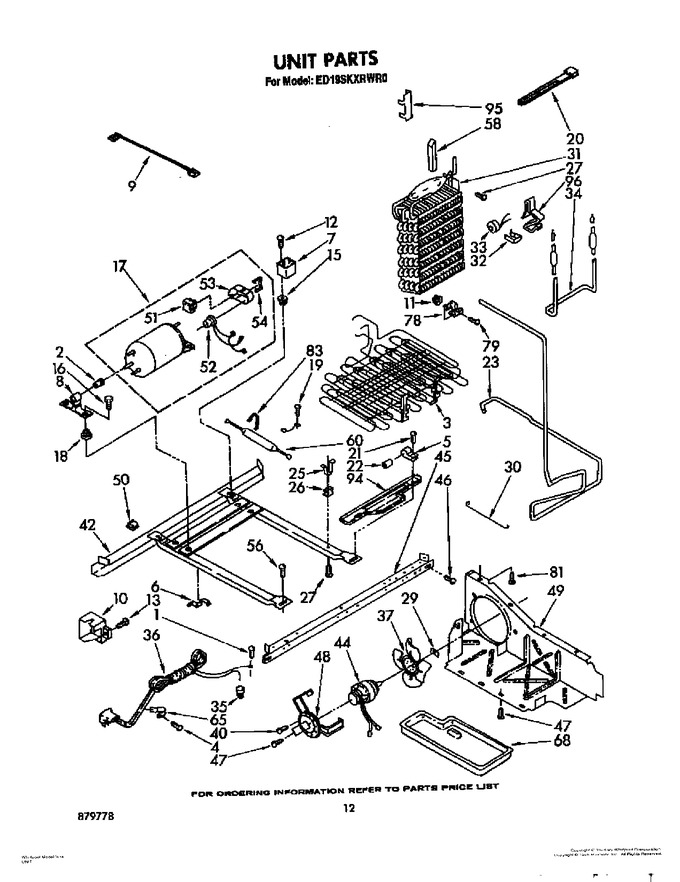

Diagram for ED19SKXRWR0
