SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Door


04 - Freezer Door


05 - Airflow And Control


06 - Shelf


07 - Unit , Lit/optional

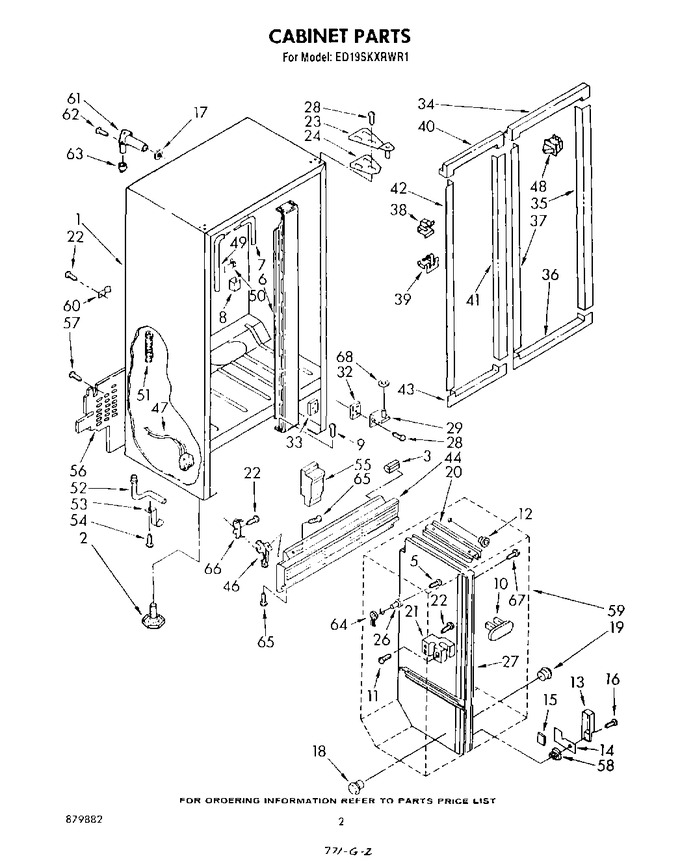

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	836392		Leveler, Cabinet		Appelez-nous	-
3	546131		Bumper, Grille		Appelez-nous	-
5	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 8.40
6	985979		Center, Mullion Rail (white)		Appelez-nous	-
6	1100363		Center, Mullion Rail (platinum)		Appelez-nous	-
6	1100362		Center, Mullion Rail (toast)		Appelez-nous	-
6	989927		Center, Mullion Rail (almond)		Appelez-nous	-
6	989925		Center, Mullion Rail (golden Harvest)		Appelez-nous	-
7	851874		Heater, Mullion		Appelez-nous	-
8	510291		Retainer, Clip		Appelez-nous	-
9	488624		Screw, 8 X 3/8		Appelez-nous	-
9	WP308685		Screw (repair)   (Replaces: 488258)			Immediately	$ 7.87
10	836080		Mullion, Stabilizer		Appelez-nous	-
11	488280		Screw, 8 X 3/4		Appelez-nous	-
12	851020		Grommet, Wiring		Appelez-nous	-
13	985468		Escutcheon Meat		Appelez-nous	-
14	984102		Slide Meat				$ 5.02
15	992358		Pad, Foam		Appelez-nous	-
16	486214		Screw 8-15 X 1/2		Appelez-nous	-
17	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
18	843888		Retainer, Hole		Appelez-nous	-
19	843887		Insert, Hole		Appelez-nous	-
20	842435		Gasket, Divider		Appelez-nous	-
21	836079		Mullion, Stabilizer Divider		Appelez-nous	-
22	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
23	842039		Hinge, Top		Appelez-nous	-
24	836151		Shim, Hinge		Appelez-nous	-
26	850738		Receptacle Cap		Appelez-nous	-
27	935299		Divider Mullion Assembly		Appelez-nous	-
28	488949		Screw (repair)		Appelez-nous	-
28	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
29	1116840		Hinge Bottom L.h.		Appelez-nous	-
29	1115298		Hinge Bottom R.h.		Appelez-nous	-
32	836196		Shim, Hinge Bottom		Appelez-nous	-
33	836162		Tap Plate (2)		Appelez-nous	-
34	836445		Breaker Trim, Top		Appelez-nous	-
35	1115703		Breaker Trim (r.s.)		Appelez-nous	-
36	836446		Trim, Breaker (bottom)		Appelez-nous	-
37	836213		Trim, Breaker (l.s.)		Appelez-nous	-
38	836090		Breaker Trim Clip		Appelez-nous	-
39	849479		Breaker, Clip		Appelez-nous	-
40	836444		Breaker, Trim Top (freezer)		Appelez-nous	-
41	836108		Breaker Trim, (r.s.) Freezer		Appelez-nous	-
42	836174		Breaker Trim (l.s.) Freezer		Appelez-nous	-
43	836447		Breaker Trim (bottom) Freezer		Appelez-nous	-
44	1106236		Exterior Grille		Appelez-nous	-
46	WP944224		Support Grille   (Replaces: 944224)				$ 7.94
47	548734		Wire Assembly (water Valve)		Appelez-nous	-
48	W11384469		Rocker Arm Switch (2)   (Replaces: 549702)			Immediately	$ 39.09
49	934447		Heater, Stile		Appelez-nous	-
50	935663		Clip, Stile Heater		Appelez-nous	-
51	836068		Drain Fitting, Liner		Appelez-nous	-
52	841646		Extension, Drain Fitting		Appelez-nous	-
53	841648		Clip, Drain		Appelez-nous	-
54	488978		Screw, 8-15 X 3/8		Appelez-nous	-
55	836372		Insert, Baffle		Appelez-nous	-
56	850457		Cover, Unit Compartment		Appelez-nous	-
57	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
58	842339		Grommet		Appelez-nous	-
59	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
60	836077		Tube Clamp		Appelez-nous	-
61	653113		Fitting, Water Tube		Appelez-nous	-
62	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 8.57
63	WP487996		Cap, Plastic   (Replaces: 487996)				$ 8.67
64	481658		Wiring, Ice Maker		Appelez-nous	-
65	489173		Screw, 8-22 X 5/16 (4)		Appelez-nous	-
66	989068		Clip, Grille		Appelez-nous	-
67	WP489069		Screw, 8 X 1/2   (Replaces: 488874)			Immediately	$ 8.40
68	WP487802		Washer (2)   (Replaces: 488723)			Immediately	$ 7.91

    View Diagram in Separate Window       Print Part List
