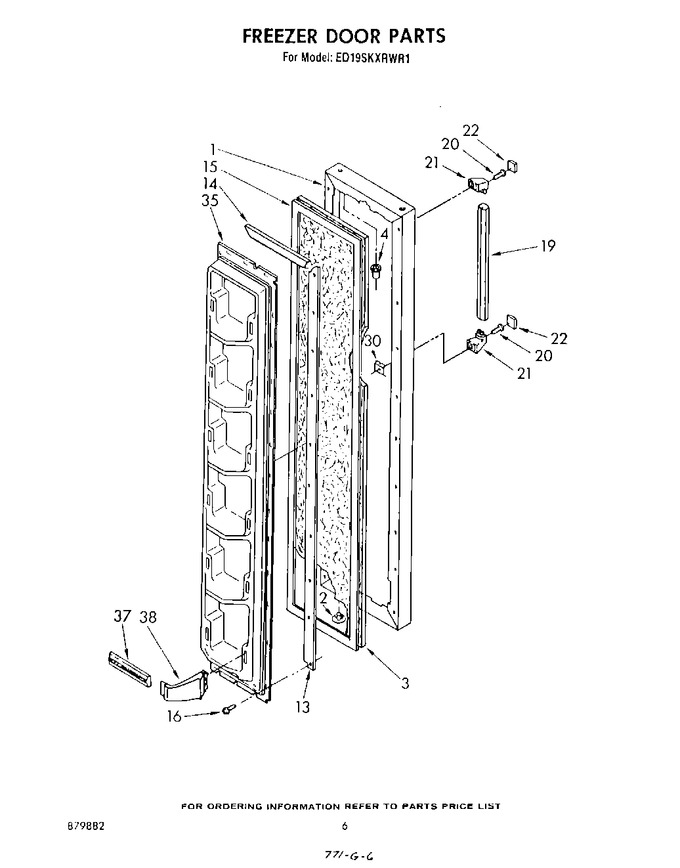

SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Door


04 - Freezer Door


05 - Airflow And Control


06 - Shelf


07 - Unit , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1120657		Freezer, Door Panel (platinum (also Order Item 3))		Appelez-nous	-
1	1110116		Freezer, Door Panel (white)		Appelez-nous	-
1	1120654		Freezer, Door Panel (golden Harvest)		Appelez-nous	-
1	1120655		Freezer, Door Panel (almond)		Appelez-nous	-
1	1120656		Freezer, Door Panel (toast)		Appelez-nous	-
2	1100197		Hole Plug (platinum)		Appelez-nous	-
2	989197		Hole Plug (almond)		Appelez-nous	-
2	989879		Hole Plug (golden Harvest)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
2	1100196		Hole Plug (toast)		Appelez-nous	-
3	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
13	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
14	836122		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
15	2188405A		Door, Gasket Magnetic   (Replaces: 939566)				$ 368.63
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
19	1110069		Handle		Appelez-nous	-
20	489250		Screw (repair)		Appelez-nous	-
20	00489246		Screw   (Replaces: 489246)				$ 40.31
21	1106767		End, Door Handle (2)		Appelez-nous	-
22	1110070		Cover, End Door Handle (2)		Appelez-nous	-
30	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
35	937457		Interior, Door Panel		Appelez-nous	-
37	935307		Trim, Door Shelf (5)		Appelez-nous	-
38	WP986540		Support Trim End (10)   (Replaces: 986540)				$ 8.07

    View Diagram in Separate Window       Print Part List
