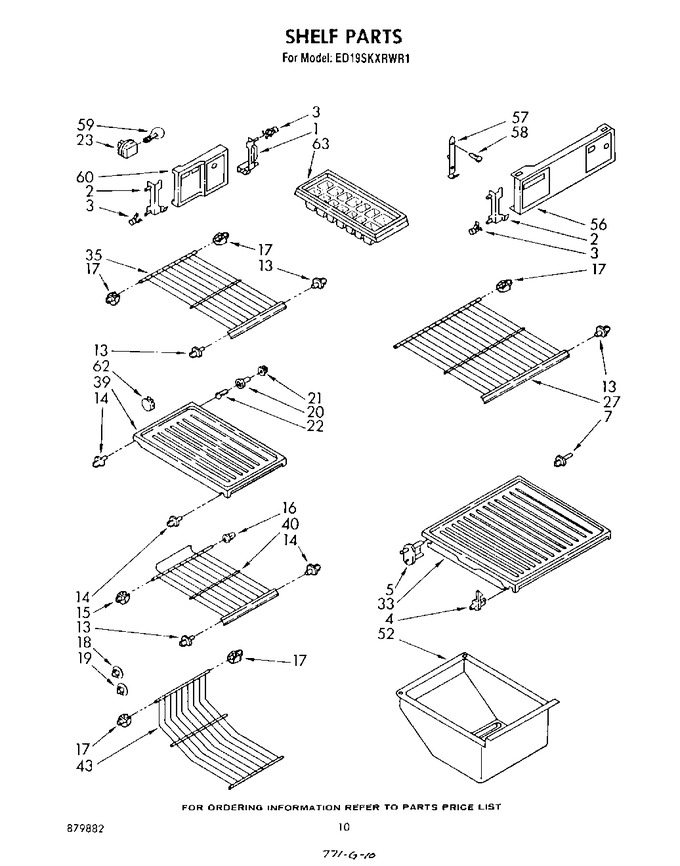

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842355		Support, Light Lens (r.s.)		Appelez-nous	-
2	842356		Support, Light Lens (l.s.)		Appelez-nous	-
3	843945		Clip, Tubular		Appelez-nous	-
4	652675		Shelf Stud (2)		Appelez-nous	-
5	845986		Shelf Stud (2)		Appelez-nous	-
7	536475		Shelf Stud (2)				$ 7.28
13	529758		Shelf, Stud		Appelez-nous	-
14	521878		Shelf Stud		Appelez-nous	-
15	210518		Shelf Support		Appelez-nous	-
16	533881		Grommet		Appelez-nous	-
17	523264		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
17	523263		Shelf Stud Saddle (r.s.)		Appelez-nous	-
18	519890		Hole, Plug		Appelez-nous	-
19	512900		Stud, Retainer		Appelez-nous	-
20	658944		Stud, Shelf		Appelez-nous	-
21	538449		Screw Grommet		Appelez-nous	-
22	487559		Screw, 8-15 X 1-1/4		Appelez-nous	-
23	4387478		Socket Assembly   (Replaces: 851067)			Immediately	$ 115.67
27	992341		Wire, Shelf (3)		Appelez-nous	-
33	983817		Pan Slide & Cover		Appelez-nous	-
35	992342		Shelf, Freezer		Appelez-nous	-
39	837202		Solid Shelf		Appelez-nous	-
40	992343		Shelf, Ice Cube Pan		Appelez-nous	-
43	837149		Trivet		Appelez-nous	-
52	1110106		Pan, Meat		Appelez-nous	-
56	943218		Light Lens, Refrigerator		Appelez-nous	-
57	984552		Support, Light Lens		Appelez-nous	-
58	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
59	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
60	985456		Light Lens, Freezer		Appelez-nous	-
62	659598		Hole, Plug		Appelez-nous	-
63	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84

    View Diagram in Separate Window       Print Part List
