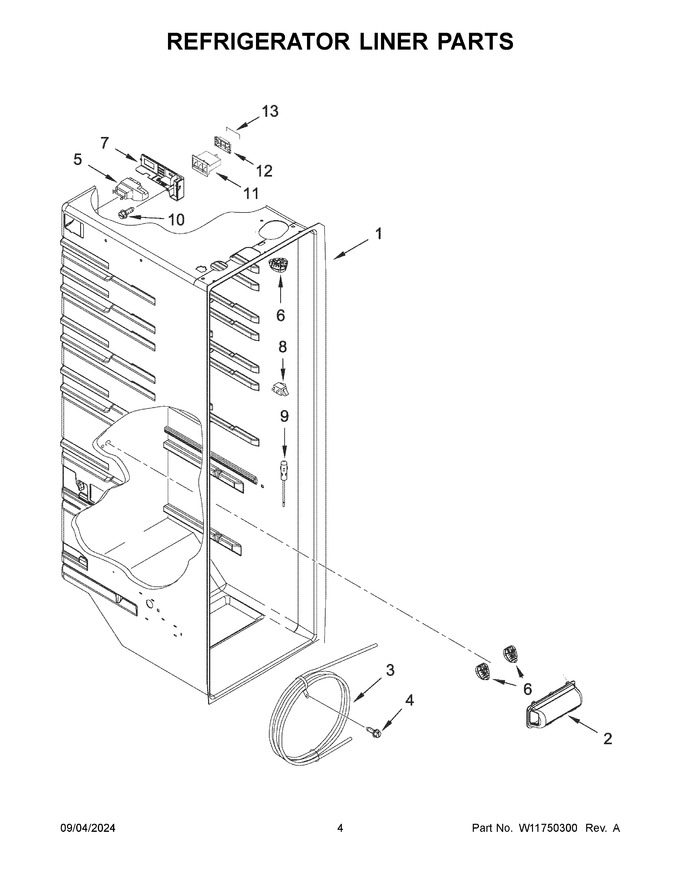

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11239891 | Lens, Light (includes Gasket) (Replaces: W10166130) |
|
$ 96.69 | |||||
| 3 | W11777988 | Tubing, Water Reservoir (Replaces: W11676893) |
|
Immediately | $ 37.85 | ||||
| 4 | W10141518 | Screw |
|
$ 9.09 | |||||
| 5 | W11380595 | Diffuser, Air (Replaces: W11264792) |
|
$ 98.21 | |||||
| 6 | W11602886 | Light Module, Led (Replaces: W11549780) |
|
$ 42.63 | |||||
| 7 | W11546609 | Control, Electronic (Replaces: W11478197) |
|
Immediately | $ 216.21 | ||||
| 8 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 9 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 112.83 | ||||
| 10 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.75 | |||||
| 11 | W10901825 | Slider, Housing |
|
$ 30.99 | |||||
| 12 | W10901827 | Slider |
|
- | |||||
| 13 | W10901826 | Connecting Rod |
|
- |
