SELECT A DIAGRAM
New Model Search:

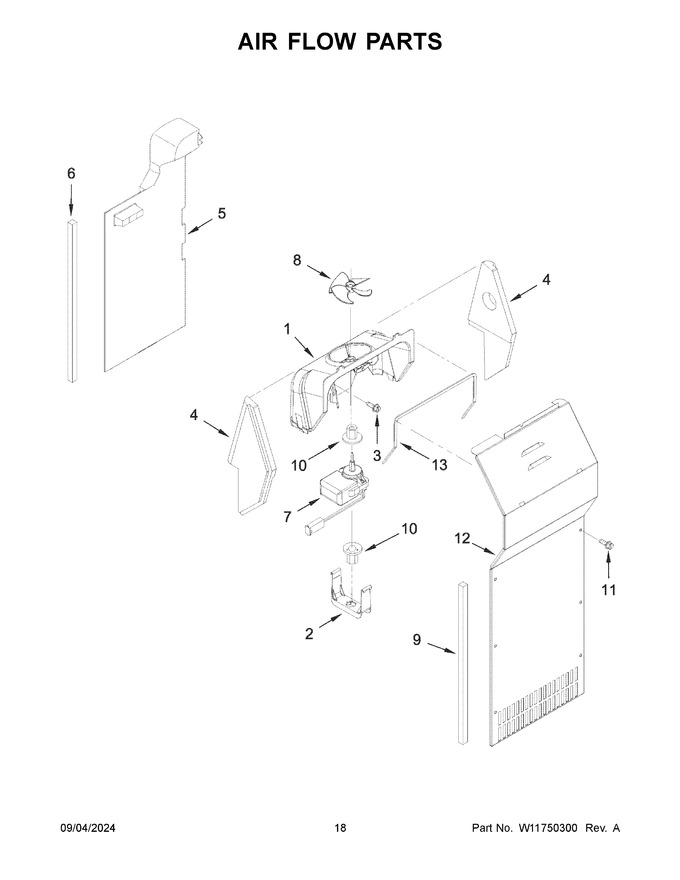

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254898 | Scroll, Fan (Replaces: W11228728) |
|
Immediately | $ 323.27 | ||||
| 2 | W11700295 | Retainer, Fan Motor (Replaces: W10188846) |
|
$ 22.19 | |||||
| 3 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 4 | 4388358 | Support, Fan Scroll (left Hand) (Replaces: W11414496) |
|
$ 31.16 | |||||
| 5 | W11099844 | Duct, Freezer Air |
|
$ 101.05 | |||||
| 6 | 4388500 | Gasket (Replaces: W10252476) |
|
$ 90.39 | |||||
| 7 | WP2315549 | Motor, Fan (Replaces: 2315549) |
|
Immediately | $ 249.86 | ||||
| 8 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | WP2304241 | Gasket (Replaces: 2304241) |
|
Immediately | $ 82.80 | ||||
| 10 | WP2176759 | Grommet, Motor (Replaces: 2176759) |
|
$ 7.77 | |||||
| 11 | WP693995 | Screw (Replaces: W10142292) |
|
Immediately | $ 7.19 | ||||
| 12 | W11429207 | Cover, Evaporator (Replaces: W10463010) |
|
$ 58.00 | |||||
| 13 | WP2155789 | Gasket, Scroll Assembly (Replaces: 2155788) |
|
$ 7.79 | |||||
| 4A | 4388358 | Support, Fan Scroll (right Hand) (Replaces: W11414497) |
|
$ 31.16 |
