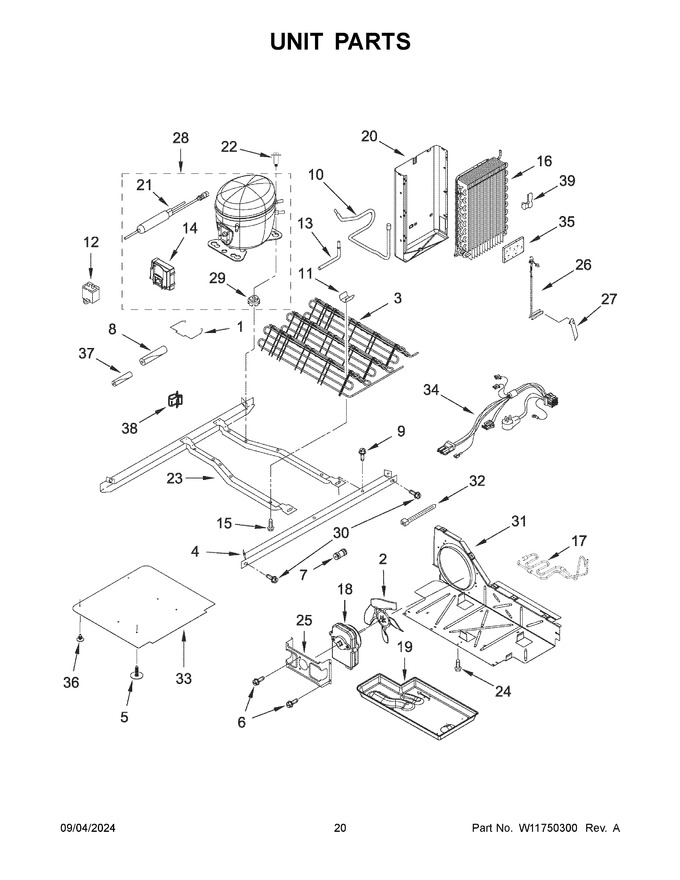

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11577799		Strap, Bale   (Replaces: W11495051)		Appelez-nous	-
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 23.99
3	W11632924		Assembly, Condenser (also Order The Following Lokring™ Parts)   (Replaces: W11553540)			Immediately	$ 226.24
4	W10905882		Rail, Unit Mounting				$ 117.48
5	489396		Clip				$ 10.72
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	WP2300868		Connector, Union   (Replaces: W10271541)			Immediately	$ 29.05
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP489427		Screw   (Replaces: 489427)				$ 7.47
10	W11506458		Tube, Suction				$ 41.56
11	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
12	WPW10662129		Capacitor   (Replaces: W10590083)			Immediately	$ 58.86
13	2325479		Tube, Process		Appelez-nous	-
14	W11547180		Device, Combination Start (start Relay And Overload)   (Replaces: W11359381)			Immediately	$ 37.83
15	W11544659		Screw   (Replaces: 8281232)				$ 13.67
16	W11546605		Evaporator (also Order The Following Lokring™ Parts)   (Replaces: W11357917)			Immediately	$ 241.27
17	W11678305		Assembly, Precooler Formed   (Replaces: W11442858)				$ 63.46
18	W11578915		Motor, Condenser Fan   (Replaces: W11546724)			Immediately	$ 71.42
19	W11678304		Tray, Evaporator   (Replaces: W11562498)		Appelez-nous	-
20	W11546608		Assembly, Heat Shield And Drain Pan   (Replaces: W11400739)		Appelez-nous	-
21	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring™ Parts)   (Replaces: W10805035)			Immediately	$ 39.12
22	W11417341		Screw   (Replaces: W10476309)				$ 13.40
23	W10905880		Frame, Unit Mounting (includes Unit Mounting Rail)				$ 131.22
24	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
25	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 12.31
26	W11650659		Assembly, Defrost Heater And Evaporator Fan Harness (includes Thermal Fuse)   (Replaces: W11573115)			Immediately	$ 147.09
27	W11611126		Heat Probe   (Replaces: W11399989)				$ 22.06
28	W11580057		Compressor (also Order The Following Lokring™ Parts)   (Replaces: W11663223)			Immediately	$ 381.10
29	W11678963		Grommet, Compressor   (Replaces: W10806346)				$ 8.10
30	489340		Bolt		Appelez-nous	-
31	W10896764		Baffle, Air				$ 96.38
32	WPW10155270		Cable Tie   (Replaces: W10155270)				$ 6.17
33	W10905940		Assembly, Unit Cover (bottom)		Appelez-nous	-
34	W11661849		Assembly, Unit Wire (includes Power Cord)   (Replaces: W11383260)		Appelez-nous	-
35	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.07
36	W10000080		Retainer, Push-in		Appelez-nous	-
37	W11751592		Sleeve   (Replaces: W10303521)			Immediately	$ 20.30
38	W10812039		Clip, Wire   (Replaces: 2326941)				$ 10.59
39	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
16A	W11504449		4/2 Nr Al 00 (capillary Tube To Evaporator)			Immediately	$ 35.66
16B	W11506619		8 Nk Ms 00 (process Tube To Compressor)			Immediately	$ 24.65
21A	W11504433		6/4 Nr Ms 00 (heat Loop To Drier)			Immediately	$ 28.00
21B	W11504447		5/1.8 Nr Ms 00 (capillary Tube To Drier)			Immediately	$ 41.81
28A	W11504415		8.5/8 Nr Ms 00 (suction Tube To Compressor)			Immediately	$ 24.66
28B	W11504431		7/5 Nr Ms 00 (high Pressure Side To Compressor)			Immediately	$ 25.84
28C	W11506619		8 Nk Ms 00 (process Tube To Compressor)			Immediately	$ 24.65
3A	W11506623		5 Nk Ms 00 (suction Line To Condenser)			Immediately	$ 20.95
3B	W11504445		5/4 Nr Ms 00 (high Side To Condenser)			Immediately	$ 27.54
NI	ARI294D3EED7ACB744660E31C30FDB1A5CE		Refrigerant Charge 64 Grams (r600a)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
