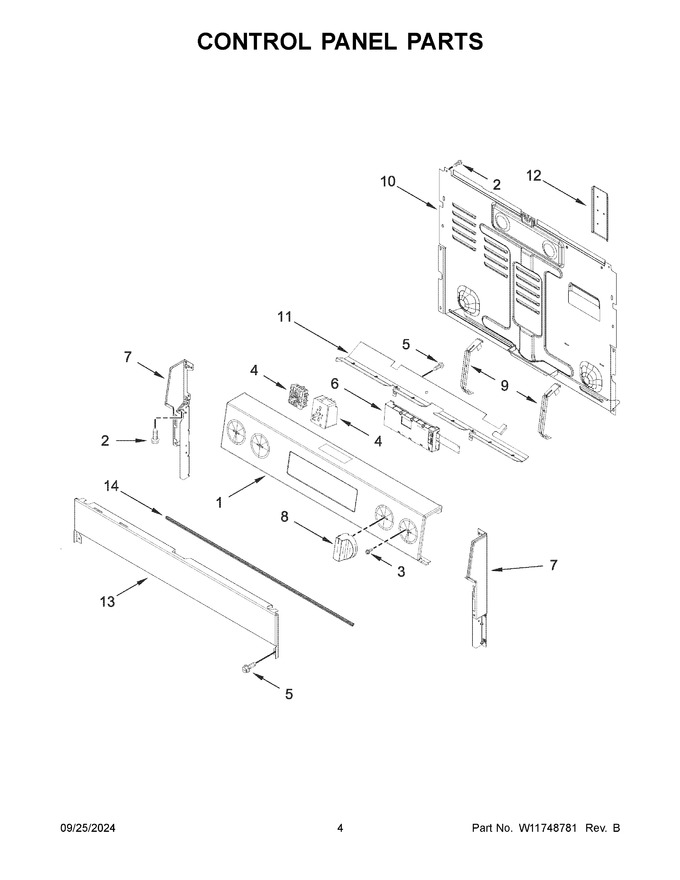

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11747382 | Console (black) (Replaces: W11730181) |
|
$ 345.80 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | W10857622 | Switch, Infinite (left Front And Right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | W11757143 | Board, Control (black) (Replaces: W11637094) |
|
Immediately | $ 419.29 | ||||
| 7 | W11728322 | Endpost, Console (black (left)) (Replaces: W11625423) |
|
- | |||||
| 8 | W11728257 | Knob (stainless) (Replaces: W11584001) |
|
Immediately | $ 42.37 | ||||
| 9 | W11728256 | Bracket, Control (Replaces: W11371599) |
|
- | |||||
| 10 | W11726751 | Cover, Upper Rear (Replaces: W11393668) |
|
$ 131.99 | |||||
| 11 | W11730262 | Shield, Heat (Replaces: W11363806) |
|
$ 87.08 | |||||
| 12 | W11729912 | Cover, Rear Flue (Replaces: W11394231) |
|
Immediately | $ 106.53 | ||||
| 13 | W11728260 | Panel, Lower (black) (Replaces: W11625413) |
|
$ 122.82 | |||||
| 14 | W11728258 | Gasket, Lower Panel (Replaces: W11643797) |
|
$ 58.00 | |||||
| 4A | W11661906 | Switch, Infinite (left Rear) (Replaces: W10843843) |
|
Immediately | $ 19.59 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 7A | W11728320 | Endpost, Console (black (right)) (Replaces: W11625420) |
|
$ 117.71 |
