SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts

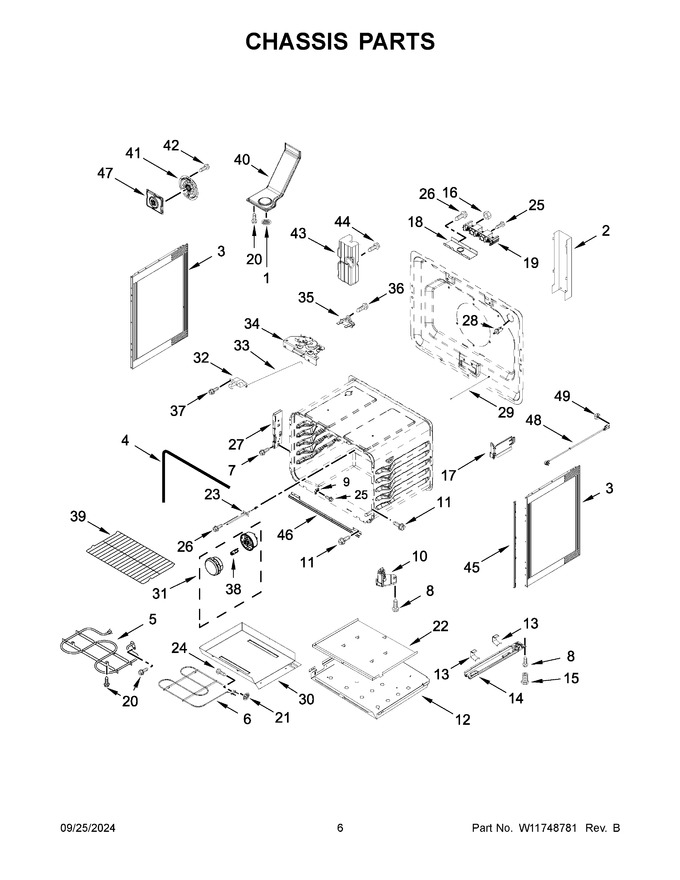

04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11268772		Screen, Vent   (Replaces: W11092984)				$ 218.56
2	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 139.60
3	W11730303		Panel, Side (black)   (Replaces: W11445467)			Immediately	$ 178.50
4	W11542153		Seal, Door   (Replaces: W11491751)			Immediately	$ 50.20
5	W10856603		Element, Broil   (Replaces: W10308476)			Immediately	$ 154.62
6	WP9755770		Element, Bake   (Replaces: 9755770)			Immediately	$ 117.66
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
9	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 19.30
10	WPW10341186		Front Foot Assembly   (Replaces: W10341186)			Immediately	$ 32.59
11	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
12	W10134121		Tray, Insulation				$ 44.75
13	W10137382		Clip, Panel			Immediately	$ 48.42
14	W11818353		Base Rail Assembly (right)   (Replaces: W10390007)				$ 62.66
15	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 8.24
16	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 8.19
17	W10404688		Clip, Oven Support				$ 17.69
18	W11728255		Bracket, Service   (Replaces: W11673744)				$ 76.48
19	W11736123		Block, Terminal (without Ground Strap)   (Replaces: W11750818)				$ 16.13
20	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
21	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
22	W10134125		Shield, Heat				$ 159.37
23	W10833885		Sensor   (Replaces: W10586204)			Immediately	$ 140.71
24	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 8.44
25	W11684512		Screw   (Replaces: 3400080)				$ 14.81
26	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
27	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
28	W11620712		Switch, Door   (Replaces: W11511828)				$ 46.31
29	9757239		Rod, Door Switch				$ 96.37
30	W10183712		Tray, Hidden Bake				$ 243.95
31	W11707255		Light Assembly   (Replaces: W11634772)			Immediately	$ 40.75
32	WP9761013		Front Door Latch Assembly   (Replaces: 9761013)				$ 256.36
33	W10078380		Rod, Latch				$ 94.91
34	WPW10107820		Rear Door Latch Assembly   (Replaces: W10107820)				$ 309.55
35	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 50.10
36	3196172		Screw			Immediately	$ 13.47
37	W11169708		Screw   (Replaces: 3196560)				$ 13.36
38	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 27.71
39	W11520287		Rack, Oven   (Replaces: W11173792)			Immediately	$ 46.84
40	W11726807		Tube, Vent   (Replaces: W11621245)				$ 77.19
41	W11527111		Fan, Convection   (Replaces: W11353930)			Immediately	$ 164.77
42	W10516115		Screw				$ 14.52
43	W11135752		Counterweight   (Replaces: W10910404)			Immediately	$ 153.79
44	W11135756		Screw   (Replaces: W11034869)				$ 14.73
45	W11594227		Barrier Rail, Rubber (left And Right)   (Replaces: W11510560)			Immediately	$ 76.68
46	W11464547		Bracket, Front Frame				$ 45.89
47	W11730217		Cover, Conv Fan   (Replaces: W11373155)		Appelez-nous	-
48	W11226497		Cord, Power   (Replaces: W10624592)			Immediately	$ 72.99
49	7103P02760		Nut		Appelez-nous	-
14A	W11818353		Base Rail Assembly (left)   (Replaces: W10390008)				$ 62.66
NI	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 116.41
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W10646923		Card, Insulator				$ 19.57
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11729932		Insulation, Flue   (Replaces: W11404469)				$ 32.77
NI	W11729936		Insulation, Back   (Replaces: W11407378)				$ 123.47

    View Diagram in Separate Window       Print Part List
