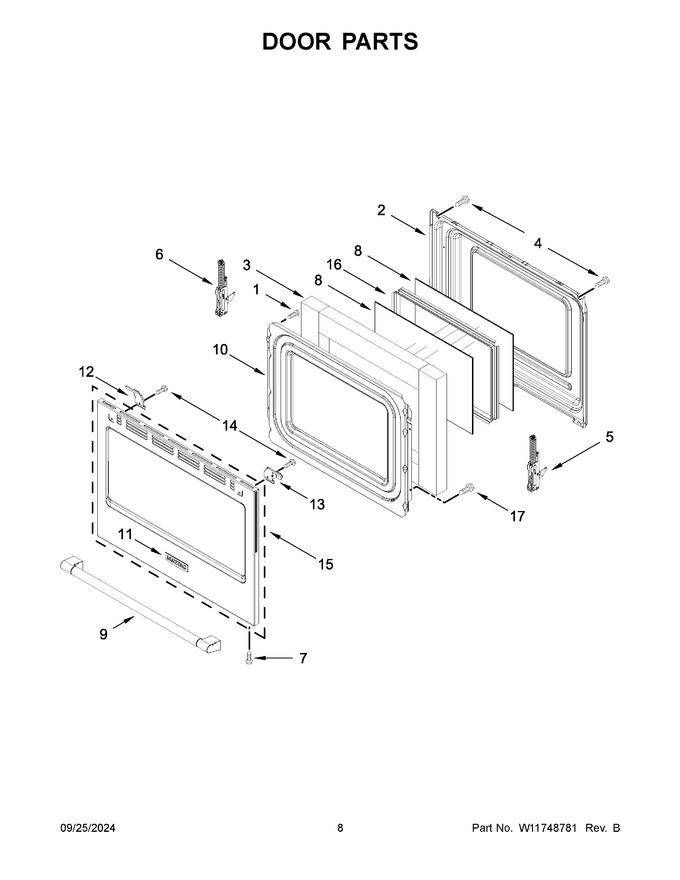

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 5 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 63.80 | ||||
| 6 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 7 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 9 | W11648982 | Handle, Oven Door (stainless) (Replaces: W11495825) |
|
$ 219.85 | |||||
| 10 | W11539580 | Retainer, Insulation (Replaces: W11380222) |
|
$ 233.31 | |||||
| 11 | W11648754 | Badge (Replaces: W11628148) |
|
Immediately | $ 42.40 | ||||
| 12 | W11726809 | Bracket, Handle Mount (left) (Replaces: W11417442) |
|
$ 29.69 | |||||
| 13 | W11726808 | Bracket, Handle Mount (right) (Replaces: W11157607) |
|
- | |||||
| 14 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 15 | W11750807 | Outer Door Skin And Glass Assembly (black (includes Badge)) (Replaces: W11631949) |
|
$ 746.73 | |||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 |
