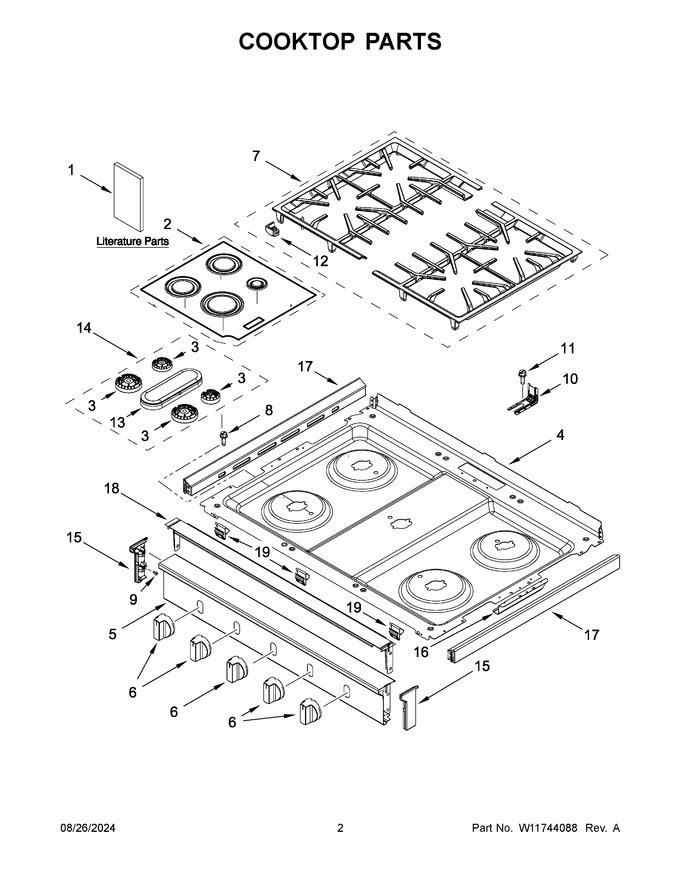

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11641830		Quick Start Guide		Appelez-nous	-
2	W11747335		Burner Cap Kit (black (set Of 4))   (Replaces: W11636608)		Appelez-nous	-
3	W11747336		Spreader, Flame (left Front And Right Rear)   (Replaces: W11352019)				$ 41.07
4	W11730423		Cooktop (black)   (Replaces: W11279786)				$ 332.69
5	W11729106		Panel, Manifold (black)   (Replaces: W11412237)		Appelez-nous	-
6	W11729101		Knob, Control (stainless)   (Replaces: W11584000)				$ 42.98
7	W11729009		Grate Kit (black (set Of 2))   (Replaces: W11601432)				$ 358.47
8	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
9	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
10	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11729100		Grate, Bumper   (Replaces: W11672010)				$ 13.71
13	W11475513		Oval Burner Assembly   (Replaces: W11357363)				$ 109.81
14	W11728823		Burner Kit   (Replaces: W11635708)				$ 180.92
15	W11729105		Panel, Manifold End Cap (black (left))   (Replaces: W11402711)		Appelez-nous	-
16	W11728390		Bracket, Spark Module   (Replaces: W11366598)		Appelez-nous	-
17	W11729931		Frame, Cooktop   (Replaces: W11367962)				$ 171.56
18	W11750421		Cooktop, Front Bracket   (Replaces: W11295628)		Appelez-nous	-
19	W11728827		Spring, Clip   (Replaces: W11637551)		Appelez-nous	-
15A	W11729103		Panel, Manifold End Cap (black (right))   (Replaces: W11402710)		Appelez-nous	-
15B	W11729252		Panel, Manifold End Cap (white (left))   (Replaces: W11402708)		Appelez-nous	-
15C	W11729251		Panel, Manifold End Cap (white (right))   (Replaces: W11402707)		Appelez-nous	-
1A	W11642080		Owners Manual		Appelez-nous	-
1B	W11639171		Tech Sheet		Appelez-nous	-
3A	W11435657		Spreader, Flame (left Rear)   (Replaces: W11352021)				$ 84.43
3B	W11435630		Spreader, Flame (right Front)   (Replaces: W11352018)			Immediately	$ 82.12
5A	W11729253		Panel, Manifold (white)   (Replaces: W11412238)		Appelez-nous	-
NI	W11707251		Harness, Bake And Broil   (Replaces: W11448086)				$ 79.95
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11244557		Screw   (Replaces: 3196173)				$ 14.29
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11729107		Harness, Main   (Replaces: W11374164)		Appelez-nous	-
