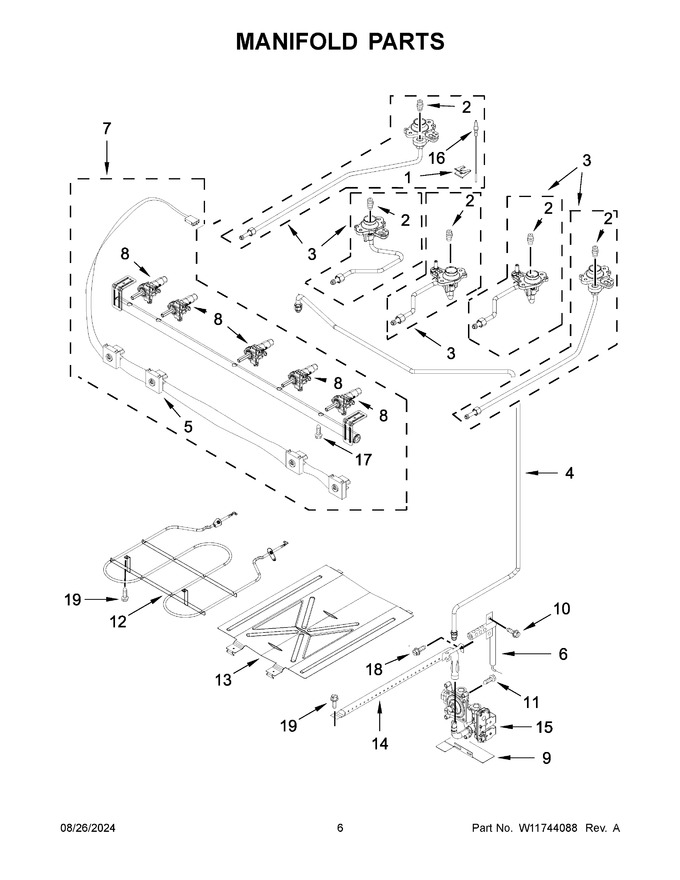

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
2	W11730297		Orifice (12k) (left Front And Left Rear)   (Replaces: W10849716)		Appelez-nous	-
3	W11728828		Orifice Holder Assembly (12k) (left Front)   (Replaces: W11300876)				$ 78.69
4	W11796249		Tubing (manifold To Regulator)   (Replaces: W11384792)				$ 131.31
5	W11727166		Harness, Igniter (includes Switches)   (Replaces: W11637977)				$ 143.34
6	W11524031		Electrode, Bake   (Replaces: W11450459)			Immediately	$ 56.90
7	W11729007		Manifold Assembly   (Replaces: W11279814)		Appelez-nous	-
8	W11747337		Valve, Gas (left Front And Left Rear)   (Replaces: W11630470)		Appelez-nous	-
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11684507		Screw   (Replaces: 3196385)				$ 14.27
11	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
12	W11847084		Element, Broiler   (Replaces: W10714060)				$ 117.89
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	W10898290		Regulator   (Replaces: W10818355)				$ 393.66
16	W11453940		Electrode (left Front And Left Rear)   (Replaces: W11428831)				$ 64.46
17	W11727164		Screw   (Replaces: W11402213)		Appelez-nous	-
18	3196265		Screw		Appelez-nous	-
19	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
16A	W11453920		Electrode (right Front, Right Rear, And Center)   (Replaces: W11428858)				$ 64.35
2A	W10849722		Orifice (18k) (right Front)		Appelez-nous	-
2B	W11677633		Orifice (5k) (right Rear)   (Replaces: W10849719)				$ 99.15
2C	W10907868		Orifice (10k) (center)				$ 90.69
3A	W11729008		Orifice Holder Assembly (12k) (left Rear)   (Replaces: W11341430)		Appelez-nous	-
3B	W11728388		Orifice Holder Assembly (18k) (right Front)   (Replaces: W11300879)			Immediately	$ 80.68
3C	W11727169		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11300867)		Appelez-nous	-
3D	W11728829		Orifice Holder Assembly (10k) (center)   (Replaces: W11300874)		Appelez-nous	-
8A	W11728580		Valve, Single (right Front And Center)   (Replaces: W11279839)			Immediately	$ 94.28
8B	W11728578		Valve, Single (right Rear)   (Replaces: W11279837)		Appelez-nous	-
NI	W11729238		Lp 5 Orifice Conversion Kit   (Replaces: W11370715)				$ 50.11
NI	W11763416		Orifice, Lp Bake   (Replaces: W10838304)				$ 52.11
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
