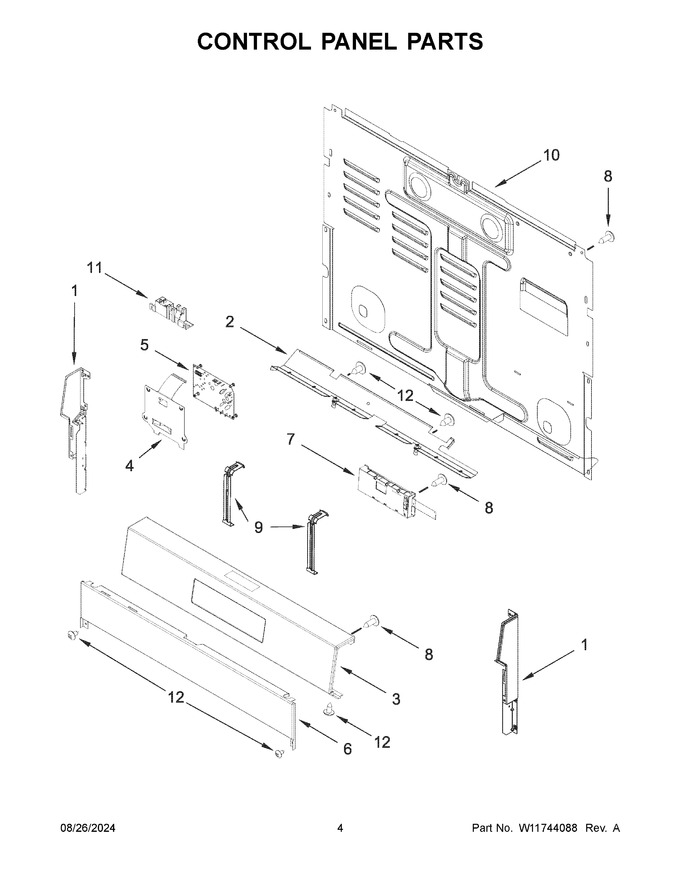

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11728322		Endcap (black (left))   (Replaces: W11625423)		Appelez-nous	-
2	W11730262		Shield, Heat   (Replaces: W11363806)				$ 87.08
3	W11745864		Panel, Control (black)   (Replaces: W11730187)		Appelez-nous	-
4	W11730340		Bracket, Mounting   (Replaces: W11285475)		Appelez-nous	-
5	W10898291		Module, Spark Dsi   (Replaces: W10818365)			Immediately	$ 365.64
6	W11730081		Panel, Lower (black)   (Replaces: W11625443)		Appelez-nous	-
7	W11729237		Control, Electronic (lcx) (black)   (Replaces: W11637093)		Appelez-nous	-
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
9	W11728256		Bracket, Control   (Replaces: W11371599)		Appelez-nous	-
10	W11729011		Cover, Back   (Replaces: W11624054)		Appelez-nous	-
11	W11703692		Spark Module   (Replaces: W11350452)			Immediately	$ 96.65
12	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
1A	W11728320		Endcap (black (right))   (Replaces: W11625420)				$ 117.71
1B	W11726987		Endcap (white (left))   (Replaces: W11625422)		Appelez-nous	-
1C	W11726989		Endcap (white (right))   (Replaces: W11625418)		Appelez-nous	-
3A	W11745865		Panel, Control (white)   (Replaces: W11730186)				$ 344.57
6A	W11726990		Panel, Lower (white)   (Replaces: W11625439)				$ 78.74
