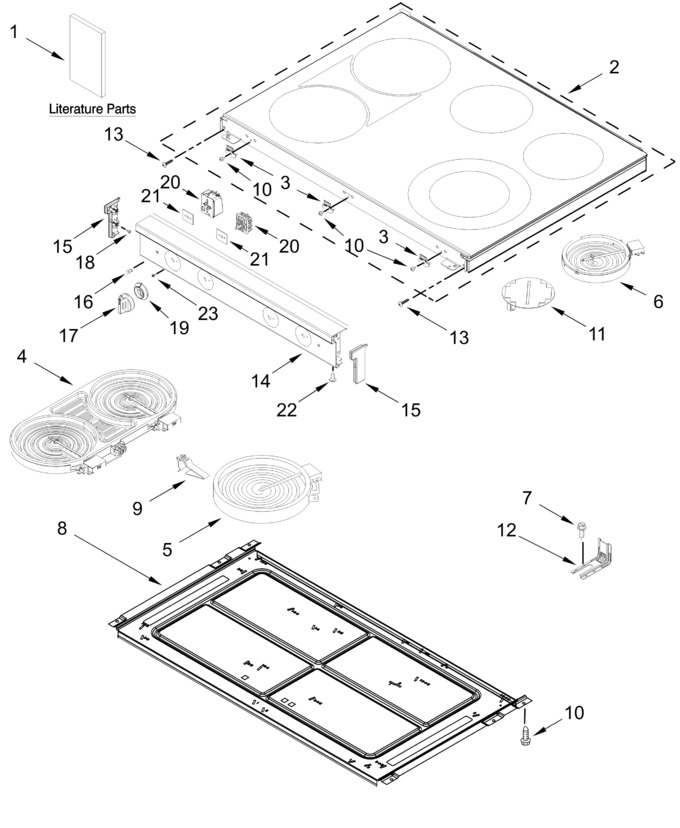

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11730427 | Cooktop (black, Includes Cooktop Bracket) (Replaces: W11629537) |
|
$ 1,238.23 | |||||
| 3 | W11730543 | Bracket, Cooktop (Replaces: W11593284) |
|
Immediately | $ 11.52 | ||||
| 4 | W11763590 | Bridge, (1800w, 800w) (Replaces: W11724301) |
|
$ 272.58 | |||||
| 5 | W11768719 | Element (dual, 3000w) (Replaces: W11735737) |
|
$ 184.49 | |||||
| 6 | W11747449 | Element (single, 1200w) (Replaces: W11724296) |
|
$ 165.20 | |||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | W11729951 | Pan, Radiant Element (Replaces: W11300812) |
|
$ 223.66 | |||||
| 9 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | W11706247 | Element, Warm Zone (Replaces: W11668631) |
|
Immediately | $ 133.94 | ||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 13 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 14 | W11730078 | Panel Upper, Manifold (stainless) (Replaces: W11393096) |
|
$ 384.21 | |||||
| 15 | W11730268 | Endcap (stainless, Left) (Replaces: W11386024) |
|
$ 84.98 | |||||
| 16 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 17 | W11730076 | Knob (stainless, Single) (Replaces: W11635836) |
|
Immediately | $ 101.49 | ||||
| 18 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 19 | W11730073 | Bezel (stainless) (Replaces: W11635850) |
|
Immediately | $ 63.40 | ||||
| 20 | W10857622 | Switch, Infinite (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 21 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 23 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| W10911303 | Switch, Infinite (Replaces: W10578768) |
|
Immediately | $ 104.64 | |||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11729957 | Harness, Wire (Replaces: W11393541) |
|
Immediately | $ 232.13 | |||||
| ARI130620F5738F97FA53E648D69A4CE80B | (left Front, Left Rear) |
|
- | ||||||
| ARI9E076A4EB9AA7BF3DBA6ED9D0C1B5D12 | (center Rear) |
|
- | ||||||
| W11730267 | Endcap (stainless, Right) (Replaces: W11386023) |
|
$ 84.98 | ||||||
| W11729954 | Harness, Front Dual (Replaces: W11341202) |
|
$ 300.25 | ||||||
| W11729968 | Harness, Cooktop (Replaces: W11341267) |
|
$ 226.79 | ||||||
| W11730072 | Harness, Main (Replaces: W11334457) |
|
- | ||||||
| W11661906 | Switch, Infinite (Replaces: W10843843) |
|
Immediately | $ 19.59 | |||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11729952 | Harness, Hidden Bake (Replaces: W11585874) |
|
$ 61.80 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11639164 | Tech, Sheet |
|
- | ||||||
| W11638635 | Owners Manual |
|
- | ||||||
| W11638798 | Quick Start Guide |
|
- | ||||||
| W11730074 | Knob (stainless, Dual) (Replaces: W11635837) |
|
$ 68.40 | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- |
