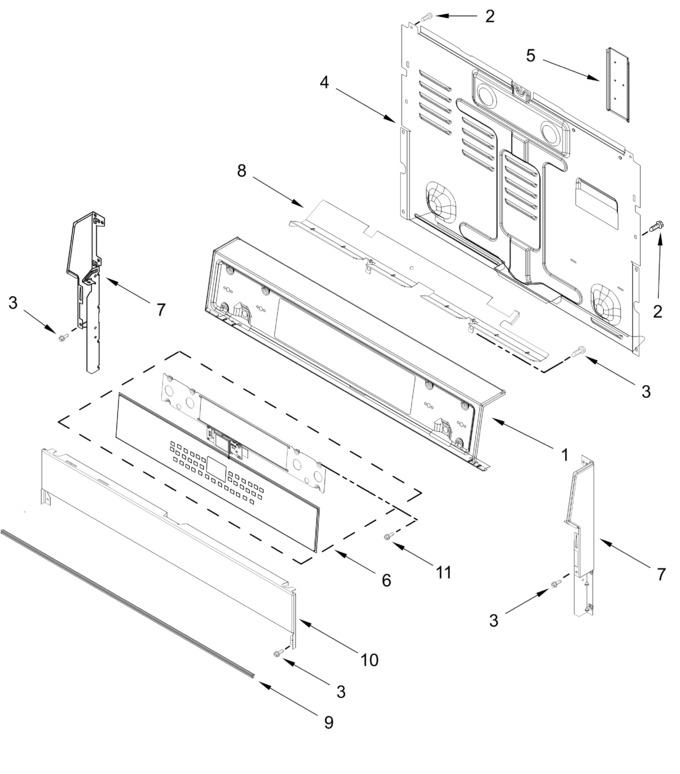

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11730261 | Console (stainless) (Replaces: W11371988) |
|
$ 376.41 | |||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 4 | W11729935 | Cover, Upper Rear (Replaces: W11392241) |
|
Immediately | $ 132.02 | ||||
| 5 | W11729912 | Cover, Rear Flue (Replaces: W11394231) |
|
Immediately | $ 106.53 | ||||
| 6 | W11729976 | Assembly, User Interface (Replaces: W11400085) |
|
$ 550.14 | |||||
| 7 | W11728322 | Console, Endcap (black, Left) (Replaces: W11625423) |
|
- | |||||
| 8 | W11730262 | Shield, Heat (Replaces: W11363806) |
|
$ 87.08 | |||||
| 9 | W11728258 | Gasket, Lower Panel (Replaces: W11643797) |
|
$ 58.00 | |||||
| 10 | W11729961 | Panel, Lower (stainless) (Replaces: W11625404) |
|
$ 218.80 | |||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| W11728320 | Console, Endcap (black, Right) (Replaces: W11625420) |
|
$ 117.71 |
