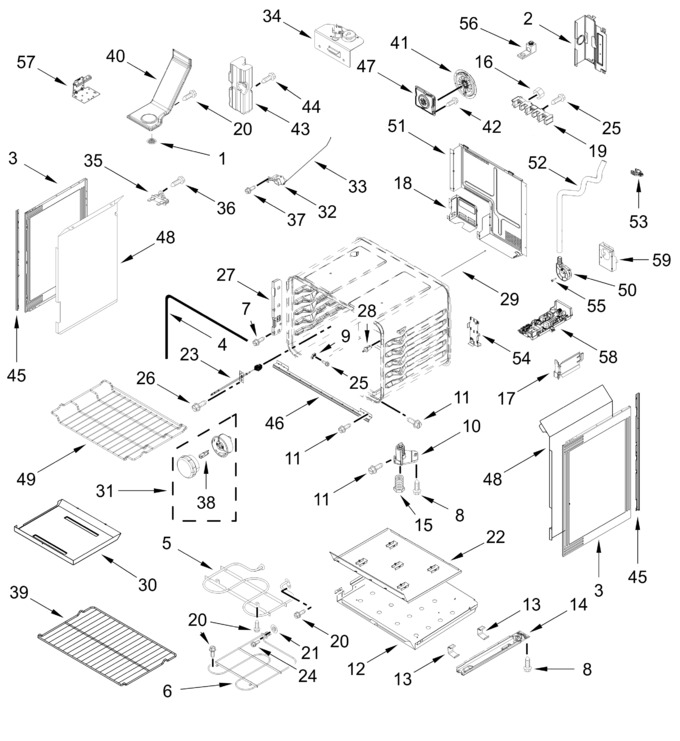

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11268772 | Screen, Vent (Replaces: W11092984) |
|
Immediately | $ 218.56 | ||||
| 2 | W11729254 | Bracket, Service (Replaces: W11391997) |
|
Immediately | $ 73.05 | ||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W11445467) |
|
Immediately | $ 178.50 | ||||
| 4 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 50.20 | ||||
| 5 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 6 | WP9755770 | Element, Bake (Replaces: 9755770) |
|
Immediately | $ 117.66 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 9 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 10 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 12 | W11729933 | Tray, Insulation (Replaces: W11309796) |
|
- | |||||
| 13 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 14 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 15 | WPW10058460 | Foot, Leveling (rear) (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 16 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 17 | W10404688 | Clip, Oven Support |
|
$ 17.69 | |||||
| 18 | W11729938 | Corner, Cover (Replaces: W11596201) |
|
$ 50.47 | |||||
| 19 | W11736123 | Block, Terminal (without Ground Strap) (Replaces: W11750818) |
|
$ 16.13 | |||||
| 20 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 21 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 8.36 | ||||
| 22 | W11729934 | Shield, Heat (Replaces: W11310684) |
|
- | |||||
| 23 | W11730224 | Sensor (Replaces: W11633068) |
|
Immediately | $ 48.92 | ||||
| 24 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 25 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 26 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 27 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 28 | W11620712 | Switch, Door (Replaces: W11511828) |
|
$ 46.31 | |||||
| 29 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 30 | W10183712 | Tray, Hidden Bake |
|
$ 243.95 | |||||
| 31 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 40.75 | ||||
| 32 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 256.36 | |||||
| 33 | W10078370 | Rod, Push Latch |
|
$ 95.24 | |||||
| 34 | WPW10107820 | Rear Door Latch Assembly (Replaces: W10107820) |
|
$ 309.55 | |||||
| 35 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 36 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 37 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 38 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 39 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 46.84 | ||||
| 40 | W11729939 | Tube, Vent (Replaces: W11366092) |
|
- | |||||
| 41 | W11730307 | Fan, Convection (includes Element) (Replaces: W11635909) |
|
$ 243.51 | |||||
| 42 | W10516115 | Screw |
|
$ 14.52 | |||||
| 43 | W11135752 | Counterweight (Replaces: W10910404) |
|
Immediately | $ 153.79 | ||||
| 44 | W11135756 | Screw (Replaces: W11034869) |
|
$ 14.73 | |||||
| 45 | W11510561 | Barrier Rail, Rubber (front Left) |
|
$ 74.87 | |||||
| 46 | W11464547 | Bracket, Front Frame |
|
$ 45.89 | |||||
| 47 | W11730217 | Cover, Conv Fan (Replaces: W11373155) |
|
- | |||||
| 48 | W11379353 | Retainer, Insulation (left) |
|
- | |||||
| 49 | W11730235 | Rack, Oven (max) (Replaces: W11607819) |
|
Immediately | $ 108.09 | ||||
| 50 | W11789142 | Blower (Replaces: W11637957) |
|
$ 96.69 | |||||
| 51 | W11729937 | Side, Fan Cover (Replaces: W11367541) |
|
- | |||||
| 52 | W11729918 | Blower, Tube (Replaces: W11411632) |
|
$ 151.42 | |||||
| 53 | W11729920 | Tube, Clamp (Replaces: W11642475) |
|
$ 34.58 | |||||
| 54 | W11729919 | Bracket, Acu (Replaces: W11365827) |
|
$ 77.10 | |||||
| 55 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 56 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| 57 | W11727012 | Bracket, Cooktop Console (Replaces: W11287215) |
|
- | |||||
| 58 | W11759576 | Control, Electronic (Replaces: W11734471) |
|
$ 295.70 | |||||
| 59 | W11784052 | Blower Bracket (Replaces: W11356881) |
|
- | |||||
| W11729932 | Insulation, Flue (Replaces: W11404469) |
|
$ 32.77 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | ||||||
| W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | ||||||
| W11379943 | Retainer, Insulation (right) |
|
- | ||||||
| 4820F01559 | Insulation, Strap |
|
- | ||||||
| W11161831 | Insulation, Wrap (Replaces: W10774939) |
|
Immediately | $ 116.41 | |||||
| W11510562 | Barrier Rail, Rubber (front Right) |
|
$ 74.87 | ||||||
| W10646923 | Card, Insulator |
|
$ 19.57 | ||||||
| W11729936 | Insulation, Back (Replaces: W11407378) |
|
$ 123.47 |
