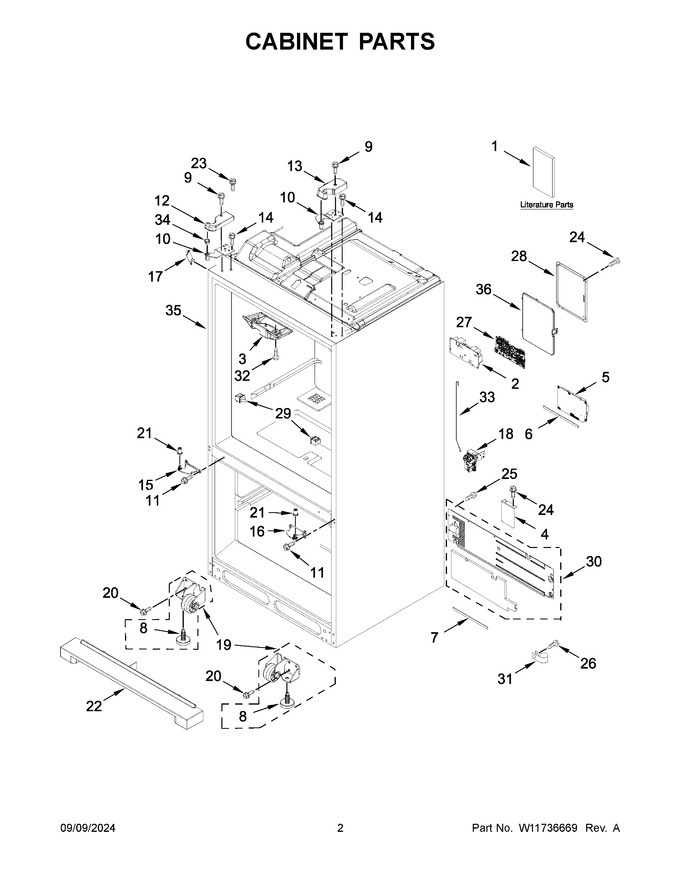

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11717558 | Tech Sheet |
|
- | |||||
| 2 | WPW10624574 | Supply, Power (Replaces: W10624574) |
|
Immediately | $ 231.58 | ||||
| 3 | W10734555 | Block, Pivot |
|
$ 18.02 | |||||
| 4 | W10336736 | Cover, Roller (Replaces: W11578005) |
|
- | |||||
| 5 | WPW10675033 | Board, Control (Replaces: W10811365) |
|
Immediately | $ 303.92 | ||||
| 6 | W10415341 | Gasket, Hv Box |
|
$ 37.00 | |||||
| 7 | W11534848 | Gasket |
|
Immediately | $ 22.34 | ||||
| 8 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11027247 | Hinge, Top (left Hand) |
|
Immediately | $ 69.66 | ||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | W10781436 | Cover, Top Hinge Left Hand (grey) |
|
$ 21.43 | |||||
| 13 | W10709866 | Cover, Top Hinge Right Hand (grey) |
|
$ 20.37 | |||||
| 14 | W11126052 | Screw (Replaces: W10731474) |
|
Immediately | $ 14.73 | ||||
| 15 | W11122872 | Hinge, Center Left Hand (grey) (Replaces: W10691675) |
|
$ 85.19 | |||||
| 16 | W11167119 | Hinge, Center Right Hand (grey) (Replaces: W10691701) |
|
$ 81.77 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | W11482025 | Valve, Water (Replaces: W11460084) |
|
Immediately | $ 218.60 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | W11223833 | Bushing (Replaces: W10831587) |
|
Immediately | $ 15.83 | ||||
| 22 | W10911309 | Grille, Toe (grey) (Replaces: W10707958) |
|
$ 134.20 | |||||
| 23 | W11214483 | Screw (Replaces: 12992601) |
|
$ 14.72 | |||||
| 24 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 25 | W10141518 | Screw |
|
$ 9.54 | |||||
| 26 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 27 | W10804160 | Supply, Led Power (Replaces: W10788814) |
|
Immediately | $ 267.97 | ||||
| 28 | W10754591 | Cover, Hv Control Box |
|
$ 111.45 | |||||
| 29 | W11289496 | Switch, Light (Replaces: W10847850) |
|
Immediately | $ 38.71 | ||||
| 30 | W11482027 | Assembly, Unit Cover (Replaces: W11364644) |
|
Immediately | $ 121.36 | ||||
| 31 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 32 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 33 | W11482381 | Tube, Water (Replaces: W11296599) |
|
Immediately | $ 112.35 | ||||
| 34 | W10705239 | Retainer, Door |
|
Immediately | $ 51.64 | ||||
| 35 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 36 | W10277839 | Lid, Hv |
|
$ 73.91 | |||||
| 10A | W11736793 | Hinge, Top (right Hand) (Replaces: W11027248) |
|
$ 70.42 | |||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 1A | W11502338 | Owners Manual |
|
- | |||||
| 1B | W11647505 | Energy Guide |
|
- |
