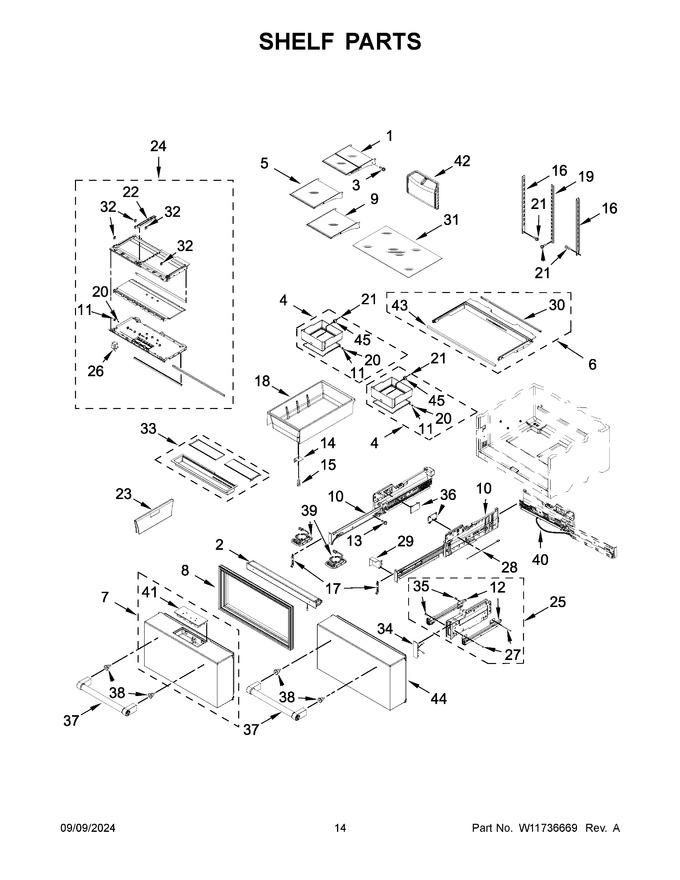

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10737428 | Assembly, Tuck Shelf (Replaces: W10737428) |
|
Immediately | $ 395.52 | ||||
| 2 | W11484637 | Assembly, Secondary Mullion (grey) (Replaces: W11374500) |
|
- | |||||
| 3 | W11400994 | Screw (Replaces: W10325002) |
|
$ 13.44 | |||||
| 4 | W11028624 | Assembly, Crisper (Replaces: W10801137) |
|
$ 238.15 | |||||
| 5 | W11245713 | Assembly, Lighted Shelf (Replaces: W11088993) |
|
Immediately | $ 427.36 | ||||
| 6 | W11561069 | Assembly, Crisper Cover (Replaces: W10847515) |
|
$ 218.82 | |||||
| 7 | W10815669 | Door, Pantry Left Hand (includes Item 8) (stainless) (Replaces: W10733263) |
|
$ 1,003.95 | |||||
| 8 | W10832386 | Gasket, Pantry (grey) (Replaces: W10685868) |
|
$ 337.73 | |||||
| 9 | W10807832 | Assembly, Shelf (Replaces: W10756314) |
|
$ 285.74 | |||||
| 10 | W11397195 | Adapter, Pantry (left Hand) (Replaces: W11294509) |
|
Immediately | $ 263.67 | ||||
| 11 | W10788795 | Roller |
|
$ 20.60 | |||||
| 12 | W11242545 | Glide, Compact (also Order Items 27 And 35) (left Hand) |
|
$ 292.19 | |||||
| 13 | WP98006631 | Screw (Replaces: 98006631) |
|
$ 7.30 | |||||
| 14 | W10704335 | Clip, Drawer Body |
|
$ 15.34 | |||||
| 15 | W10664603 | Screw |
|
$ 14.47 | |||||
| 16 | W10719660 | Ladder, Side |
|
$ 196.61 | |||||
| 17 | W10732765 | Clip, Glide Door |
|
$ 18.74 | |||||
| 18 | W10730610 | Drawer, Pantry |
|
$ 144.28 | |||||
| 19 | W10467461 | Ladder, Center (Replaces: W10719661) |
|
Immediately | $ 52.31 | ||||
| 20 | 67006692 | Screw (Replaces: 12991401) |
|
$ 10.79 | |||||
| 21 | WPW10666373 | Screw (Replaces: W10666373) |
|
$ 20.86 | |||||
| 22 | W10638123 | Guide, Crisper |
|
$ 292.10 | |||||
| 23 | W11026309 | Divider, Pantry Pan (Replaces: W10709891) |
|
$ 47.36 | |||||
| 24 | W11215631 | Assembly, Floor |
|
$ 238.05 | |||||
| 25 | W11294548 | Assembly, Pantry Center Adapter |
|
Immediately | $ 121.34 | ||||
| 26 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 27 | W10737605 | Screw |
|
$ 10.55 | |||||
| 28 | W11168403 | Thermistor (Replaces: W10549991) |
|
$ 86.14 | |||||
| 29 | W10711821 | Cover, Connector |
|
$ 111.01 | |||||
| 30 | W10493547 | Support, Crisper Rear |
|
- | |||||
| 31 | W11038526 | Glass, Crisper (Replaces: W10893770) |
|
$ 263.10 | |||||
| 32 | 12702901 | Pad, Glide |
|
- | |||||
| 33 | W11175820 | Assembly, Secondary Mullion Bin (Replaces: W10634635) |
|
$ 227.79 | |||||
| 34 | W10830861 | Assembly, Mullion Cover (grey) (Replaces: W10733546) |
|
$ 81.68 | |||||
| 35 | W10737730 | Nut, Rivet |
|
$ 15.14 | |||||
| 36 | W10731491 | Cover, Side Adapter |
|
$ 110.32 | |||||
| 37 | W11499659 | Handle, Door (stainless) (Replaces: W11339146) |
|
$ 182.08 | |||||
| 38 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 39 | W11483116 | Assembly, Led Light Module (Replaces: W11228040) |
|
Immediately | $ 21.81 | ||||
| 40 | W11170612 | Harness, Side Adapter (Replaces: W10512203) |
|
Immediately | $ 82.35 | ||||
| 41 | WPW10769076 | Interface, User (stainless) (Replaces: W10769076) |
|
Immediately | $ 457.00 | ||||
| 42 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 17.15 | ||||
| 43 | W10847369 | Support, Front |
|
$ 113.01 | |||||
| 44 | W10815678 | Door, Pantry Right Hand (includes Item 8) (stainless) (Replaces: W10738904) |
|
$ 1,042.44 | |||||
| 45 | W11728927 | Spacer, Crisper Handle (Replaces: W11694798) |
|
$ 13.72 | |||||
| 10A | W11409809 | Adapter, Pantry (right Hand) (Replaces: W11294512) |
|
Immediately | $ 215.59 | ||||
| 12A | W11242573 | Glide, Compact (also Order Items 27 And 35) (right Hand) |
|
$ 291.31 |
