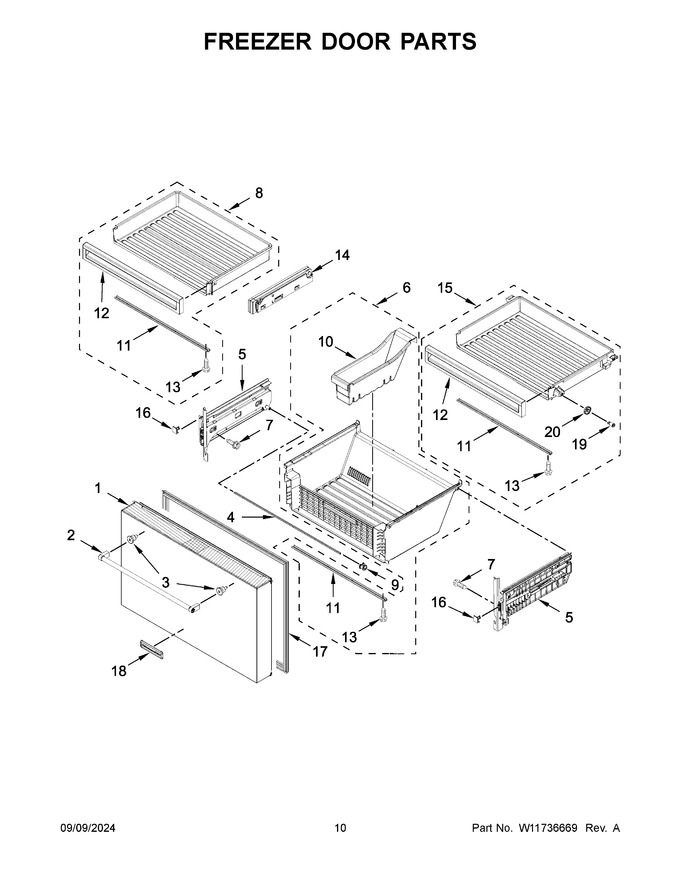

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10815701 | Door, Freezer (includes Item 17) (stainless) (Replaces: W10634624) |
|
$ 1,225.78 | |||||
| 2 | W11488944 | Handle, Door (stainless) (Replaces: W11339142) |
|
Immediately | $ 184.42 | ||||
| 3 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 4 | WPW10503522 | Shaft (Replaces: W10503522) |
|
$ 98.10 | |||||
| 5 | W11668672 | Assembly, Bracket (left Hand) (Replaces: W10795771) |
|
Immediately | $ 469.92 | ||||
| 6 | W10634640 | Assembly, Lower Pan (freezer) |
|
$ 165.31 | |||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 8 | W11387053 | Assembly, Upper Pan (freezer) (Replaces: W11238210) |
|
Immediately | $ 122.82 | ||||
| 9 | W10852685 | Clip, Shaft (Replaces: W10709748) |
|
$ 11.39 | |||||
| 10 | W10562492 | Divider, Lower |
|
$ 108.21 | |||||
| 11 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 155.10 | ||||
| 12 | W11336585 | Assembly, Pan Front (Replaces: W10564680) |
|
$ 249.71 | |||||
| 13 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 8.33 | ||||
| 14 | W11131390 | Adapter, Upper Pan (left Hand) (Replaces: W10619221) |
|
$ 99.18 | |||||
| 15 | W11387048 | Assembly, Center Pan (freezer) (Replaces: W11238188) |
|
Immediately | $ 138.26 | ||||
| 16 | W10585151 | Stop, Pan (left Hand) |
|
$ 86.03 | |||||
| 17 | W10407216 | Gasket, Door (grey) (Replaces: W10248749) |
|
Immediately | $ 267.66 | ||||
| 18 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 19 | W11573594 | Axle, Roller (Replaces: W10643690) |
|
$ 19.14 | |||||
| 20 | W11578839 | Roller, Pan (Replaces: W10248555) |
|
$ 14.96 | |||||
| 14A | W11161915 | Adapter, Upper Pan (right Hand) (Replaces: W10619220) |
|
Immediately | $ 110.28 | ||||
| 16A | W10585150 | Stop, Pan (right Hand) |
|
$ 86.09 | |||||
| 5A | W11668672 | Assembly, Bracket (right Hand) (Replaces: W10795769) |
|
Immediately | $ 469.92 |
