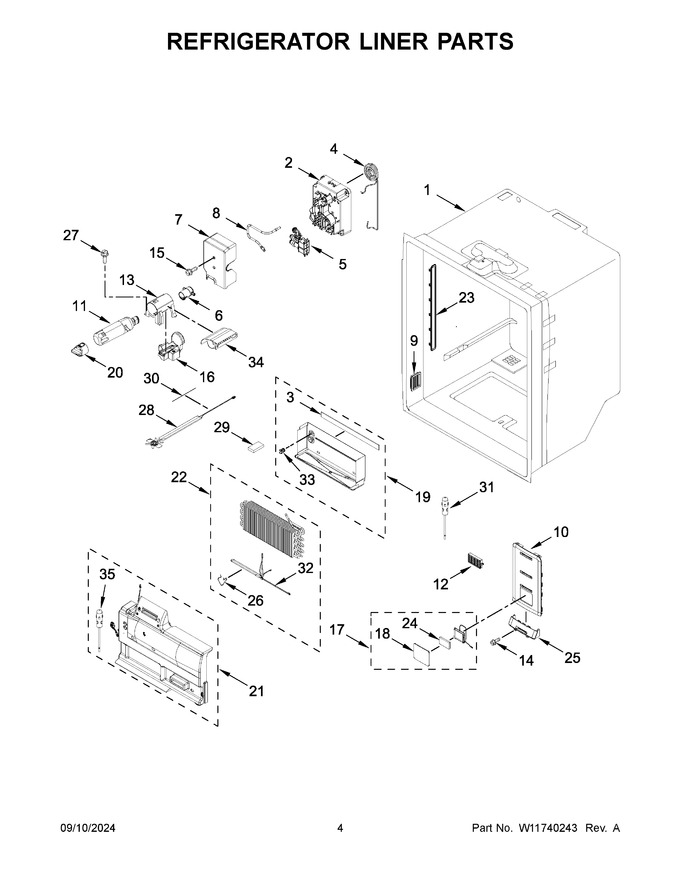

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI8B23AD81B97D70C7853D17BAA6EEAA2D | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10708473 | Housing, Water Tank |
|
$ 107.56 | |||||
| 3 | W11159756 | Gasket, Heat Shield (Replaces: W10921470) |
|
- | |||||
| 4 | W11451365 | Reservoir, Water (includes Filter Heater, Wire Ties, And Sealing Gaskets) |
|
Immediately | $ 194.94 | ||||
| 5 | W11567408 | Valve, Dual Water (Replaces: W11422857) |
|
Immediately | $ 87.86 | ||||
| 6 | W11451366 | Housing, Water Filter (includes Filter Heater And Sealing Gaskets) |
|
Immediately | $ 140.83 | ||||
| 7 | W10900010 | Cover, Water Valve |
|
Immediately | $ 112.72 | ||||
| 8 | W11727946 | Tube, Water Filter (Replaces: W11517696) |
|
Immediately | $ 80.61 | ||||
| 9 | W10718061 | Cover, Cooling Duct |
|
$ 102.23 | |||||
| 10 | W11312192 | Cover, Tower (Replaces: W11259413) |
|
- | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 14.34 | ||||
| 13 | W11189600 | Bracket, Filter (Replaces: W10708474) |
|
$ 74.42 | |||||
| 14 | W10119266 | Screw |
|
$ 12.71 | |||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 16 | W11348541 | Insulation, Under Filter |
|
$ 35.44 | |||||
| 17 | W11803610 | Assembly, Air Filter (Replaces: W10766881) |
|
$ 86.68 | |||||
| 18 | W10704470 | Cover, Air Filter |
|
- | |||||
| 19 | W11090564 | Assembly, Heat Shield |
|
$ 70.51 | |||||
| 20 | W11189114 | Cap, Filter (Replaces: W10719253) |
|
Immediately | $ 46.67 | ||||
| 21 | W11611001 | Assembly, Evaporator Cover (includes Fan Motor, Wire Assembly And Thermistor) (Replaces: W11475755) |
|
$ 579.05 | |||||
| 22 | W11567406 | Assembly, Evaporator (also Order The Following Lokring⢠Parts) (Replaces: W11337778) |
|
Immediately | $ 391.83 | ||||
| 23 | W11442049 | Assembly, Side Lamp (Replaces: W11381922) |
|
- | |||||
| 24 | W10673897 | Insulator, Foam (Replaces: W10831305) |
|
$ 32.53 | |||||
| 25 | W10716179 | Base, Tower Cover |
|
- | |||||
| 26 | W11493401 | Clip, Evaporator Heater |
|
- | |||||
| 27 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 28 | W11024084 | Heater, Filter (Replaces: W11503903) |
|
Immediately | $ 140.89 | ||||
| 29 | W10818463 | Gasket, Evaporator Air Dam |
|
$ 27.75 | |||||
| 30 | W10910632 | Gasket, Sealing (Replaces: W10901792) |
|
- | |||||
| 31 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 33.60 | ||||
| 32 | W11567407 | Heater, Defrost (Replaces: W11485746) |
|
$ 140.48 | |||||
| 33 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 34 | W11307147 | Cover, Filter |
|
$ 103.10 | |||||
| 35 | W11708100 | Evaporator Thermistor With Clip (Replaces: W11430953) |
|
- | |||||
| 22A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 46.52 | ||||
| 22B | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| NI | W11440889 | Assembly, Valve Wire |
|
$ 109.24 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
