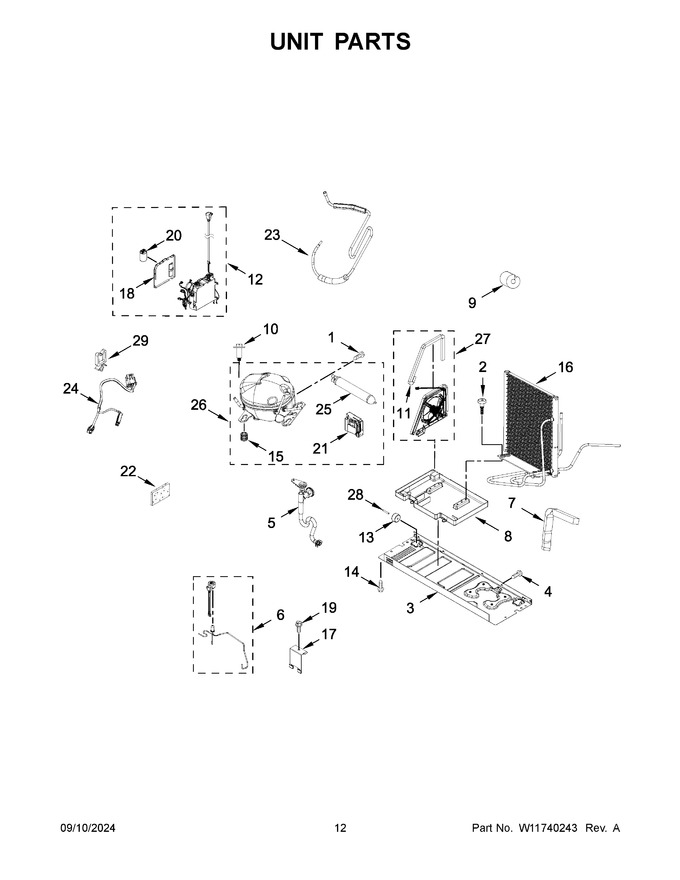

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141625 | Screw (Replaces: W10141625) |
|
$ 22.22 | |||||
| 2 | W10820084 | Screw |
|
- | |||||
| 3 | W11449163 | Baseplate |
|
- | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | W11745619 | Assembly, Drain Extension (Replaces: W11541629) |
|
- | |||||
| 6 | W11574310 | Assembly, 3 Way Valve (also Order The Following Lokring⢠Parts) (Replaces: W11507092) |
|
$ 114.42 | |||||
| 7 | W11706809 | Pad, Sound (Replaces: W11492318) |
|
$ 70.73 | |||||
| 8 | W11490557 | Tray, Evaporator |
|
$ 114.48 | |||||
| 9 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 10 | W11417341 | Screw |
|
$ 14.07 | |||||
| 11 | W10683708 | Gasket, Condenser Fan |
|
- | |||||
| 12 | W11567409 | Assembly, Orion Box(include Wiring Harness For Compressor And Power Cord) (Replaces: W11434429) |
|
$ 491.21 | |||||
| 13 | W10774846 | Roller |
|
$ 90.76 | |||||
| 14 | 12992101 | Screw |
|
- | |||||
| 15 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 16 | W11567329 | Condenser (also Order The Following Lokring⢠Parts) (Replaces: W11598591) |
|
$ 231.59 | |||||
| 17 | W10391376 | Bracket, Valve |
|
$ 35.03 | |||||
| 18 | W11198954 | Cover, Housing |
|
- | |||||
| 19 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 20 | W10738041 | Filter, Emi |
|
$ 52.31 | |||||
| 21 | W11578028 | Assembly, Inverter Box (Replaces: W11515300) |
|
Immediately | $ 391.60 | ||||
| 22 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 23 | W11646687 | Assembly, Suction Tube (Replaces: W11599667) |
|
$ 104.46 | |||||
| 24 | W11440595 | Harness, Unit (condenser Fan) |
|
Immediately | $ 111.62 | ||||
| 25 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring⢠Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 26 | W11578205 | Compressor (also Order The Following Lokring⢠Parts) (Replaces: W11515413) |
|
$ 610.14 | |||||
| 27 | W11574308 | Assembly, Condenser Fan (Replaces: W11509191) |
|
Immediately | $ 233.19 | ||||
| 28 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 29 | W11233642 | Clip (Replaces: 2223913) |
|
- | |||||
| 16A | W11504445 | 5/4 Nr Ms 00 (3-way Valve To Drier) |
|
Immediately | $ 28.92 | ||||
| 16B | W11504431 | 7/5 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 27.13 | ||||
| 25A | W11504445 | 5/4 Nr Ms 00 (3-way Valve To Drier) |
|
Immediately | $ 28.92 | ||||
| 25B | W11506623 | 5 Nk Ms 00 (3-way Valve To Drier) |
|
Immediately | $ 22.00 | ||||
| 26A | W11504431 | 7/5 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 27.13 | ||||
| 26B | W11504415 | 8.5/8 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 25.89 | ||||
| 26C | W11506621 | 6 Nk Ms 00 (charging Tube To Compressor) |
|
Immediately | $ 22.00 | ||||
| 26D | W11506635 | Tube, Charging (1/4 In W/ Schrader Valve) |
|
Immediately | $ 37.03 | ||||
| 6A | W11506625 | 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) |
|
Immediately | $ 20.94 | ||||
| 6B | W11506625 | 3 Nk Ms 00 (3-way Valve To Rc Capillary Tube - Cut/splice Near Old Valve Body) |
|
Immediately | $ 20.94 | ||||
| 6C | W11504445 | 5/4 Nr Ms 00 (3-way Valve To Drier) |
|
Immediately | $ 28.92 | ||||
| NI | ARIF9EF3E505B7CEB5AB5525882DBF27D97 | Refrigerant Charge 56 Grams (r600a) |
|
- |
