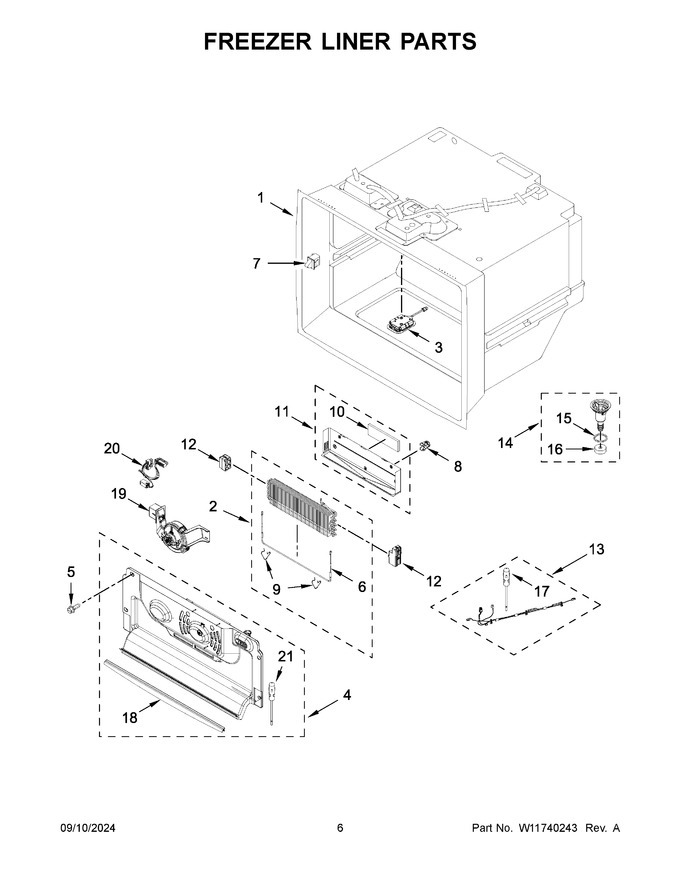

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI9208FF59B665205FA02090F61BA46518 Liner (not A Seviceable Part) Appelez-nous -
2 W11565768 Assembly, Evaporator (also Order The Following Lokring™ Parts)   (Replaces: W11394385) Special Order $ 386.16

3 W11483116 Assembly, Led Light Module   (Replaces: W11228040) In-Stock Immediately $ 21.81

4 W11394920 Assembly, Evaporator Cover (includes Fan Motor And Wire Assembly)   (Replaces: W11209447) In-Stock Immediately $ 333.10

5 67006425 Screw   (Replaces: 12990511) In-Stock Immediately $ 7.30

6 W11384694 Heater, Defrost Special Order $ 209.25

7 W11384469 Switch, Rocker   (Replaces: W10847853) In-Stock Immediately $ 39.09

8 10623002 Clip, Evaporator Special Order $ 12.11

9 W11459749 Clip, Defrost Heater Appelez-nous -
10 W10683540 Gasket, Drip Tray Rear Special Order $ 24.72

11 W11483266 Sheild, Fc Heat Special Order $ 80.82

12 W11483265 Dam, Air (left Hand) Appelez-nous -
13 W11715973 Assembly, Evaporator Heater Wire (includes Thermistor)   (Replaces: W11410826) Special Order $ 102.80

14 W10503218 Assembly, Drain Funnel In-Stock Immediately $ 18.64

15 WPM0500703 Seal   (Replaces: M0500703) Special Order $ 11.47

16 WPB8381501 Gasket, Drain   (Replaces: B8381501) Special Order $ 7.78

17 W11318270 Thermistor   (Replaces: W10797088) In-Stock Immediately $ 120.13

18 W10770923 Seal, Crisp Front Special Order $ 28.56

19 W11407678 Assembly, Icebox Fan   (Replaces: W11206828) In-Stock Immediately $ 197.69

20 W10911358 Assembly, Evaporator Jumper Wire Special Order $ 136.12

21 W11724692 Thermistor   (Replaces: W10280385) In-Stock Immediately $ 33.60

12A W10668198 Dam, Air (right Hand) Special Order $ 52.42

2A W11506620 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) In-Stock Immediately $ 32.10

2B W11506620 8 Nk Al 00 (capillary Tube To Evaporator - Cut/splice On Aluminum Portion Of Old Evaporator) In-Stock Immediately $ 32.10


    View Diagram in Separate Window     Print Icon   Print Part List
