01 - Cover Sheet
02 - Cabinet Parts

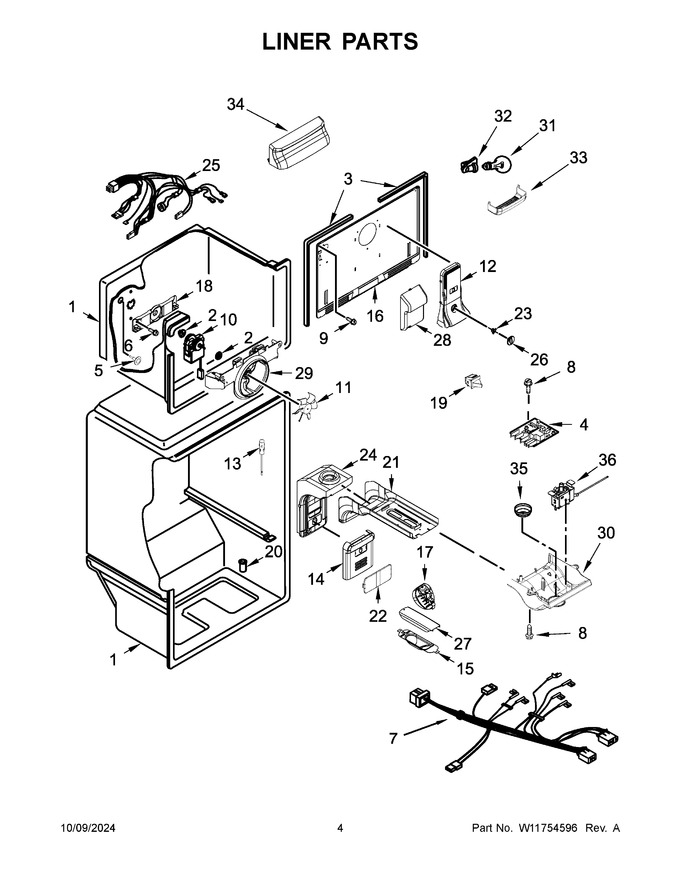

03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARIAC1E7B561513C5BE406C5B6330205809 | Liner (not Serviced) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 28.12 | |||||
| 4 | W11616408 | Adaptive Defrost Control (Replaces: W11438735) |
|
$ 328.63 | |||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | W11476624 | Wire Assembly, Control Box |
|
- | |||||
| 8 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 83.25 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | W11126274 | Assembly, Air Tower (fc) (Replaces: W10654834) |
|
$ 172.00 | |||||
| 13 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 14 | W10609502 | Cup, Air Diffuser |
|
$ 39.89 | |||||
| 15 | W10300161 | Shield, Light |
|
Immediately | $ 96.62 | ||||
| 16 | W11515911 | Cover, Evaporator |
|
$ 196.99 | |||||
| 17 | W11577968 | Module, Led (Replaces: W11429584) |
|
Immediately | $ 46.58 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 75.44 | ||||
| 19 | W11727836 | Switch, Light (Replaces: W11514900) |
|
Immediately | $ 24.73 | ||||
| 20 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 99.15 | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 114.36 | |||||
| 22 | W10336009 | Cup, Screw |
|
$ 77.40 | |||||
| 23 | W11206112 | Baffle, Air Manual (Replaces: W10662269) |
|
$ 85.54 | |||||
| 24 | W11829838 | Assembly, Multiflow (Replaces: W10883330) |
|
$ 77.33 | |||||
| 25 | W11616409 | Assembly, Evaporator Fan Wire (includes Defrost Bi-metal) (Replaces: W11314511) |
|
$ 82.76 | |||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 91.85 | |||||
| 27 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 117.96 | |||||
| 28 | W11562261 | Cover, Water Tube (Replaces: W11341625) |
|
$ 7.90 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | W11476576 | Box, Control (includes Overlay) |
|
- | |||||
| 31 | W11518235 | Lamp, Led (Replaces: W11160686) |
|
Immediately | $ 29.29 | ||||
| 32 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 33 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 34 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 95.34 | ||||
| 35 | W10716304 | Knob, Control |
|
- | |||||
| 36 | W11608693 | Assembly, Thermostat (Replaces: W11514634) |
|
$ 113.67 |
