View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

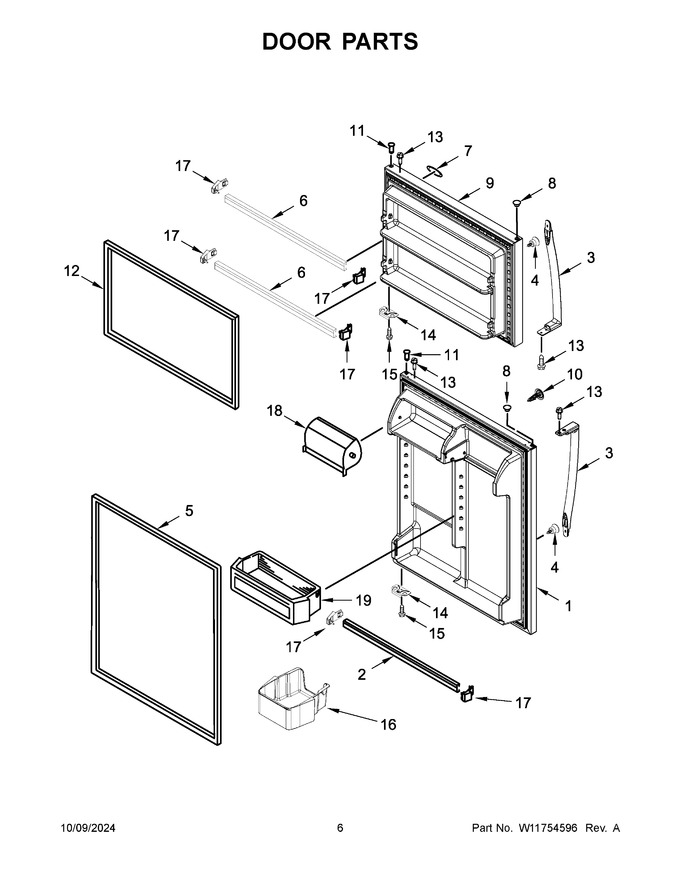

| 1 | LW10648584 | Refrigerator Door (includes Door Gasket) (stainless) (Replaces: W10648584) |
|
$ 959.70 | |||||
| 2 | W11126062 | Trim, Door (Replaces: W10592148) |
|
$ 127.34 | |||||
| 3 | W10837029 | Handle, Door (stainless) (Replaces: W10653471) |
|
Immediately | $ 188.68 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | W10249195 | Gasket, Door (grey) (Replaces: W11406600) |
|
$ 335.80 | |||||
| 6 | W10592150 | Trim, Door |
|
$ 125.96 | |||||
| 7 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 8 | WP2254517 | Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 9 | LW10648583 | Freezer Door (includes Door Gasket) (stainless) (Replaces: W10648583) |
|
$ 938.99 | |||||
| 10 | W10830982 | Plug, Hole (grey) (Replaces: W10663739) |
|
Immediately | $ 19.54 | ||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 12 | W10249196 | Gasket, Door (grey) (Replaces: W11406598) |
|
Immediately | $ 279.10 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 14 | W11745278 | Bracket, Door Stop (left Hand) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 16 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 72.18 | ||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 55.68 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 34.34 | |||||
| 19 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 89.09 |
