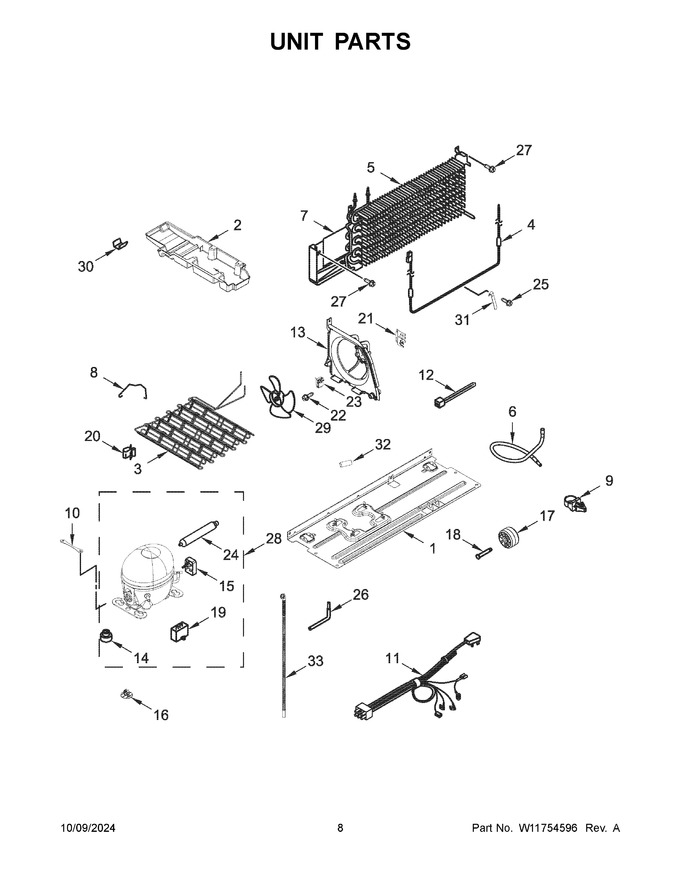

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11396825 | Baseplate |
|
$ 140.15 | |||||
| 2 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 151.95 | |||||
| 3 | W10609393 | Condenser (also Order The Following Lokring⢠Parts) |
|
$ 218.10 | |||||
| 4 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 89.77 | ||||
| 5 | W11578004 | Assembly, Evaporator (also Order The Following Lokring⢠Parts) (Replaces: W11282685) |
|
Immediately | $ 221.31 | ||||
| 6 | W11741026 | Tube, Suction (Replaces: W11518248) |
|
$ 60.33 | |||||
| 7 | W11562216 | Heat Shield (Replaces: W11377819) |
|
$ 46.55 | |||||
| 8 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 9 | 2219077 | Clip, Harness |
|
$ 64.24 | |||||
| 10 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 11 | W11625681 | Harness, Unit (Replaces: W11430967) |
|
$ 113.83 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 13 | W11605794 | Bracket, Condenser Fan (Replaces: W11509373) |
|
Immediately | $ 82.52 | ||||
| 14 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 8.51 | |||||
| 15 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 37.83 | ||||
| 16 | W10815861 | Clip, Bottom Cover |
|
$ 15.80 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 58.86 | ||||
| 20 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 21 | W11340313 | Bracket, Evaporator |
|
$ 75.36 | |||||
| 22 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W11505535) |
|
Immediately | $ 185.05 | ||||
| 24 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring⢠Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 25 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 28 | W11580057 | Compressor (also Order The Following Lokring⢠Parts) (Replaces: W11663223) |
|
Immediately | $ 400.16 | ||||
| 29 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 101.49 | ||||
| 30 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 31 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 23.16 | |||||
| 32 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 14.77 | ||||
| 33 | W11756841 | Tube, Drain (Replaces: W11577795) |
|
- | |||||
| 24A | W11504445 | 5/4 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 28.92 | ||||
| 24B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 28A | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 28B | W11578570 | Connector (7 Mm To 4.5 Mm, Brass) (high Side To Condenser) (Replaces: W11574641) |
|
Immediately | $ 64.29 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| 3A | W11578570 | Connector (7 Mm To 4.5 Mm, Brass) (high Side To Condenser) (Replaces: W11574641) |
|
Immediately | $ 64.29 | ||||
| 3B | W11506624 | 4 Nk Ms 00 (suction Line To Condenser) |
|
Immediately | $ 20.94 | ||||
| 5A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 46.52 | ||||
| 5B | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.88 | ||||
| NI | ARI72C650DD6F72DFB3A5CCCFD96E652CB3 | Refrigerant Charge 47 Grams (r600a) |
|
- |
