SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Door Parts


08 - Internal Microwave Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11655510		Owner's Manual		Appelez-nous	-

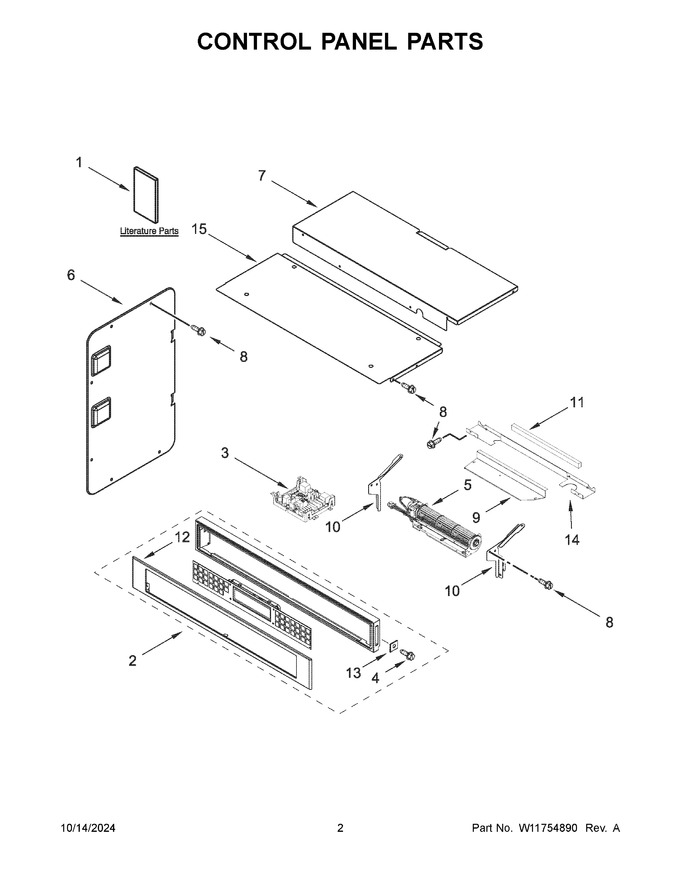

2	W11755759		Control Panel Assembly (includes Overlay) (stainless)   (Replaces: W11739282)		Appelez-nous	-
3	W11448962		Appliance Manager, Copernicus   (Replaces: W11249218)			Immediately	$ 325.47
4	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	W10655467		Chassis, Combo Side				$ 83.02
7	W10588732		Cover, Top Back 30 In Chassis				$ 225.86
8	7101P42660		Screw		Appelez-nous	-
9	W10681157		Cover, Combo Blower		Appelez-nous	-
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W11749090		Skin, Control Panel (stainless)   (Replaces: W11733545)		Appelez-nous	-
13	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W10318158		Chassis, Cover Top Front 30 In		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11618058		Quick Start Guide		Appelez-nous	-
1B	W11382178		Tech Manual		Appelez-nous	-
1C	W11340885		Wiring Diagram		Appelez-nous	-
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	W11229448		Harness, Communication			Immediately	$ 235.39
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	W11602626		Bag, Hardware   (Replaces: W11394923)				$ 23.47
NI	W11731943		Harness, Main   (Replaces: W11659368)			Immediately	$ 334.06
NI	4448664		Clamp, Conduit				$ 21.41
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.55
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11256627		Harness, Signal			Immediately	$ 132.03
