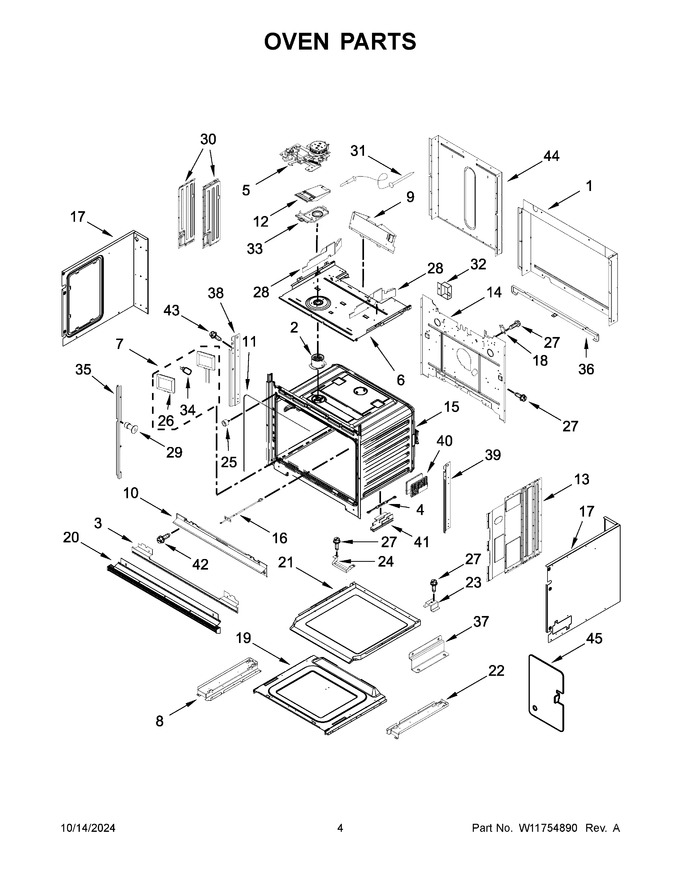

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11171004 | Cover, Combo Chassis Back Duct |
|
$ 71.00 | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W11085298) |
|
$ 24.32 | |||||
| 3 | W11714646 | Trim, Bottom Vent (black) (Replaces: W11624689) |
|
$ 86.03 | |||||
| 4 | W11598152 | Spacer, Base (Replaces: W11558603) |
|
Immediately | $ 17.28 | ||||
| 5 | W11811612 | Latch, Motorized (Replaces: W11655005) |
|
Immediately | $ 66.53 | ||||
| 6 | W11168071 | Top, Chassis |
|
- | |||||
| 7 | W11292252 | Light Assembly (Replaces: W11205574) |
|
Immediately | $ 102.36 | ||||
| 8 | W10283020 | Support, Base (left) |
|
- | |||||
| 9 | W10904163 | Deflector, Blower |
|
Immediately | $ 161.70 | ||||
| 10 | W11743956 | Vent, Combo Center (Replaces: W11518347) |
|
$ 163.13 | |||||
| 11 | W11692454 | Gasket (Replaces: W11608108) |
|
$ 139.92 | |||||
| 12 | W11256424 | Cover, Vent Exhaust |
|
- | |||||
| 13 | W11165274 | Side, Chassis |
|
$ 77.13 | |||||
| 14 | W11223327 | Back, Chassis |
|
- | |||||
| 15 | ARI221486ECAEC93F8B8C6C8EF9CFFD9E68 | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | W11598120 | Probe, Sensor (Replaces: W11346074) |
|
Immediately | $ 39.76 | ||||
| 17 | W11171909 | Side, Combo Chassis (left) |
|
$ 69.48 | |||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W11598115 | Base, Chassis (Replaces: W11135103) |
|
$ 72.25 | |||||
| 20 | W11648980 | Bottom Vent Assembly (stainless) (Replaces: W11467754) |
|
Immediately | $ 185.39 | ||||
| 21 | W11244446 | Duct, Bottom Chassis |
|
$ 66.90 | |||||
| 22 | W10283021 | Support, Base (right) |
|
- | |||||
| 23 | W11135135 | Support, Air Channel |
|
$ 34.43 | |||||
| 24 | W11731183 | Spacer, Bottom Chassis Duct (Replaces: W11135125) |
|
$ 37.00 | |||||
| 25 | W11598125 | Bumper And Screw (Replaces: W11166315) |
|
$ 22.26 | |||||
| 26 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 91.74 | |||||
| 27 | 7101P42660 | Screw |
|
- | |||||
| 28 | W11186391 | Deflector, Chassis (left) |
|
- | |||||
| 29 | W11754870 | Rivet (black) (Replaces: W11696855) |
|
- | |||||
| 30 | W11598150 | Cover, Suction (left) (Replaces: W11167419) |
|
$ 70.53 | |||||
| 31 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 32 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 33 | W11256423 | Base, Vent Exhaust |
|
- | |||||
| 34 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 92.48 | ||||
| 35 | W11235457 | Trim, Side (black (left)) |
|
$ 75.92 | |||||
| 36 | W10283022 | Support, Crossbar |
|
$ 77.45 | |||||
| 37 | W10283024 | Side, Bracket |
|
$ 75.10 | |||||
| 38 | W11627410 | Siderail, Combo (left) |
|
$ 58.76 | |||||
| 39 | W11627411 | Siderail, Combo (right) |
|
$ 56.77 | |||||
| 40 | W11598170 | Foot, Base (Replaces: W11245118) |
|
$ 27.66 | |||||
| 41 | W11598169 | Foot, Chassis (left) (Replaces: W11245114) |
|
$ 28.29 | |||||
| 42 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 7.19 | ||||
| 43 | 7101P63360 | Screw (black) |
|
- | |||||
| 44 | W11134657 | Duct, Lower Chassis Back |
|
- | |||||
| 45 | W11533682 | Cover, Wifi |
|
- | |||||
| 17A | W11171919 | Side, Combo Chassis (right) |
|
- | |||||
| 28A | W11186398 | Deflector, Chassis (right) |
|
- | |||||
| 30A | W11598151 | Cover, Suction (right) (Replaces: W11186675) |
|
$ 70.53 | |||||
| 35A | W11235458 | Trim, Side (black (right)) |
|
$ 75.92 | |||||
| 41A | W11598168 | Foot, Chassis (right) (Replaces: W11245116) |
|
$ 28.11 | |||||
| NI | W11602627 | Insulation, Cavity (Replaces: W11234758) |
|
$ 78.58 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688564 | Insulation, Wrap (Replaces: W11188284) |
|
- |
