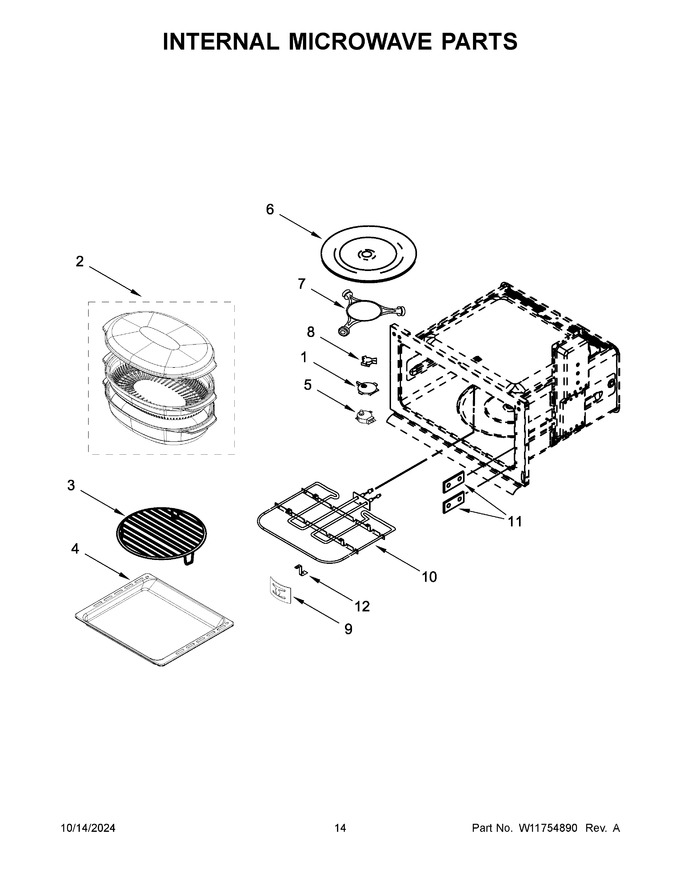

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676353 | Adapter, Turntable Motor (Replaces: 461967753742) |
|
Immediately | $ 21.77 | ||||
| 2 | W10796139 | Steamer |
|
$ 33.18 | |||||
| 3 | W11175831 | Rack, Low Convection (Replaces: W10748279) |
|
$ 42.74 | |||||
| 4 | W11512489 | Plate, Baking (Replaces: W10750839) |
|
$ 92.91 | |||||
| 5 | W10911403 | Motor, Turntable (Replaces: 461967848971) |
|
Immediately | $ 117.53 | ||||
| 6 | W11373838 | Turntable (Replaces: W11340343) |
|
Immediately | $ 78.50 | ||||
| 7 | W11110134 | Ring, Turntable (Replaces: W10367316) |
|
Immediately | $ 74.00 | ||||
| 8 | W11179756 | Drive, Turntable (Replaces: W10545578) |
|
Immediately | $ 25.31 | ||||
| 9 | W11724411 | Support, Spring Lock Grill (Replaces: 252262898008) |
|
Immediately | $ 57.68 | ||||
| 10 | WPW10387651 | Element, Grill (Replaces: W10387651) |
|
$ 341.75 | |||||
| 11 | W10915651 | Plate, Cover (Replaces: 461967451001) |
|
Immediately | $ 84.67 | ||||
| 12 | W11724411 | Support, Element (Replaces: 461967753871) |
|
Immediately | $ 57.68 |
