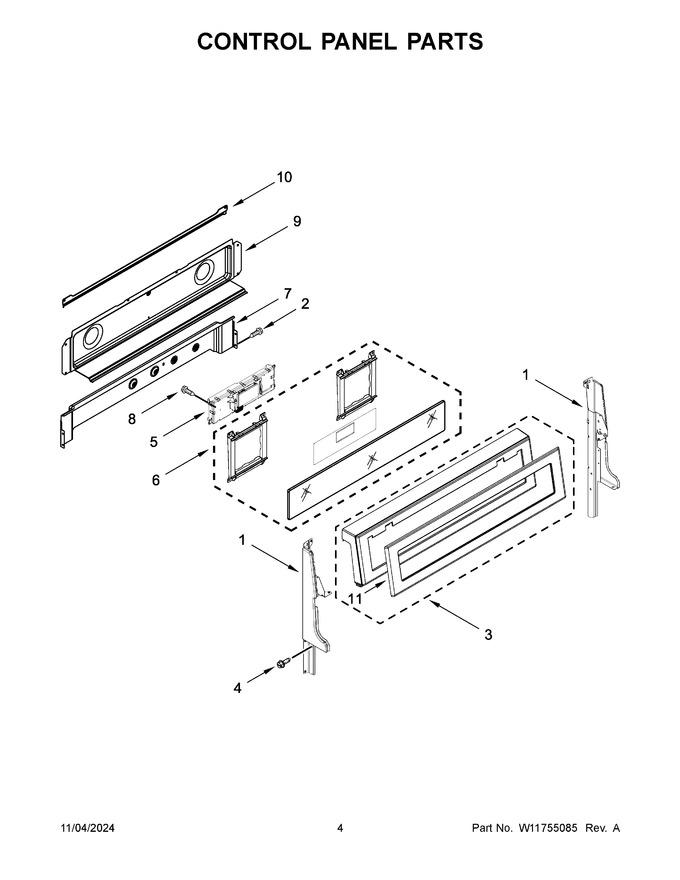

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left)) |
|
$ 92.84 | |||||
| 2 | 7101P42660 | Screw |
|
- | |||||
| 3 | W11164063 | Console (stainless) (Replaces: W10645848) |
|
Immediately | $ 518.62 | ||||
| 4 | 7101P63460 | Screw |
|
- | |||||
| 5 | W11598459 | Control, Maxwell Electronic (Replaces: W10895091) |
|
$ 383.99 | |||||
| 6 | W10692425 | Assembly, User Interface (includes Light Feature) (black) |
|
$ 897.07 | |||||
| 7 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 8 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 9 | W10776098 | Cover, Backguard |
|
$ 135.81 | |||||
| 10 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 96.60 | |||||
| 11 | ARI1C00E9EEC205AEB838A92166625CD731 | Skin, Control Panel (not Serviced) |
|
- | |||||
| 1A | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 |
