SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts

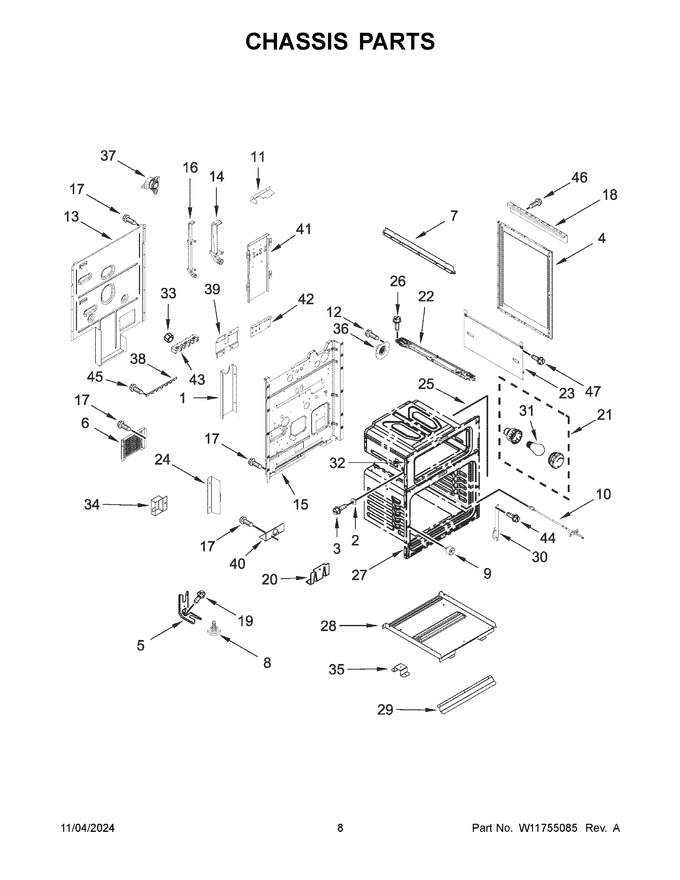

05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10332459		Shield, Heat		Appelez-nous	-
2	W11594028		Spacer, Side Panel   (Replaces: W11479123)				$ 14.30
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 7.52
4	W11594130		Panel, Side (black)   (Replaces: W11477310)				$ 185.08
5	3801F65651		Bracket, Anti-tip		Appelez-nous	-
6	W10312612		Cover, Access (terminal Block)				$ 123.26
7	W10357697		Bracket, Side Panel				$ 23.18
8	W11665456		Foot, Leveler   (Replaces: W10414238)			Immediately	$ 28.11
9	W10105790		Bumper & Screw				$ 7.06
10	7430P04460		Sensor, Oven		Appelez-nous	-
11	W10268558		Cover, Lower Wire		Appelez-nous	-
12	7101P43460		Screw		Appelez-nous	-
13	WPW10261386		Cover, Main Wire   (Replaces: W10261386)				$ 185.43
14	W10337391		Tube, Vent (upper)				$ 68.82
15	W10668730		Back, Main			Immediately	$ 217.85
16	WPW10323793		Tube, Vent (lower)   (Replaces: W10323793)				$ 109.38
17	7101P42660		Screw		Appelez-nous	-
18	W10319087		Bracket, U Channel				$ 79.14
19	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
20	W10863342		Support, Lower Oven		Appelez-nous	-
21	W11594027		Light Assembly   (Replaces: W11544370)			Immediately	$ 87.01
22	W11166856		Lock, Rear Mount   (Replaces: W10683517)			Immediately	$ 308.99
23	W10538516		Shield, Side Insulation				$ 135.73
24	W10268559		Cover, Lower Wire		Appelez-nous	-
25	W11594029		Gasket, Oven Door (upper)   (Replaces: W11491754)				$ 100.94
26	7101P37560		Screw		Appelez-nous	-
27	W11595912		Front, Main (lower)   (Replaces: W11515373)		Appelez-nous	-
28	W10548601		Pan, Element				$ 147.60
29	W10253470		Bracket, Retaining				$ 77.28
30	W10410463		Cover, Hinge (left)				$ 94.22
31	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
32	W11515376		Front, Main (upper)		Appelez-nous	-
33	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 7.76
34	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
35	W10260545		Clip, Retaining				$ 13.16
36	W10322408		Adapter, Vent Tube				$ 122.89
37	7403P89960		Switch, High Limit		Appelez-nous	-
38	8036P01260		Shield, Power Cord		Appelez-nous	-
39	7003P10460		Insulator, Heat Shield		Appelez-nous	-
40	W10190166		Bracket, Power Supply				$ 9.24
41	W10261388		Bracket, Terminal				$ 69.85
42	W10332449		Shield, Cord				$ 69.90
43	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 30.13
44	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
45	WP488488		Screw   (Replaces: 489290)				$ 7.68
46	7101P63360		Screw (black)		Appelez-nous	-
47	W10443110		Screw			Immediately	$ 14.52
25A	W11594140		Gasket, Oven Door (lower)   (Replaces: W11491753)				$ 100.97
30A	W10410461		Cover, Hinge (right)				$ 90.34
NI	WPW10204079		Insulation, Middle   (Replaces: W10204079)				$ 113.07
NI	W11685361		Insulation, Main Front Strip   (Replaces: W10204085)				$ 33.85
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10271637		Insulation, Floor   (Replaces: W10271637)				$ 106.17
NI	W11594030		Insulation, Wrapper   (Replaces: W11462751)		Appelez-nous	-
NI	WPW10322111		Insulation, Back   (Replaces: W10322111)				$ 132.95
NI	W11688548		Insulation, Hidden Bake Pouch   (Replaces: W11463064)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
