Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11382204 Owner's Manual Appelez-nous -
2 W11598199 Assembly, Console (stainless)   (Replaces: W11304146) Appelez-nous -
3 W11294388 Control (copernicus)   (Replaces: W10850871) Special Order $ 474.19

4 W11294389 Appliance Manager, Expansion   (Replaces: W10890118) Appelez-nous -
5 W11598119 Blower   (Replaces: W11397930) In-Stock Immediately $ 388.25

6 W10655467 Chassis, Combo Side Special Order $ 83.02

7 W10588732 Cover, Top Back 30 In Chassis Special Order $ 225.86

8 7101P42660 Screw Appelez-nous -
9 WP4450118 Nut   (Replaces: 4450118) Special Order $ 8.78

10 W10655463 Bracket, Blower (left) Appelez-nous -
11 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 8.14

12 W10588740 Skin, Control Panel (stainless) Special Order $ 214.05

13 W11171004 Cover, Combo Chassis Back Duct Special Order $ 74.55

14 W11166802 Divider, Chassis Back Appelez-nous -
15 W10318158 Chassis, Cover Top Front 30 In Appelez-nous -
16 W10681157 Cover, Combo Blower Appelez-nous -
17 W11602625 Screw (black)   (Replaces: W11339492) Special Order $ 14.72

18 W11537624 Antenna   (Replaces: W11409842) Special Order $ 106.06

10A W10655462 Bracket, Blower (right) Appelez-nous -
12A W10776407 Skin, Control Panel (black Stainless) Special Order $ 285.61

1A W11382210 Quick Start Guide Appelez-nous -
1B W11423746 Tech Sheet Appelez-nous -
2A W11598196 Assembly, Console (black Stainless)   (Replaces: W11304148) Appelez-nous -
NI W11356990 Harness, Communication Special Order $ 224.43

NI W11659375 Harness, Main Appelez-nous -
NI W11602626 Bag, Hardware   (Replaces: W11394923) Special Order $ 23.47

NI W11319486 Harness, Signal Appelez-nous -
NI W11727826 Harness, Door Latch   (Replaces: W11264646) Special Order $ 61.80

NI W11356991 Harness, Ground Console Combo Appelez-nous -
NI ARI7C4B781E09F4C135E8A56A812FBF5A4D Following Parts Not Illustrated Appelez-nous -
NI 4448664 Clamp, Conduit Special Order $ 21.41

NI 4450800 Screw, Grounding Special Order $ 13.47

NI 16515 Clip, Harness   (Replaces: 313438) Special Order $ 20.53


    View Diagram in Separate Window     Print Icon   Print Part List

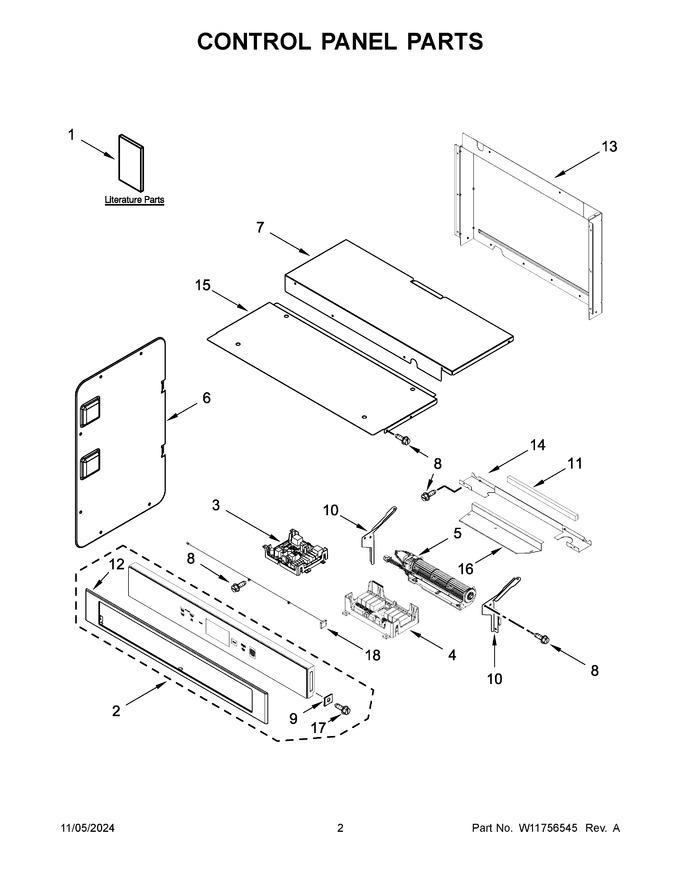

Diagram for KOCE900HSS24
