Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11598122 Element, Broil   (Replaces: W11238159) Special Order $ 130.69

2 WPW10554526 Rack, Oven   (Replaces: W10554526) In-Stock Immediately $ 182.96

3 W10318198 Tray, Hidden Bake Special Order $ 195.83

4 7101P43460 Screw Appelez-nous -
5 7101P42660 Screw Appelez-nous -
6 W10282957 Crossbar, Hidden Bake Tray Special Order $ 47.47

7 W11545804 Element, Bake   (Replaces: W11292248) In-Stock Immediately $ 102.53

8 W11598121 Reflector, Broil   (Replaces: W11235537) Special Order $ 62.19

9 W11602628 Convect Motor Assembly   (Replaces: W11244895) Special Order $ 400.44

10 W11548755 Nut, Acorn (lh)   (Replaces: W11433702) Special Order $ 15.38

11 W11548753 Blade, Fan   (Replaces: W11425715) In-Stock Immediately $ 157.63

12 W11678579 Element, Convection   (Replaces: W10546519) In-Stock Immediately $ 121.00

13 W11234763 Baffle, Bow Tie   (Replaces: W10918895) Special Order $ 231.30

14 W11291186 Screw   (Replaces: W11236393) Appelez-nous -
15 W10588737 Shield, Broil Front Special Order $ 105.40

16 W10850807 Screw   (Replaces: W10720084) Special Order $ 7.77

17 W10739592 Screw Appelez-nous -
18 W11291122 Cover, Connector   (Replaces: W10903893) Appelez-nous -
19 W11291121 Connector, Plug Assembly Accessory   (Replaces: W10903862) Appelez-nous -
20 W11307587 Plate, Cavity Backer Appelez-nous -
21 WPY706189 Screw   (Replaces: W11249635) In-Stock Immediately $ 7.55

22 WP9755542 Probe, Temperature   (Replaces: 9755542) In-Stock Immediately $ 92.12

23 W11602629 Plate, Convect Motor   (Replaces: W11251715) Appelez-nous -
24 W11706806 Insulation, Convect Motor   (Replaces: W11251716) Appelez-nous -
25 W11602630 Cover, Convect Plate   (Replaces: W11235449) Appelez-nous -
26 W11821374 Jack, Meat Probe   (Replaces: W11252826) Special Order $ 77.18

27 W11231343 Nut, Locking   (Replaces: W11033111) Special Order $ 13.47


    View Diagram in Separate Window     Print Icon   Print Part List

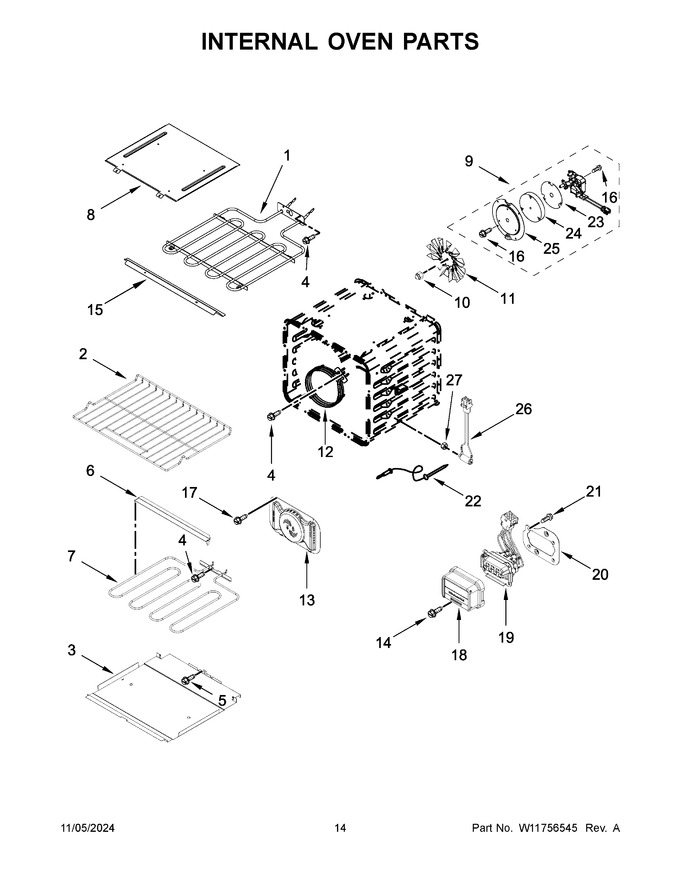

Diagram for KOCE900HSS24
