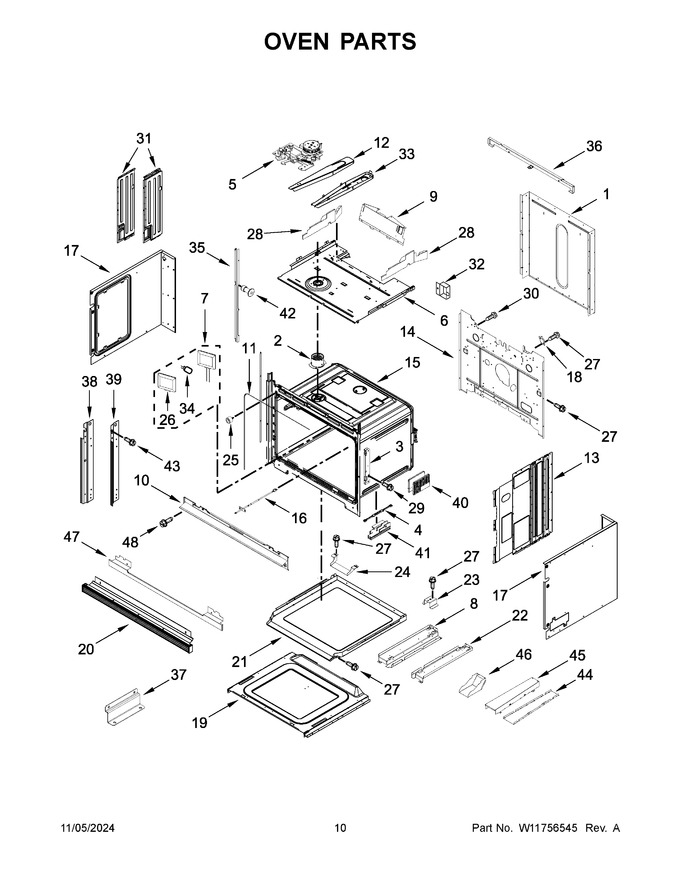

1	W11134657		Duct, Lower Chassis Back		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 25.54
3	W11712405		Receiver, Hinge (left)   (Replaces: W11239070)			Immediately	$ 89.40
4	W11598152		Spacer, Base   (Replaces: W11558603)			Immediately	$ 18.14
5	W11811612		Latch, Motorized   (Replaces: W11655005)			Immediately	$ 69.86
6	W11168071		Top, Chassis		Appelez-nous	-
7	W11292252		Light Assembly   (Replaces: W11205574)			Immediately	$ 107.48
8	W10283020		Support, Base (left)		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 169.79
10	W11743956		Vent, Combo Center   (Replaces: W11518347)				$ 171.29
11	W11692454		Gasket   (Replaces: W11608108)				$ 146.92
12	W11256421		Cover, Top Back Exhaust		Appelez-nous	-
13	W11165274		Side, Chassis				$ 80.99
14	W11627550		Back, Chassis   (Replaces: W11244441)		Appelez-nous	-
15	ARI221486ECAEC93F8B8C6C8EF9CFFD9E68		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W11598120		Probe, Sensor   (Replaces: W11346074)			Immediately	$ 41.75
17	W11171909		Side, Combo Chassis (left)				$ 72.95
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11598115		Base, Chassis   (Replaces: W11135103)				$ 75.86
20	W11821375		Bottom Vent Assembly (stainless)   (Replaces: W11369892)		Appelez-nous	-
21	W11244446		Duct, Bottom Chassis				$ 70.25
22	W10283021		Support, Base (right)		Appelez-nous	-
23	W11135135		Support, Air Channel				$ 36.15
24	W11731183		Spacer, Bottom Chassis Duct   (Replaces: W11135125)				$ 38.85
25	W11598125		Bumper And Screw   (Replaces: W11166315)				$ 23.37
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 96.33
27	7101P42660		Screw		Appelez-nous	-
28	W11186391		Deflector, Chassis (left)		Appelez-nous	-
29	WPW10254050		Screw   (Replaces: W10254050)				$ 9.22
30	WP693995		Screw   (Replaces: W10142292)			Immediately	$ 7.55
31	W11598150		Cover, Suction (left)   (Replaces: W11167419)				$ 74.06
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W11256420		Base, Top Back Exhaust		Appelez-nous	-
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
35	W11235457		Sidetrim, Bended (black (left))				$ 79.72
36	W10283022		Support, Crossbar				$ 81.32
37	W10283024		Side, Bracket				$ 78.86
38	W11627410		Siderail, Combo (left)				$ 61.70
39	W11627411		Siderail, Combo (right)				$ 59.61
40	W11598170		Foot, Base   (Replaces: W11245118)				$ 29.04
41	W11598169		Foot, Chassis (left)   (Replaces: W11245114)				$ 29.70
42	W11754870		Rivet (black)   (Replaces: W11696855)		Appelez-nous	-
43	7101P63360		Screw (black)		Appelez-nous	-
44	W11256430		Base, Lower Back Exhaust		Appelez-nous	-
45	W11256431		Cover, Lower Back Exhaust		Appelez-nous	-
46	W11256432		Deflector, Lower Back Exhaust		Appelez-nous	-
47	W11598135		Trim, Bottom Vent (black)   (Replaces: W11356753)			Immediately	$ 76.24
48	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.55
17A	W11171919		Side, Combo Chassis (right)		Appelez-nous	-
20A	W11598195		Bottom Vent Assembly (black Stainless)   (Replaces: W11410028)		Appelez-nous	-
28A	W11186398		Deflector, Chassis (right)		Appelez-nous	-
31A	W11598151		Cover, Suction (right)   (Replaces: W11186675)				$ 74.06
35A	W11235458		Sidetrim, Bended (black (right))				$ 79.72
3A	W11712406		Receiver, Hinge (right)   (Replaces: W11239072)				$ 89.29
41A	W11598168		Foot, Chassis (right)   (Replaces: W11245116)				$ 29.52
NI	W11688564		Insulation, Wrap   (Replaces: W11188284)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11602627		Insulation, Cavity   (Replaces: W11234758)				$ 82.51
