View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

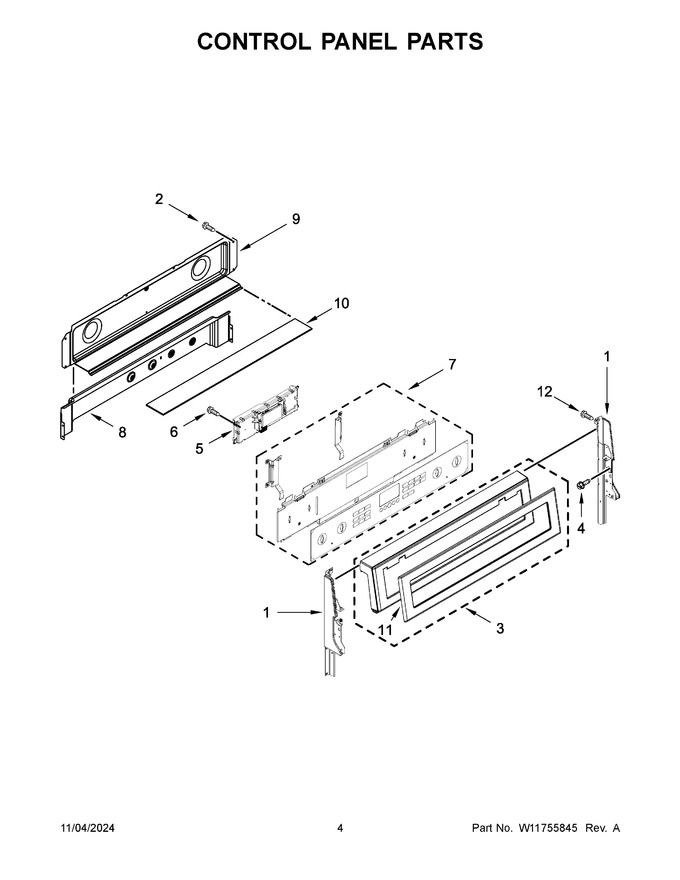

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Upper Door Parts
07 - Lower Door Parts
08 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left)) |
|
$ 92.84 | |||||
| 2 | 7101P42660 | Screw |
|
- | |||||
| 3 | W11838051 | Assembly, Console (stainless) (Replaces: W11024861) |
|
$ 594.48 | |||||
| 4 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 5 | W11620683 | Control, Maxwell (Replaces: W11541199) |
|
$ 473.82 | |||||
| 6 | 7101P43460 | Screw |
|
- | |||||
| 7 | W11160335 | Assembly, Membrane (including Bracket) (stainless) (Replaces: W10903066) |
|
$ 365.40 | |||||
| 8 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 9 | W10776098 | Cover, Backguard |
|
$ 135.81 | |||||
| 10 | W11684874 | Insulation, Wire Cover (Replaces: W10309232) |
|
$ 35.56 | |||||
| 11 | ARI499AC7402D7B2FAF215240B9E30A5524 | Skin, Console (not Serviced) |
|
- | |||||
| 12 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 | |||||
| 1A | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 |
