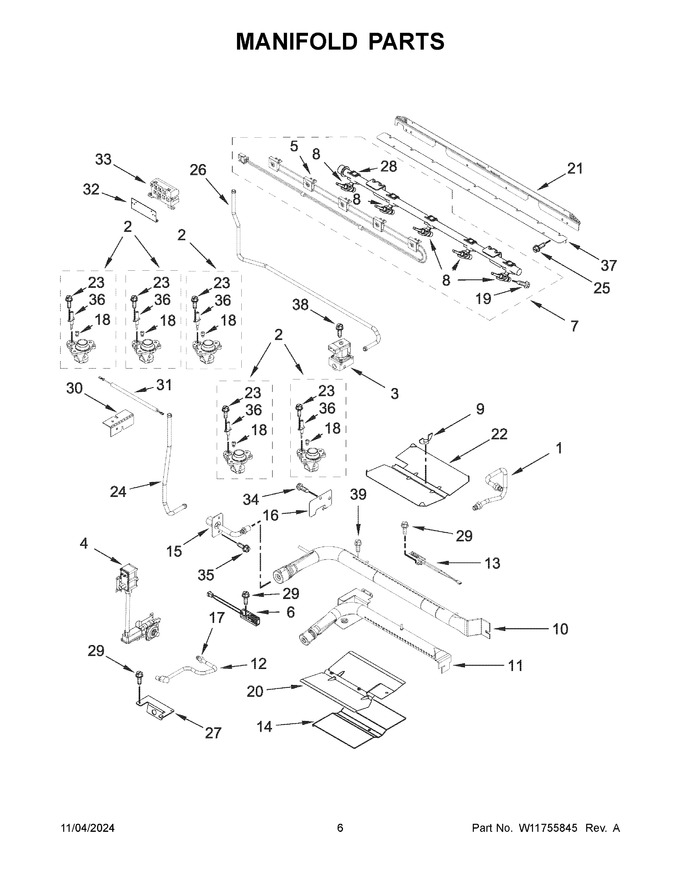

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319002		Tubing, Broil				$ 190.79
2	W11230935		Holder, Orifice (17k) (left Front)   (Replaces: W10643268)				$ 111.86
3	W10911971		Valve, Shut Off   (Replaces: W10368614)				$ 375.49
4	WPW10546238		Valve/regulator   (Replaces: W10546238)			Immediately	$ 333.86
5	W11772398		Harness, Switch   (Replaces: W10664240)			Immediately	$ 86.33
6	WPW10324738		Ignitor, Gas   (Replaces: W10324738)			Immediately	$ 329.05
7	W11684563		Assembly, Manifold   (Replaces: W10806878)				$ 318.66
8	W11740802		Valve (17k) (left Front)   (Replaces: W10718180)			Immediately	$ 95.22
9	7103P03060		Nut, Wing		Appelez-nous	-
10	W11245221		Burner, Broiler   (Replaces: W11191260)				$ 222.29
11	W11174122		Burner, Bake   (Replaces: W11105585)				$ 213.50
12	W10342662		Orifice, Bake (upper)				$ 210.08
13	W11596211		Ignitor, Bake   (Replaces: W11532055)			Immediately	$ 93.36
14	W10298865		Shield, Bake		Appelez-nous	-
15	W11435700		Fitting, Broiler				$ 89.09
16	4005F42145		Cover, Ignitor Wire		Appelez-nous	-
17	7103P19560		Nut, Mounting		Appelez-nous	-
18	W11160344		Orifice (left Front)   (Replaces: W10639161)				$ 100.14
19	W10295997		Screw, Valve				$ 7.32
20	W10272528		Baffle, Bake				$ 294.68
21	WPW10276470		Bracket, Manifold Rear Cover   (Replaces: W10343062)				$ 89.33
22	3601F35845		Baffle, Broil Burner		Appelez-nous	-
23	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
24	W10524331		Tubing (supply Regulator To Shutoff)				$ 48.73
25	7101P65360		Screw		Appelez-nous	-
26	W10642388		Tubing (supply Shutoff To Manifold)		Appelez-nous	-
27	W11756017		Bracket, Orifice   (Replaces: W10272520)		Appelez-nous	-
28	W10949105		Bracket, Saddle Valve				$ 22.75
29	7101P28260		Screw		Appelez-nous	-
30	W10324366		Holder, Electrode Extension		Appelez-nous	-
31	W10636384		Extension, Electrode				$ 140.05
32	W10319059		Bracket, Spark Module		Appelez-nous	-
33	7431P05360		Module, Spark		Appelez-nous	-
34	7101P43460		Screw		Appelez-nous	-
35	7101P50260		Screw		Appelez-nous	-
36	W11208293		Electrode, Spark (left Front, Left Rear, Right Front, Right Rear)   (Replaces: W10565365)				$ 66.18
37	WPW10276466		Bracket, Manifold (bottom)   (Replaces: W10276466)				$ 108.19
38	7101P62460		Screw		Appelez-nous	-
39	7101P36060		Screw		Appelez-nous	-
12A	W10342661		Orifice, Bake (lower)				$ 199.64
18A	W11160345		Orifice (left Rear And Right Rear)   (Replaces: W10407673)			Immediately	$ 104.01
18B	W11160346		Orifice (center)   (Replaces: W10324014)				$ 100.14
18C	W11160347		Orifice (right Front)   (Replaces: W10407675)				$ 100.14
2A	W10643269		Holder, Orifice (5k) (left Rear)				$ 117.98
2B	W10643272		Holder, Orifice (7k) (center)				$ 124.15
2C	W11685612		Holder, Orifice (10k) (right Front)   (Replaces: W10643270)			Immediately	$ 85.69
2D	W10643271		Holder, Orifice (5k) (right Rear)				$ 124.13
36A	W10637673		Electrode, Fish (center)				$ 67.90
8A	W10718182		Valve (5k) (left Rear And Right Rear)				$ 282.01
8B	W10718181		Valve (10k) (right Front And Center)				$ 282.01
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11674161		Kit, Lp Conversion   (Replaces: W11653357)				$ 115.66
NI	W10324646		Insulation, Orifice				$ 91.18
