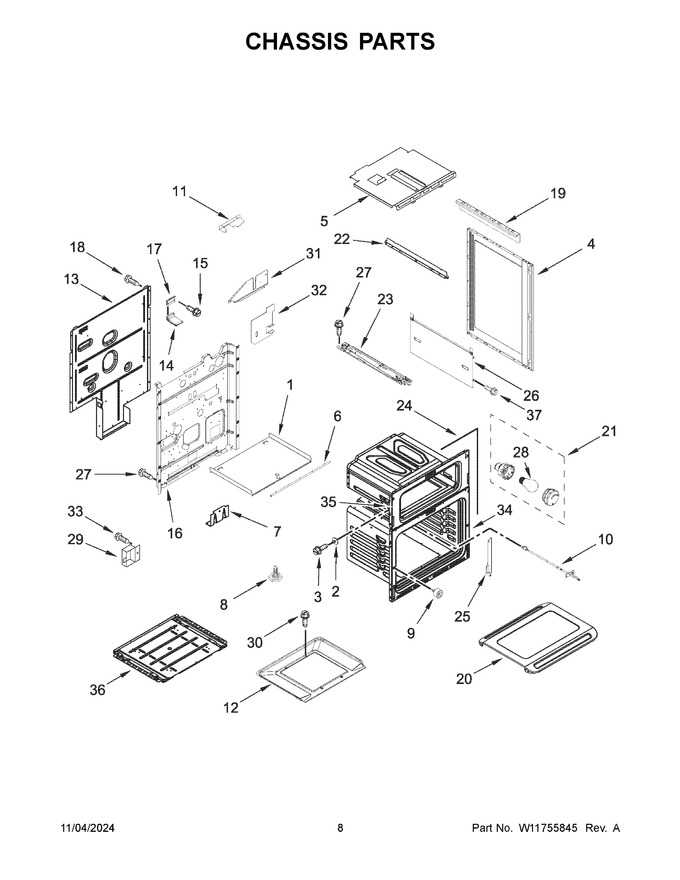

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319038		Shield, Gemini				$ 150.59
2	W11594028		Spacer, Side Panel   (Replaces: W11479123)				$ 15.02
3	WPW10267456		Screw, Shoulder   (Replaces: W10267456)				$ 8.06
4	W11595910		Panel, Side (black)   (Replaces: W11532477)				$ 196.27
5	W10324643		Support, Insulation		Appelez-nous	-
6	W10319000		Gasket, Gemini Oven Shield		Appelez-nous	-
7	W10863342		Support, Lower Oven		Appelez-nous	-
8	W11665456		Foot, Leveler   (Replaces: W10414238)			Immediately	$ 29.52
9	W10105790		Bumper & Screw				$ 7.41
10	7430P04460		Sensor, Oven		Appelez-nous	-
11	W10268558		Cover, Lower Wire		Appelez-nous	-
12	W10777398		Bottom, Oven Drip				$ 220.20
13	WPW10261387		Cover, Main Wire   (Replaces: W10261387)				$ 208.95
14	W11243157		Assembly, Flue (upper)   (Replaces: W11040249)				$ 370.35
15	7101P43460		Screw		Appelez-nous	-
16	W10668728		Back, Main				$ 192.15
17	W10321446		Assembly, Outlet Flue (upper)		Appelez-nous	-
18	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
19	W10319087		Bracket, U Channel				$ 83.10
20	WPW10272546		Bottom, Oven   (Replaces: W10272546)			Immediately	$ 222.79
21	W11594027		Light Assembly   (Replaces: W11544370)			Immediately	$ 87.01
22	W10357697		Bracket, Side Panel				$ 24.34
23	W11166856		Lock, Rear Mount   (Replaces: W10683517)			Immediately	$ 324.44
24	W11507143		Gasket, Oven Door (upper)		Appelez-nous	-
25	W10410463		Cover, Hinge (left)				$ 98.93
26	W10538516		Shield, Side Insulation				$ 142.52
27	7101P42660		Screw		Appelez-nous	-
28	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
29	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
30	WP12992902		Screw   (Replaces: 12992902)				$ 11.91
31	W10626077		Cover, Inner Main Back		Appelez-nous	-
32	W10626078		Cover, Outer Main Back		Appelez-nous	-
33	7101P33860		Screw		Appelez-nous	-
34	W11515372		Front, Main (lower)		Appelez-nous	-
35	W11515375		Front, Main (upper)		Appelez-nous	-
36	W11509400		Base, Chassis		Appelez-nous	-
37	W10443110		Screw			Immediately	$ 15.25
14A	W10272519		Assembly, Flue (lower)		Appelez-nous	-
17A	W10321445		Assembly, Outlet Flue (lower)		Appelez-nous	-
24A	W11594140		Gasket, Oven Door (lower)   (Replaces: W11491753)				$ 106.02
25A	W10410461		Cover, Hinge (right)				$ 94.86
NI	W11685611		(lower) Insulation, Back   (Replaces: W10204081)				$ 123.70
NI	W11684769		(upper) Insulation, Wrapper   (Replaces: W10318910)				$ 126.07
NI	W11688777		(upper) Insulation, Back   (Replaces: W10318918)				$ 75.73
NI	W11688385		(lower) Insulation, Wrapper   (Replaces: W10318911)				$ 127.50
NI	W11684919		(upper) Insulation, Floor   (Replaces: W10344586)				$ 122.44
