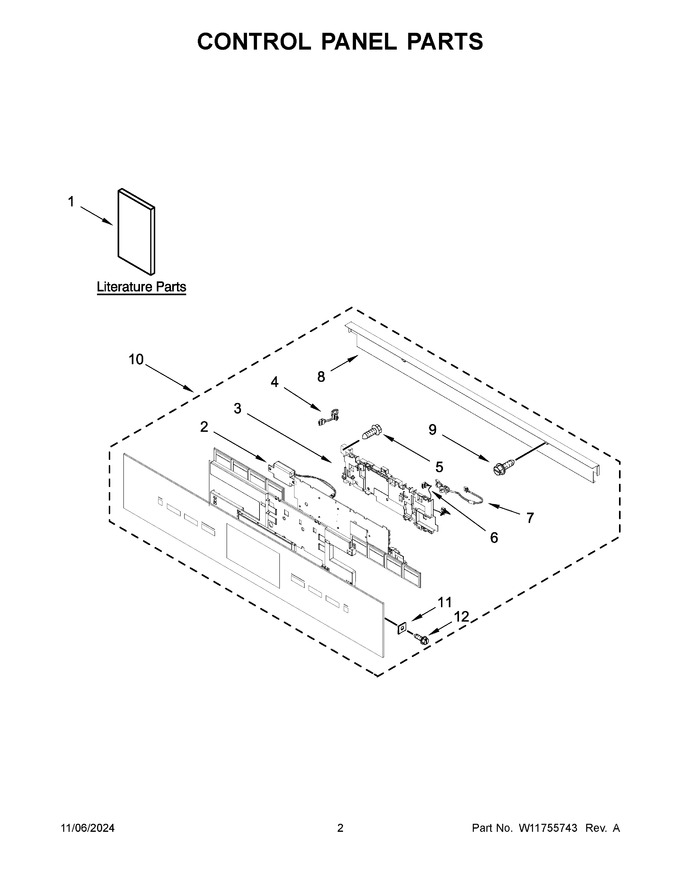

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11653410 | Literature Parts (owner's Manual) |
|
- | |||||
| 2 | W11123146 | Speaker Assembly (Replaces: W10568405) |
|
$ 80.93 | |||||
| 3 | W10668510 | Housing |
|
$ 105.17 | |||||
| 4 | W10566973 | Harness, Keypad (left To Center) |
|
$ 82.19 | |||||
| 5 | W10489172 | Screw |
|
$ 11.98 | |||||
| 6 | W10524350 | Harness, Keypad (right To Center) |
|
$ 78.21 | |||||
| 7 | W10575307 | Jumper Harness, Power Supply |
|
Immediately | $ 173.84 | ||||
| 8 | W10444127 | Cover, 30 In Compliment |
|
$ 130.73 | |||||
| 9 | 7101P42660 | Screw |
|
- | |||||
| 10 | W11598166 | Assembly, Control Panel (black) (Replaces: W11301921) |
|
$ 1,722.79 | |||||
| 11 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 12 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.72 | |||||
| 1A | W11423731 | Literature Parts (quick Start Guide) |
|
- | |||||
| 1B | W11399175 | Literature Parts (tech Sheet) |
|
- | |||||
| NI | W11539494 | Harness, Inverter |
|
$ 43.39 | |||||
| NI | W11578580 | Jumper Harness, Communication (Replaces: W11539527) |
|
$ 30.24 | |||||
| NI | W11578578 | Harness, Interlock (Replaces: W11555168) |
|
Immediately | $ 127.79 | ||||
| NI | W11598162 | Bag, Hardware (Replaces: W11394925) |
|
$ 15.61 | |||||
| NI | W11546965 | Harness, Fan And Turntable (Replaces: W11454022) |
|
$ 78.88 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11356992 | Conduit |
|
$ 223.29 | |||||
| NI | W11356986 | Harness, Communication |
|
Immediately | $ 112.86 | ||||
| NI | W11226264 | Strap, Ground |
|
- |
