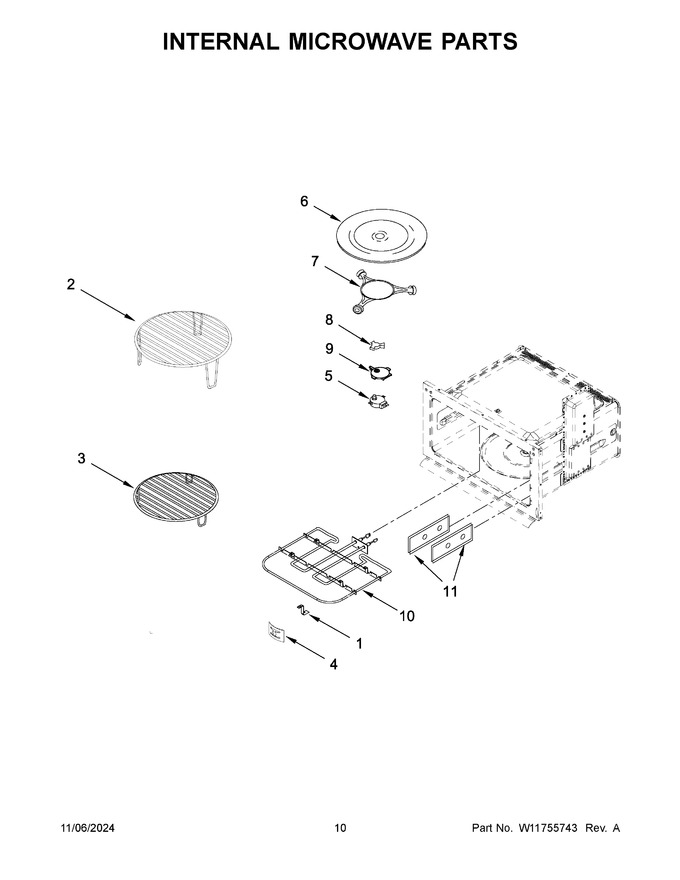

06 - Internal Microwave Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11724411		Support, Element   (Replaces: 461967753871)			Immediately	$ 60.47
2	W10748280		Rack, High Convection				$ 75.14
3	W11175831		Rack, Low Convection   (Replaces: W10748279)				$ 44.88
4	W11724411		Support, Spring Lock Grill   (Replaces: 252262898008)			Immediately	$ 60.47
5	W10911403		Motor, Turntable   (Replaces: 461967848971)			Immediately	$ 117.53
6	W11373838		Turntable   (Replaces: W11340343)			Immediately	$ 78.50
7	W11110134		Ring, Turntable   (Replaces: W10367316)			Immediately	$ 74.00
8	W11179756		Drive, Turntable   (Replaces: W10545578)			Immediately	$ 25.31
9	W11676353		Adapter, Turntable Motor   (Replaces: 461967753742)			Immediately	$ 22.86
10	WPW10387651		Element, Grill   (Replaces: W10387651)				$ 358.84
11	W10915651		Plate, Cover   (Replaces: 461967451001)			Immediately	$ 88.90
