Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7101P42660 Screw Appelez-nous -
2 W10239155 Box, Conduit Special Order $ 103.20

3 W11673269 Support, Microwave Module   (Replaces: W10420960) In-Stock Immediately $ 69.92

4 W11627410 Siderail, Combo (left) Special Order $ 61.70

5 W11676904 Trim, Bottom (black)   (Replaces: W11312201) In-Stock Immediately $ 366.30

6 W10239156 Bracket, Lower (left) Special Order $ 21.24

7 7101P65360 Screw Appelez-nous -
8 W11239807 Trim, Bended Side (left) Special Order $ 81.83

9 W11602623 Screw   (Replaces: W11404000) Special Order $ 14.23

4A W11627411 Siderail, Combo (right) Special Order $ 59.61

6A W10239157 Bracket, Lower (right) Special Order $ 20.73

8A W11239805 Trim, Bended Side (right) Appelez-nous -

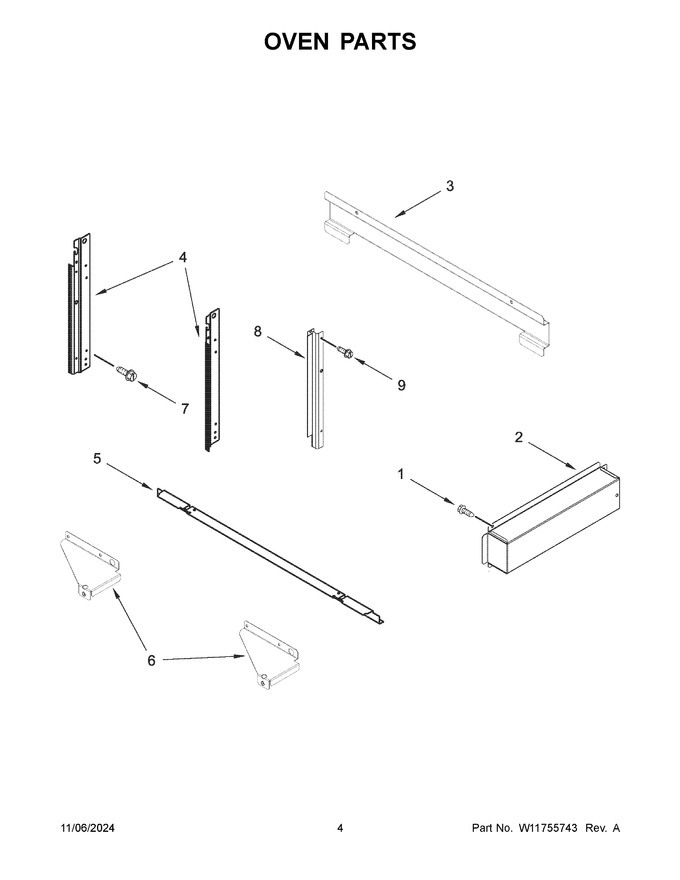

    View Diagram in Separate Window     Print Icon   Print Part List
