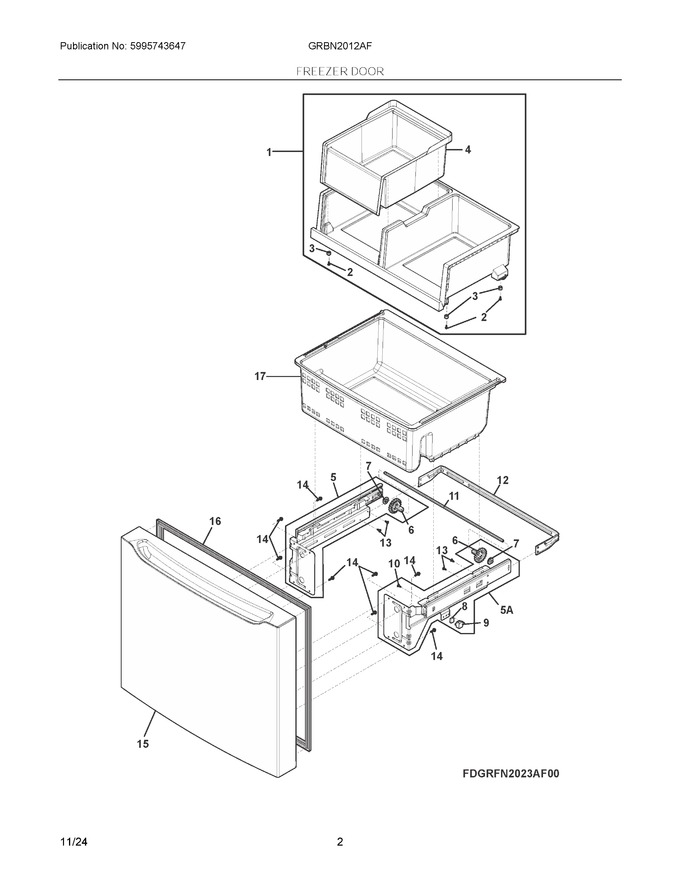

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140236516039 | Drawer Assembly,freezer ,upper , W/ice Container (Replaces: 5304536732) |
|
- | |||||
| 2 | 811949503 | Screw,truss ,4.2 X 13 |
|
$ 3.37 | |||||
| 3 | 5304532074 | Cushion,rubber ,freezer Drw |
|
- | |||||
| 4 | 5304536733 | Ice Container,freezer Drawer |
|
Immediately | $ 85.06 | ||||
| 5 | 5304536710 | Slider Assembly,freezer Drawer ,lh ,w/gear-bearing |
|
$ 182.99 | |||||
| 6 | 140025649017 | Gear,pinion (Replaces: 140025649033) |
|
Immediately | $ 5.09 | ||||
| 7 | 5304519043 | Bearing,pad ,gear |
|
$ 10.95 | |||||
| 8 | 5304519044 | Magnet,reed Switch |
|
Immediately | $ 21.06 | ||||
| 9 | 5304535665 | Support,magnet ,white |
|
$ 3.70 | |||||
| 10 | 5304519084 | Screw,flange Pnhd Phl ,8g X 1/2 |
|
- | |||||
| 11 | 5304536712 | Shaft,telescopic Rail |
|
$ 51.71 | |||||
| 12 | 5304536713 | Bracket,reinforcement |
|
$ 51.87 | |||||
| 13 | 5304519053 | Screw,m3.5 X 6 |
|
- | |||||
| 14 | 811949401 | Screw,trilob ,m5 X 16 |
|
Immediately | $ 5.90 | ||||
| 15 | 140316357023 | Door Assemby,freezer Drawer ,stainless (Replaces: 5304536920) |
|
- | |||||
| 16 | 5304536714 | Gasket,freezer Door |
|
$ 48.63 | |||||
| 17 | 5304536731 | Basket,freezer Drawer |
|
$ 74.36 | |||||
| 5A | 5304536711 | Slider Assembly,freezer Drawer ,rh ,w/gear-magnet |
|
$ 184.99 | |||||
| NIA | 5304519066 | Screw,phil Pn Hd ,m4 X 8 |
|
- |
